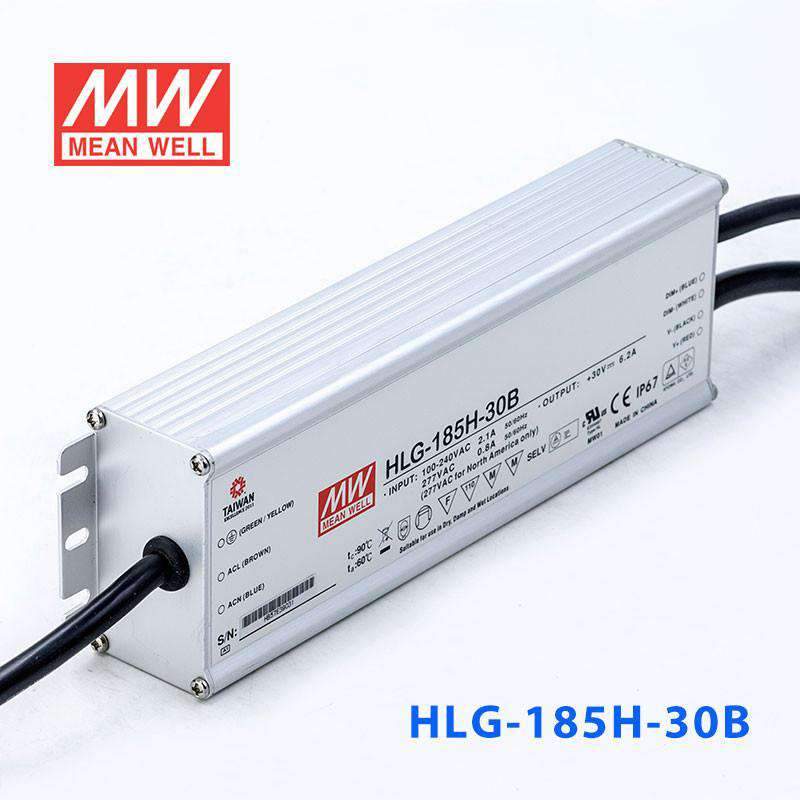

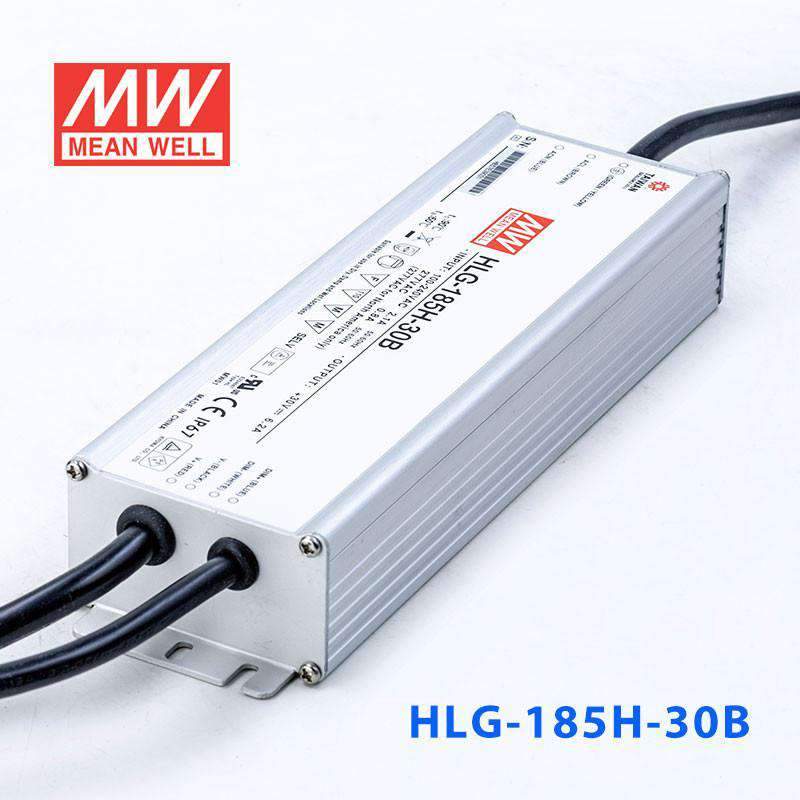

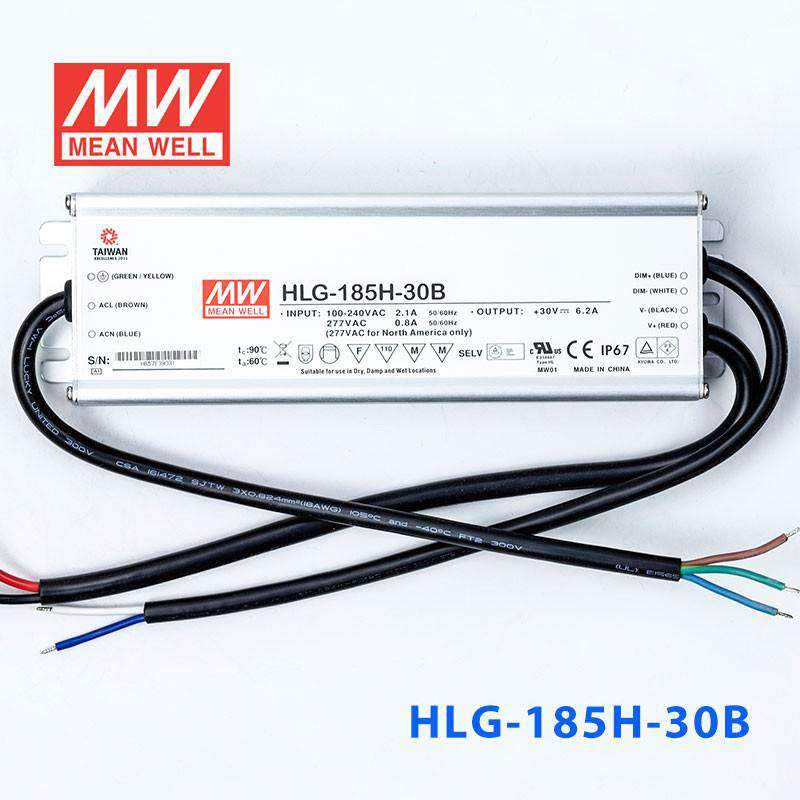

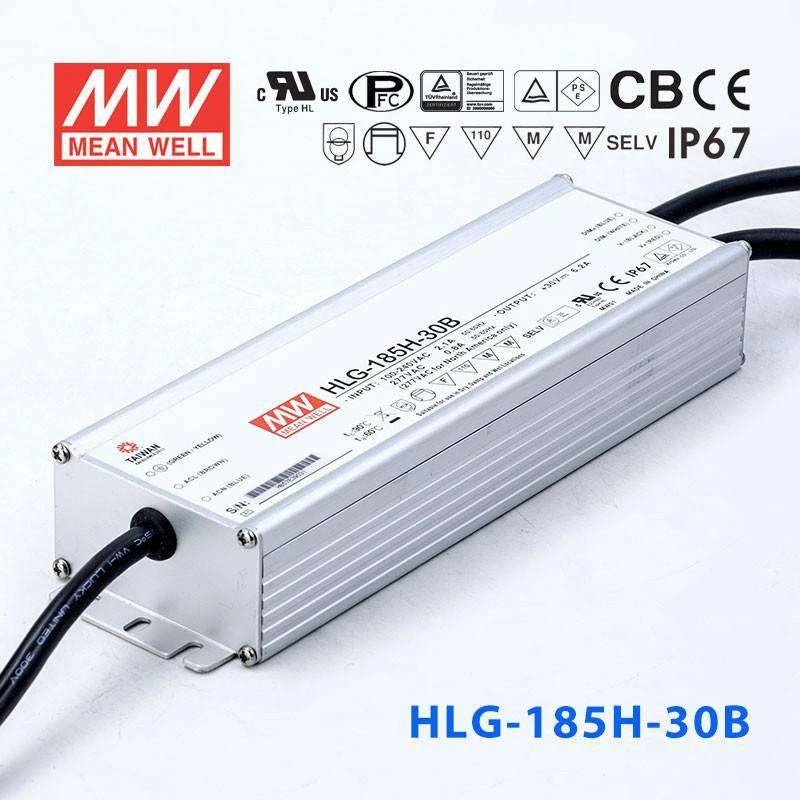

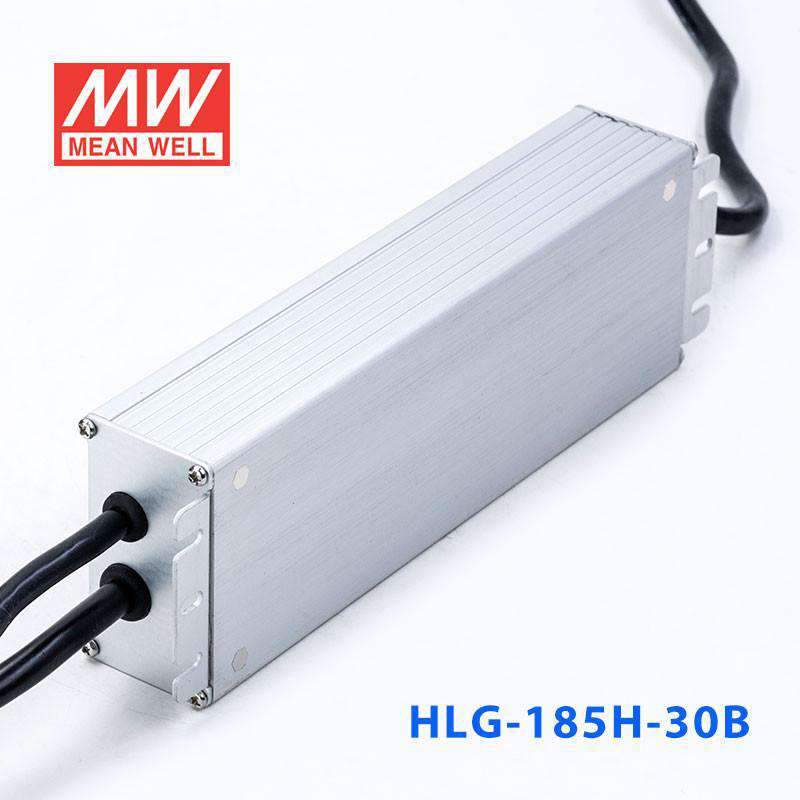

Mean Well HLG-185H-30B Power Supply 185W 30V- Dimmable 6.2A

Name: Mean Well HLG-185H-30B Power Supply 185W 30V- Dimmable 6.2A
Brand: Mean Well
SKU: HLG-185H-30B
Price: 58.37 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Overview

HLG-185H-30B is the 30V output model of this series: rated current 6.2A, rated power 186W, typical efficiency 93.5%. Type B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) (IP67).

HLG-185H series is a 185W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-185H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
IP67 rating for indoor or outdoor installations
Function options: 3 in 1 dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-185H-30BSpecifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE: 30V
CONSTANT CURRENT REGION^Note.4: 15 ~ 30V
RATED CURRENT: 6.2A
RATED POWER: 186W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.) 12V: 1.8A / 115VAC 0.8A / 230VAC 0.7A / 277VAC
AC CURRENT (Typ.) 15V ~ 54V: 2.1A / 115VAC 0.9A / 230VAC 0.8A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=445μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 34 ~ 38V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.9: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13，AS/NZS 61347-1, AS/NZS 61347-2-13 independent;GB/T19510.1,GB/T19510.213 (except for D-type) ; IP65 or IP67; J61347-1, J61347-2-13(except for D-type) , EAC TP TC 004, KC61347-1,KC61347-2-13 (except for D-type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1(except for D-type) ,EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF: 2184.8K hrs min. Telcordia SR-332 (Bellcore) ; 197.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 228*68*38.8mm (L*W*H)
PACKING: 1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-185H-30B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-185H-30B DIMMING OPERATION — DIMMING OPERATION

HLG-185H-30B Illustration (page 5) — Illustration (page 5)

HLG-185H-30B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-185H-30B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-185H-30B Dimensions (mm) — Dimensions (mm)

HLG-185H-30B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-185H-30B datasheetHLG-185H-SPEC.PDF · 2026-07-24 edition PDF Download

Certificates5

UL Certificate (HLG-185H)(EN) PDF Download

TUV Certificate (HLG-185H)(EN) PDF Download

EMC Certificate (HLG-185H)(EN) PDF Download

PSE Certificate (HLG-185H)(EN) PDF Download

CCC Certificate(HLG-185H)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-185H-30B for dimmable 30V outdoor LED lighting in rain-exposed locations?

Yes. The HLG-185H-30B combines a metal housing with IP65/IP67 ingress protection, designed for outdoor applications, with 186W at 30V output and a 1-10V/PWM/resistance dimming input. Waterproof connectors are available for the output cable in wet locations, and brightness can be controlled via an external dimming signal.

Is the HLG-185H-30B suitable for dimmable 30V LED flood lighting on building exteriors?

Yes. At 186W and 30V with dimming capability, it can power exterior flood lights, wall washers, or up-lights where brightness needs to change for different scenes or times of day. The IP65/IP67 ingress protection and -40°C to +90°C case temperature range (with derating at higher temperatures) support year-round outdoor operation.

Can the HLG-185H-30B drive dimmable 30V LED fixtures for outdoor commercial displays?

Yes. The 186W at 30V provides ample power for 30V LED display fixtures, and the dimming input allows brightness adjustment via 1-10V or PWM signal from a display controller or timer. The IP65/IP67-rated metal housing protects the driver in outdoor display installations.

How many meters of 30V LED strip can the HLG-185H-30B support?

Divide 186W by your strip's wattage per meter. For example, a 30V strip rated at 14W/m allows about 13.3 meters (186W / 14W per meter ≈ 13.3m). Always check your specific strip's rated power per meter and keep total load at or below 186W for reliable operation.

Can the HLG-185H-30B handle installation in a marine or waterfront environment?

The IP65/IP67-rated metal housing protects against dust and moisture ingress, working humidity is rated 20-95% RH non-condensing, and the case temperature range is -40°C to +90°C. The datasheet gives no salt-spray rating, so mounting hardware and cable connections should be marine-grade for waterfront locations.
