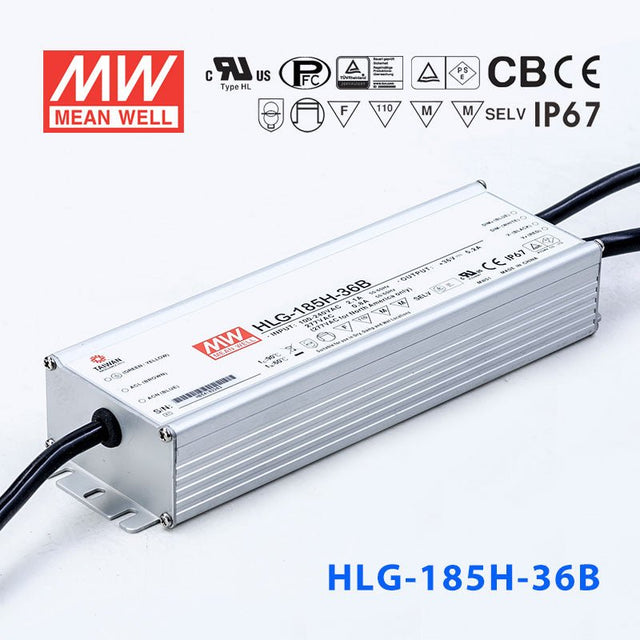

Mean Well HLG-185H-36AB Power Supply 185W 36V - Adjustable and Dimmable

Name: Mean Well HLG-185H-36AB Power Supply 185W 36V - Adjustable and Dimmable
Brand: Mean Well
SKU: HLG-185H-36AB
Price: 59.47 USD
Availability: InStock

premium quality7 years warrantyaluminium casinghigh efficiency

SKU:

HLG-185H-36AB

$59.47 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -40~+90℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: EN/AS/NZS
✓ 3 years warranty

Brand

Mean Well
Series

HLG Series
Power Rating

185 Watt
Output Voltage

36 Volt
Rated Current

5.2 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

10V PWM,1-10V,Built-in Potentiometer,Resistance
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

8.98 in
Width

2.68 in
Height

1.53 in
Weight

2.54 lb

Frequently Asked Questions

Can I use the HLG-185H-36AB with a 1-10V dimmer to control 36V LED strip brightness?

Yes. The HLG-185H-36AB accepts 1-10V and PWM dimming signals, allowing you to pair with a standard 1-10V wall dimmer or automation controller for smooth brightness adjustment of 36V LED strips. The built-in potentiometer also sets the maximum output level for additional flexibility.

Is the HLG-185H-36AB a good fit for smart-home controlled 36V LED lighting?

Yes. Its dimming input (1-10V/PWM) can be driven by most smart-home lighting controllers or building management systems. Combined with 185W at 36V and adjustable output, it provides both automated and manual brightness control for 36V LED installations.

Can the HLG-185H-36AB power 36V LED cove or accent lighting with smooth dimming?

Yes. With 185W at 36V and built-in dimming capability, it is well suited for architectural cove, accent, or niche lighting where smooth brightness transitions are important. The adjustable output via potentiometer lets you calibrate the maximum drive level to match the specific 36V LED strip.

Can I use the HLG-185H-36AB in a retail display with a centralized lighting controller?

Yes. The 1-10V/PWM dimming input integrates directly with centralized retail lighting controllers. At 185W and 36V, it powers substantial LED strip or module runs for display cabinets, shelf lighting, or product highlighting. The adjustable potentiometer lets you set a ceiling brightness level per zone.

How many meters of 36V LED strip can the HLG-185H-36AB drive?

Divide 185W by your strip's wattage per meter. A strip rated at 18W/m would allow about 10.2 meters (185W / 18W per meter = 10.28m). Always check your strip's rated power per meter and keep total load at or below 185W.

Is the HLG-185H-36AB rated for damp or semi-exposed installations?

Yes. The IP65 water-resistant rating protects against low-pressure water jets and full dust ingress, suitable for covered outdoor areas, damp rooms, and semi-exposed locations. For fully exposed outdoor installations with direct rain or submersion risk, choose the IP67-rated HLG-185H-36B instead.
