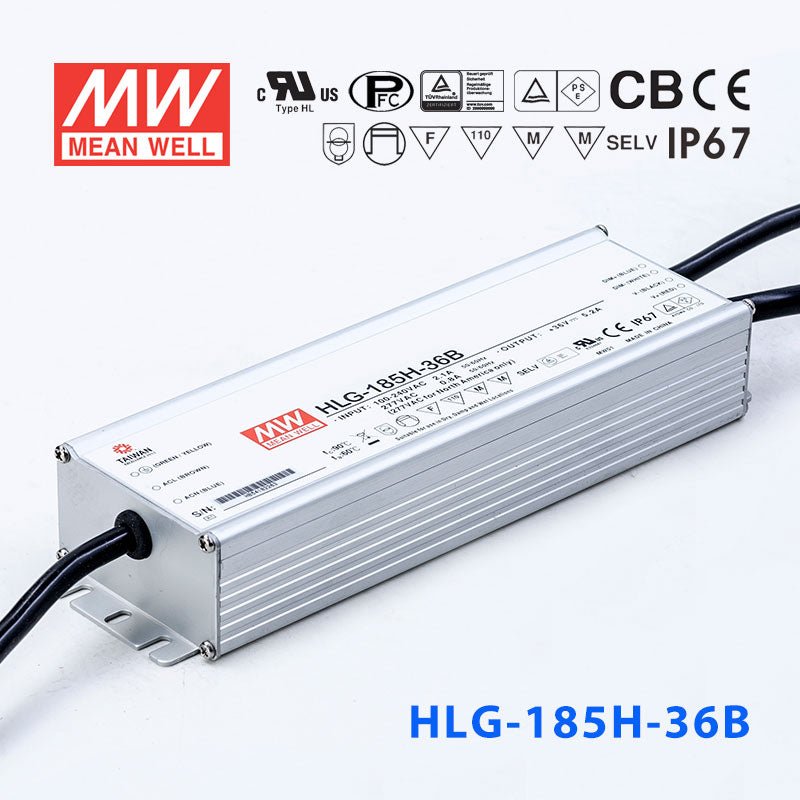

Mean Well HLG-185H-36AB Power Supply 185W 36V

Description

Features

Universal AC input (up to 305VAC) / Full range

High efficiency up to 95%

Built-in active PFC function, PF> 0.9 for 60% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

IP67 / IP65 design for indoor or outdoor installations

Cooling by free air convection

Output current adjustable

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W)

Optional CQC models available (A/Blank-Type)

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 65A at 230VAC
DC adjustment range	±10% rated output voltage
Current adjustment range	50%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	2500ms, 80ms, 16ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm);
Connection Output	A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm);
Dimension (LxWxH) (mm)	A/B/D/Blank-Type: 228x 68x 38.8

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

185 Watt
Output Voltage

36 Volt
Rated Current

5.2 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

10V PWM,1-10V,Built-in Potentiometer,Resistance
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

8.98 in
Width

2.68 in
Height

1.53 in
Weight

2.54 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-185H-36AB with a 1-10V dimmer to control 36V LED strip brightness?

Yes. The HLG-185H-36AB accepts 1-10V and PWM dimming signals, allowing you to pair with a standard 1-10V wall dimmer or automation controller for smooth brightness adjustment of 36V LED strips. The built-in potentiometer also sets the maximum output level for additional flexibility.

Is the HLG-185H-36AB a good fit for smart-home controlled 36V LED lighting?

Yes. Its dimming input (1-10V/PWM) can be driven by most smart-home lighting controllers or building management systems. Combined with 185W at 36V and adjustable output, it provides both automated and manual brightness control for 36V LED installations.

Can the HLG-185H-36AB power 36V LED cove or accent lighting with smooth dimming?

Yes. With 185W at 36V and built-in dimming capability, it is well suited for architectural cove, accent, or niche lighting where smooth brightness transitions are important. The adjustable output via potentiometer lets you calibrate the maximum drive level to match the specific 36V LED strip.

Can I use the HLG-185H-36AB in a retail display with a centralized lighting controller?

Yes. The 1-10V/PWM dimming input integrates directly with centralized retail lighting controllers. At 185W and 36V, it powers substantial LED strip or module runs for display cabinets, shelf lighting, or product highlighting. The adjustable potentiometer lets you set a ceiling brightness level per zone.

How many meters of 36V LED strip can the HLG-185H-36AB drive?

Divide 185W by your strip's wattage per meter. A strip rated at 18W/m would allow about 10.2 meters (185W / 18W per meter = 10.28m). Always check your strip's rated power per meter and keep total load at or below 185W.

Is the HLG-185H-36AB rated for damp or semi-exposed installations?

Yes. The IP65 water-resistant rating protects against low-pressure water jets and full dust ingress, suitable for covered outdoor areas, damp rooms, and semi-exposed locations. For fully exposed outdoor installations with direct rain or submersion risk, choose the IP67-rated HLG-185H-36B instead.
