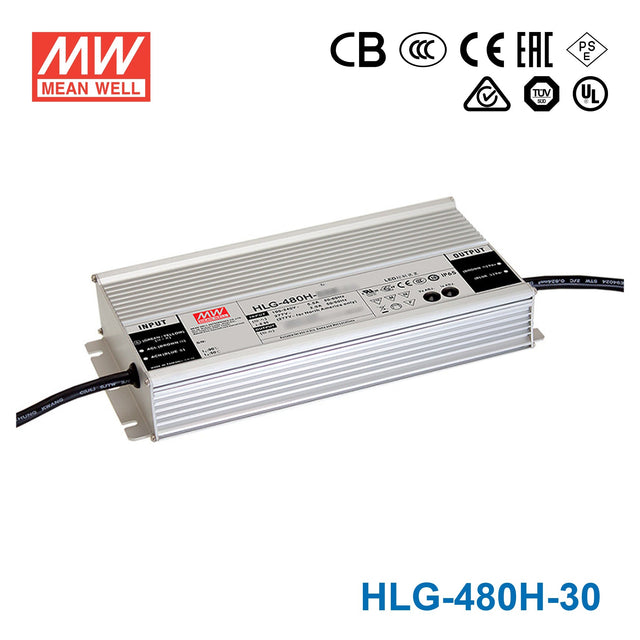

Mean Well HLG-480H-30 Power Supply 480W 30V
The HLG-480H is a 480W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating480 Watt
-
Output Voltage30 Volt
-
Rated Current16 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6.17 lb
::specification::
Frequently Asked Questions
Can I use the HLG-480H-30 for large outdoor 30V LED lighting installations?
Yes. The HLG-480H-30 delivers 480W at 30V (16A) with an IP67 waterproof rating, so it can be mounted fully exposed to rain, snow, or high humidity. This makes it well-suited for large-scale 30V LED strip runs, exterior architectural lighting, or commercial parking lot fixtures.
Is the HLG-480H-30 suitable for powering 30V LED light panels in a warehouse?
Yes. At 480W and 30V it can drive multiple 30V LED panels or high-bay fixtures up to its rated capacity. The wide 90-305VAC input handles industrial power grids worldwide. The constant-current operating range of 15-30V accommodates slight voltage differences across parallel panel strings.
Can the HLG-480H-30 power 30V LED modules in a large commercial light box?
Yes, as long as the total module load does not exceed 480W. The HLG-480H-30 provides a fixed 30V output with a constant-current range of 15-30V, which handles voltage variations across LED module arrays. Its IP67 rating allows installation near the light box even in damp or outdoor environments.
How many meters of 30V LED strip can the HLG-480H-30 support?
Divide 480W by your strip's power consumption per meter. For example, a 30V strip rated at 12W/m could run up to 40 meters (480W / 12W per meter = 40m). A strip at 20W/m would allow 24 meters. Always check your strip's rated power per meter and keep the total load at or below 480W.
Can the HLG-480H-30 operate in extreme outdoor temperatures year-round?
Yes. It is rated for an operating temperature range of -40°C to +90°C, which covers harsh winters and hot summers. The IP67 waterproof rating and aluminium casing provide robust protection against rain, humidity, and dust, making it reliable for permanent outdoor installations in nearly any climate.
