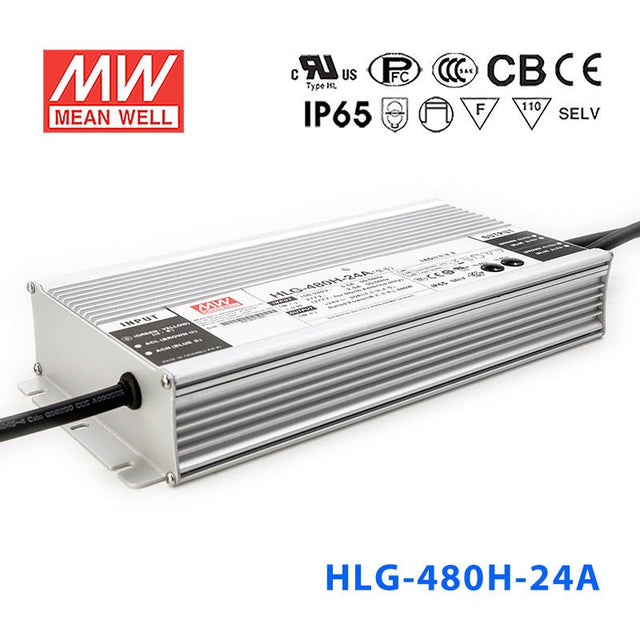

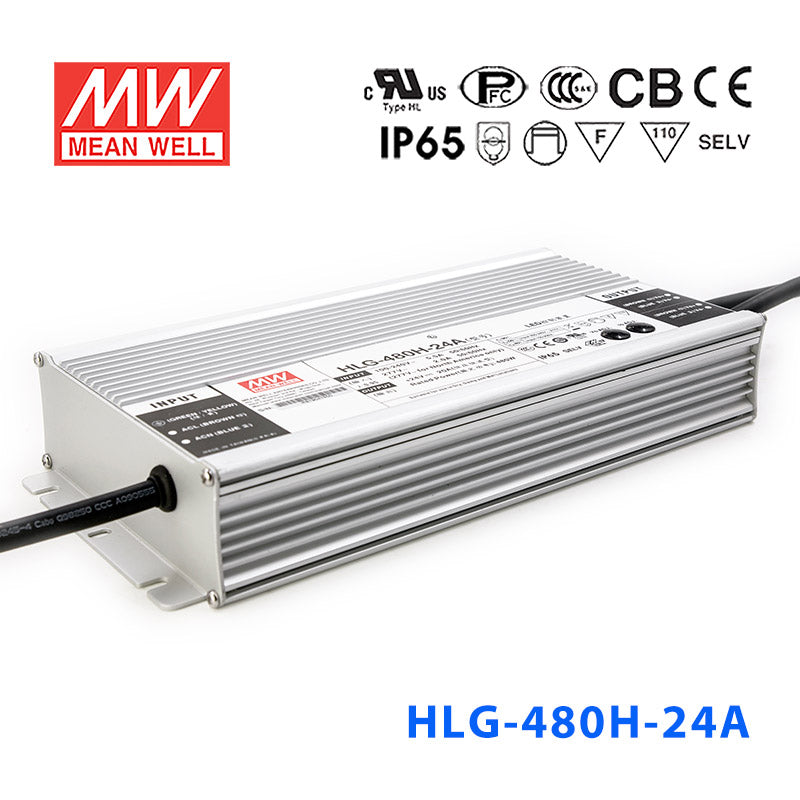

Mean Well HLG-480H-24A Power Supply 480W 24V - Adjustable 20A
5.0 (4 reviews)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-480H-24A Power Supply 480W 24V - Adjustable 20A
Overview
HLG-480H-24A is the 24V output model of this series: rated current 20A, rated power 480W, typical efficiency 94%.
HLG-480H series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-480H operates from 90～305VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 95.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HLG-480H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- IP67 / IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off, isolated design) ; smart timer dimming; junction box
- Typical lifettime > 62000 hours
- 7 years warranty (Note.9)
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- CONSTANT CURRENT REGIONNote.4
- 12 ~ 24V
- RATED CURRENT
- 20A
- RATED POWER
- 480W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 20.4 ~ 25.2V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 10 ~ 20A
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.6
- 500ms, 80ms 115VAC/230VAC
- HOLD UP TIME (Typ.)
- 16ms 115VAC/230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC, PF≧0.97/230VAC, PF≧0.95/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧40% / 115VAC,230VAC,277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
- EFFICIENCY (Typ.) 230VAC
- 94%
- EFFICIENCY (Typ.) 277VAC
- 94.5%
- AC CURRENT (Typ.)
- 5A / 115VAC 2.45A / 230VAC 2A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 35A(twidth=1800μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 2unit(circuit breaker of type B) / 3units(circuit breaker of type C) at 230VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27 ~ 33V Shut down output voltage, re-power on to recovery
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recovery
ENVIRONMENT
- WORKING TEMP.
- Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase= +90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.02%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213;IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016;KC61347-1, KC61347-2-13(except for AB,Dx type), J61347-1(H29), J61347-2-13(H29)(except for Dx type)approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3;GB/T 17743, GB17625.1, EAC TP TC 020;KC KN15,KN61547(except for AB,Dx type),J55015(H29)(for Blank/A-type)
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 ;KC KN15,KN61547( except for AB,Dx type ),J55015(H29)(for Blank/A-type)
OTHERS
- MTBF
- 1185.9K hrs min. Telcordia SR-332(Bellcore) ; 95.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 262*125*43.8mm (L*W*H)
- PACKING
- 2.8Kg;4pcs/12.2Kg/0.55CUFT
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Please refer to "DRIVING METHODS OF LED MODULE".
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 13. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- LED Harboure
- LED greenhouse lighting
- LED statium lighting
- LED mining lighting
- Type "HL" for use in ClassⅠ,Division 2 hazardous(Classified) location
Downloads
Certificates10
Test reports1
Catalogues1
FAQ
Can I use the HLG-480H-24A to fine-tune voltage for a large 24V LED installation?
Yes. The A suffix means it includes a built-in potentiometer for adjusting output voltage (20.4-25.2V) and current (10-20A). With 480W capacity, you can precisely match the driver output to your specific 24V LED load, which is especially useful for large installations where voltage drop across long cable runs is a concern.
Is the HLG-480H-24A suitable for powering 24V LED strips in a large retail or showroom environment?
Yes. At 480W and 24V with 20A output, it can drive extensive 24V LED strip layouts for retail displays, showroom ceilings, or cove lighting. The adjustable output lets you calibrate brightness without an external controller, and the wide 90-305VAC input works with most commercial power supplies.
Can the HLG-480H-24A handle a 24V LED lighting system for a parking structure?
Yes. With 480W of output, it can power a significant number of 24V LED fixtures in a parking garage. The adjustable output helps compensate for voltage drop over long wiring runs. Its IP65 rating provides protection against dust and water jets, though for fully exposed wet areas the IP67-rated base model may be preferable.
How many meters of 24V LED strip can the HLG-480H-24A power?
Divide 480W by your strip's rated power per meter. For instance, a 24V strip at 10W/m would allow 48 meters (480W / 10W per meter = 48m), while a strip at 20W/m would allow 24 meters (480W / 20W per meter = 24m). Always verify your strip's rated power per meter and keep total load within 480W.
Is the HLG-480H-24A appropriate for a covered but unheated outdoor installation?
Yes. Its IP65 rating provides full dust protection and resistance to low-pressure water jets, which is adequate for covered outdoor areas. Its case temperature (Tcase) range of -40°C to +90°C handles freezing winters, and in hot summers output derating applies above about 60°C ambient at rated current. For fully rain-exposed locations, the IP67-rated HLG-480H-24 offers stronger water protection.
