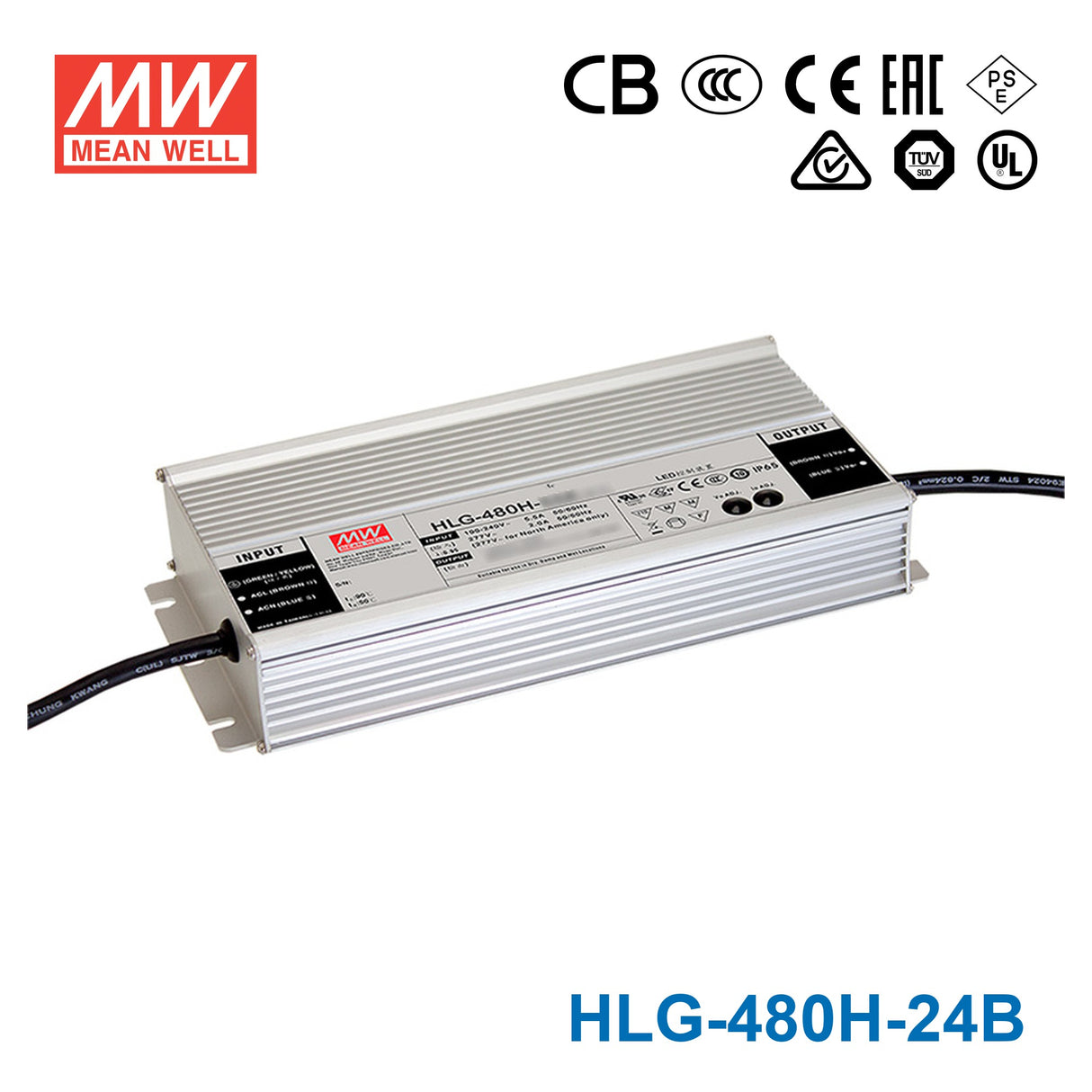

Mean Well HLG-480H-24B Power Supply | 480W 24V Dimmable LED Driver

Description

Features

Constant Voltage + Constant Current mode output

Metal housing with Class I design

Built-in active PFC function

Environment-adaptive driving capability

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in-1 dimmings (dim-to-off and Isolated Design); Smart timer dimming; Low-temperature light-on; Junction box

Typical lifetime >62000 hours

7 years warranty(Note.9)

General Specification

AC input voltage range	90~305VAC \| 127~431VDC
AC inrush current (max.)	COLD START 35A(twidth=1800 s measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short Circuit Protection	Constant current limiting recovers automatically after the fault condition is removed
Over-voltage protection	Up to 129% \| Shut down output voltage, re-power on to recovery
Over temp. protection	Shut down output voltage, re-power on to recovery
Setup, rise, hold up time	500ms, 80ms 115VAC/230VAC
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14,GB19510.1;IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016;KC61347-1, KC61347-2-13(except for AB,Dx,D2-type), J61347-1(H29), J61347-2-13(H29)(for Blank/A-type) approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Dimension (LxWxH) (mm)	262 x 125 x 43.8mm
Packing	2.8Kg;4pcs/12.2Kg/0.55CUFT

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

480 Watt
Output Voltage

24 Volt
Rated Current

20 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

10V PWM,1-10V,Resistance
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

10.32 in
Width

4.92 in
Height

1.72 in
Weight

6.17 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-480H-24B for large-scale outdoor 24V LED strip lighting with dimming?

Yes. The HLG-480H-24B provides 480W at 24V (20A) with a 1-10V/PWM dimming input for brightness control. Its IP67 waterproof rating allows direct outdoor mounting even in locations exposed to rain, snow, or temporary water pooling, making it well-suited for building perimeter strips, parking structure lighting, or garden installations.

Is the HLG-480H-24B a good choice for powering 24V LED modules in a large outdoor sign?

Yes. With 480W of output at 24V and IP67 waterproofing, it can reliably drive high-wattage LED sign modules in fully exposed outdoor locations. The constant-current operating range of 12-24V accommodates module strings with varying forward voltage drops. The dimming input lets you reduce brightness for nighttime operation.

Can the HLG-480H-24B power 24V LED lighting in a commercial cold storage facility?

Yes. Its operating temperature range of -40°C to +90°C covers cold-storage and freezer environments. The IP67 waterproof rating protects against condensation and washdown moisture. At 480W it can supply substantial 24V LED fixture loads commonly used in walk-in coolers and refrigerated display areas.

How many meters of 24V LED strip can the HLG-480H-24B drive?

Divide 480W by your strip's rated wattage per meter. For instance, a strip rated at 10W/m could run up to 48 meters (480W / 10W per meter = 48m). A denser strip at 19.2W/m would allow 25 meters. Always verify your strip's rated power per meter and keep total consumption at or below 480W.

Can the HLG-480H-24B be installed in a below-grade vault or wet junction box?

Yes. IP67 means the enclosure can withstand temporary immersion in water up to 1 meter deep for 30 minutes. It is suitable for underground vaults, wet junction boxes, or any location where standing water may occasionally occur. The -40°C to +90°C range also covers extreme temperature environments.
