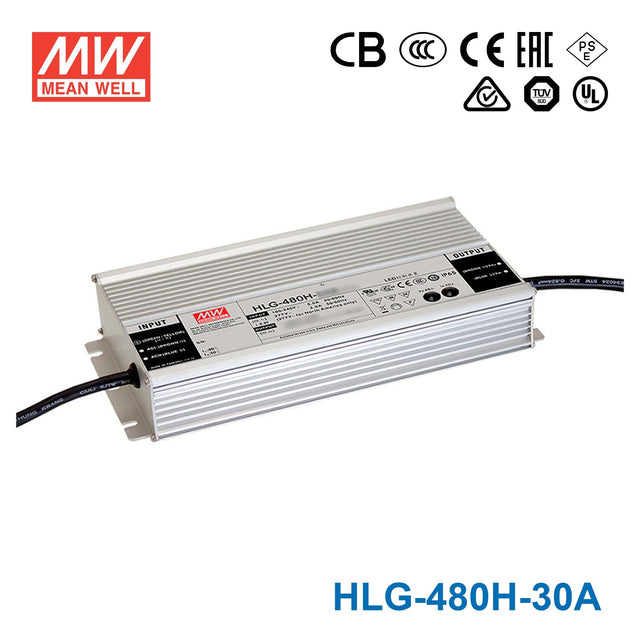

Mean Well HLG-480H-30A Power Supply 480W 30V - Adjustable
The HLG-480H is a 480W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating480 Watt
-
Output Voltage30 Volt
-
Rated Current16 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6.17 lb
::specification::
Frequently Asked Questions
Can I use the HLG-480H-30A for a large 30V LED strip project where I need to fine-tune the voltage?
Yes. The HLG-480H-30A provides 480W at 30V (16A) and includes a built-in potentiometer for output voltage and current adjustment. This lets you dial in the exact voltage your 30V LED strips require within the 15-30V constant-current range, which is useful when compensating for voltage drop over long runs.
Is the HLG-480H-30A a good fit for 30V commercial horticultural LED grow lights?
Yes. At 480W it provides substantial power for high-output grow-light panels operating at 30V. The adjustable output lets you match the driver's voltage precisely to the LED array's forward voltage, maximizing efficiency. Its -40°C to +90°C operating range handles greenhouse and indoor grow-room conditions.
Can the HLG-480H-30A drive 30V LED fixtures in a covered outdoor canopy or gazebo?
Yes. Its IP65 rating protects against dust and low-pressure water jets, making it suitable for sheltered outdoor areas like canopies, pergolas, or covered patios. For locations with direct rain exposure or potential standing water, the IP67-rated HLG-480H-30 or HLG-480H-30B would be more appropriate.
How many meters of 30V LED strip can the HLG-480H-30A support?
Divide 480W by your strip's wattage per meter. A 30V strip rated at 15W/m could run up to 32 meters (480W / 15W per meter = 32m). A strip at 24W/m would allow 20 meters. Check your strip's rated power per meter and keep total draw at or below 480W.
Is the HLG-480H-30A suitable for fully exposed outdoor mounting?
Not recommended for fully exposed locations. The HLG-480H-30A carries an IP65 water-resistance rating, which handles dust and low-pressure water spray but is not designed for submersion or prolonged direct rain. Mount it in a sheltered spot or use a weatherproof enclosure. For IP67 waterproof protection, choose the HLG-480H-30 or HLG-480H-30B.
What are the differences between the HLG-480H-30, 30A, 30AB, and 30B?
All four share the same 480W / 30V / 16A core specs with a CC range of 15-30V. The base HLG-480H-30 has fixed output and IP67 waterproofing. The -30A adds output voltage/current adjustment via potentiometer (IP65). The -30AB adds both adjustment and 1-10V/PWM dimming (IP65). The -30B offers dimming input only and retains IP67 waterproofing.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-480H Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-480H-24B Power Supply 480W 24V- Dimmable | 480W | 24V | 20A | IP67 | $142.65 | View |
| Mean Well HLG-480H-24 Power Supply 480W 24V | 480W | 24V | 20A | IP67 | $124.13 | View |
| Mean Well HLG-480H-24A Power Supply 480W 24V - Adjustable | 480W | 24V | 20A | IP65 | $138.61 | View |
| Mean Well HLG-480H-48B Power Supply 480W 48V- Dimmable | 480W | 48V | 10A | IP67 | $142.65 | View |
| Mean Well HLG-480H-54AB Power Supply 480W 54V - Adjustable and Dimmable | 480W | 54V | 8.9A | IP65 | $151.52 | View |
