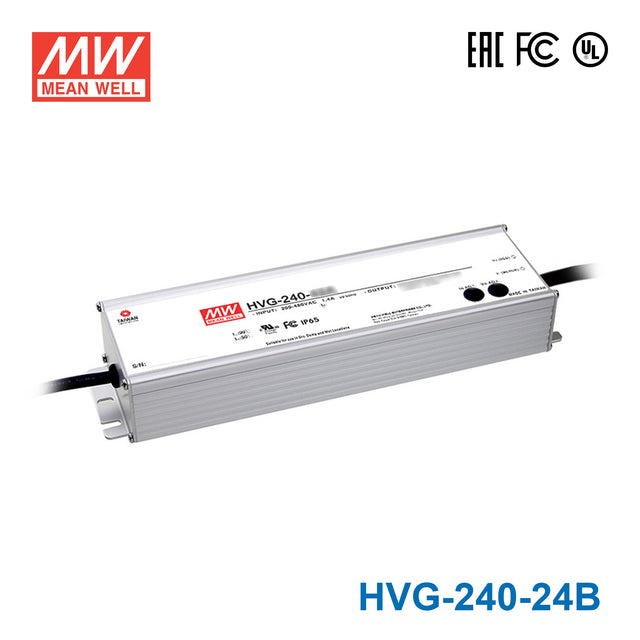

Mean Well HVG-240-24B Power Supply 240W 24V - Dimmable

Name: Mean Well HVG-240-24B Power Supply 240W 24V - Dimmable
Brand: Mean Well
SKU: HVG-240-24B
Price: 94.95 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU:

HVG-240-24B

$94.95 USD ~~$343.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HVG-240 is a 240W Mean Well power converter (input range: 180~528VAC).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

240 Watt
Output Voltage

24 Volt
Rated Current

10 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

10V PWM,1-10V,Resistance
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.89 lb

Frequently Asked Questions

Can I use the HVG-240-24B for a 24V outdoor LED strip project?

Yes, this model provides 24V output with up to 240W and 10A for compatible 24V lighting loads. Its IP67 waterproof rating makes it better suited to harsher outdoor conditions than the IP65 versions in the same family. Verify the strip or fixture fits the driver's 12-24V constant current range.

Is the HVG-240-24B suitable for wet-location signage lighting?

It can be used for 24V sign lighting loads that stay within 240W and 10A. The IP67 waterproof enclosure is the main reason buyers choose this version for more exposed locations. The lighting load still needs to match the 24V output and 12-24V CC voltage range.

Would this work for 24V area or perimeter lighting in exposed environments?

For 24V perimeter or area lighting loads, the driver offers up to 240W at 24V and 10A. The IP67 rating and aluminium casing make it a better candidate where water exposure is a concern. Confirm the connected load is compatible with the driver's operating mode and output range.

What LED strip length can the HVG-240-24B support?

Use the power rating to estimate length: 240W divided by the strip wattage per meter gives the maximum meters. The driver's ceiling is 240W total at 24V, with up to 10A output. Check your strip rated power per meter and make sure the total stays within those limits.

Is the HVG-240-24B fully waterproof for outdoor use?

This version is rated IP67, which is a higher ingress-protection level than the IP65 variants in the same series. That makes it the better choice where the driver itself may face more direct water exposure. It is also rated for an operating temperature range of -40°C to +90°C.

How does the HVG-240-24B compare with the 24V A and AB versions?

The HVG-240-24A, HVG-240-24AB, and HVG-240-24B are all 24V, 240W, and 10A models. The A version is adjustable, the AB version is adjustable and dimmable, and the B version is dimmable. The B model is IP67, while the A and AB versions are IP65.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HVG-240-48AB LED Power Supplies 240W 48V 5A CV + CC IP65	240W	48V	5A	IP65	$85.59	View
Mean Well HVG-240-24A Power Supply 240W 24V - Adjustable	240W	24V	10A	IP65	$85.92	View
