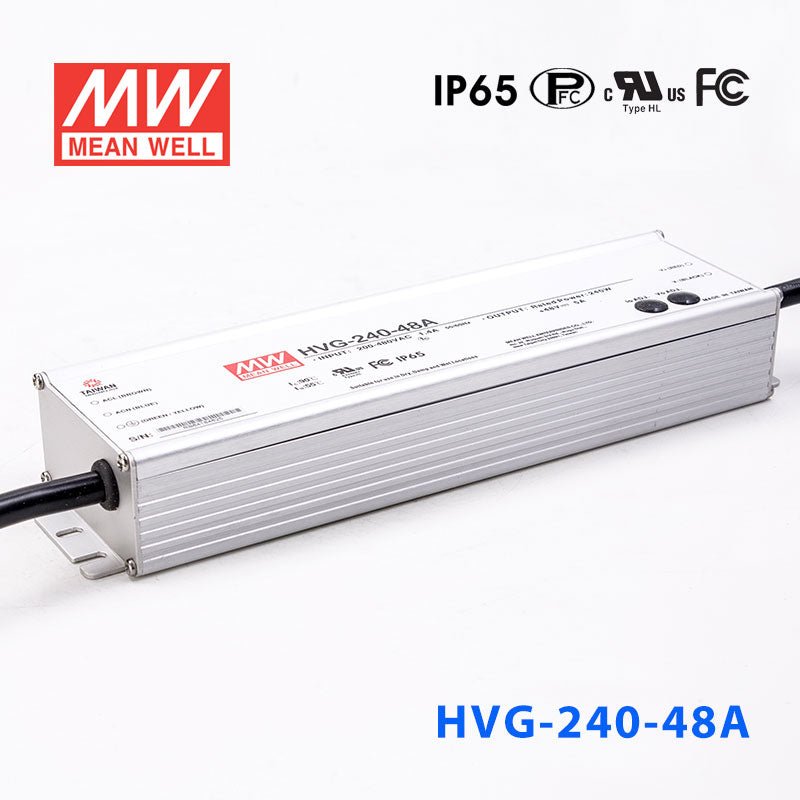

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HVG-240-48AB LED Power Supplies 240W 48V 5A CV + CC IP65

Name: Mean Well HVG-240-48AB LED Power Supplies 240W 48V 5A CV + CC IP65
Brand: Mean Well
SKU: HVG-240-48AB
Price: 85.59 USD
Availability: InStock

wide input range 180~528VAC, aluminium casing

SKU:

HVG-240-48AB

Datasheet:

HVG-240-48AB Datasheet

$85.59 USD

Shipping calculated at checkout.

Quantity Prices

Quantity	Discount	Unit Price
10+	5%	$81.31
20+	7%	$79.60
50+	9%	$77.89
100+	10%	$77.03
200+	11%	$76.18
500+	13%	$74.46
1000+	15%	$72.75

This discount is applied to the total quantity of this product in your cart

Your order will be processed within 24 hours

Description

Features

180~528VAC wide input range

Constant Voltage + Constant Current mode output

Metal housing with Class I design

Built-in active PFC

IP67 / IP65 rating for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC; 254~747VDC
AC inrush current (max.)	COLD START 50A(twidth=850 s measured at 50% I μ peak) at 480VAC; Per NEMA 410
DC adjustment range	±10% rated output voltage
Current adjustment range	55%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over-voltage protection	110%~140% rated output voltage
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90°C (refer to output derating curve)
Safety standards	UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input	UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type	SJTW 14AWGx2C (30cm)
Connection Output B-Type	SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	254.2 x 68 x 38.8

Specifications

Brand

Mean Well
Series

HVG Series
Power Rating

240 Watt
Output Voltage

48 Volt
Rated Current

5 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

10V PWM,1-10V,Built-in Potentiometer,Resistance
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.89 lb

File Downloads

Specification Sheet

Spec Sheet (HVG-240-48AB)(EN)

Catalog

Mean Well LED Driver Catalog
