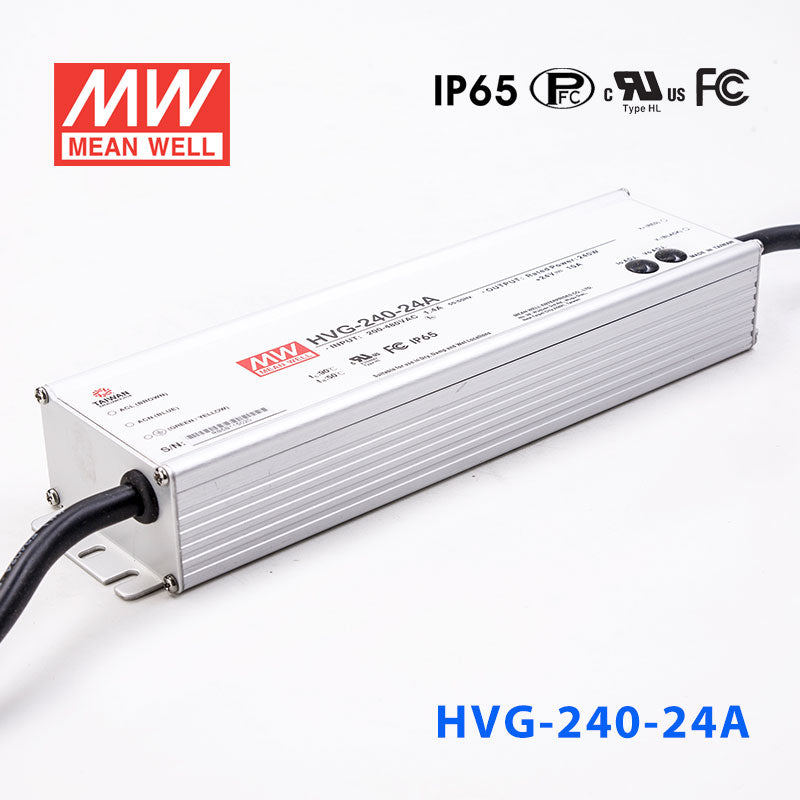

Mean Well HVG-240-24A Power Supply 240W 24V - Adjustable | HVG Series - Constant Voltage + Constant Current LED Driver

Description

Features

180~528VAC wide input range

Constant Voltage + Constant Current mode output

Metal housing with Class I design

Built-in active PFC

IP67 / IP65 rating for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC; 254~747VDC
AC inrush current (max.)	COLD START 50A(twidth=850 s measured at 50% I μ peak) at 480VAC; Per NEMA 410
DC adjustment range	±10% rated output voltage
Current adjustment range	55%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over-voltage protection	110%~140% rated output voltage
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90°C (refer to output derating curve)
Safety standards	UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input	UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type	SJTW 14AWGx2C (30cm)
Connection Output B-Type	SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	254.2 x 68 x 38.8

Specifications

Brand

Mean Well
Series

HVG Series
Power Rating

240 Watt
Output Voltage

24 Volt
Rated Current

10 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.89 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVG-240-24A for a high-power 24V LED strip installation?

Yes, if the strip or LED load is designed for 24V and the total power stays within 240W. This driver provides up to 10A at 24V, which supports larger 24V lighting runs than lower-power 24V models. Check your strip rated power per meter before calculating the total run length.

Is this driver a good fit for 24V illuminated signage or retail displays?

It can be used for 24V signage and display lighting loads up to 240W. The 12-24V constant-current range and 10A output make it suitable for higher-power 24V lighting assemblies. Its IP65 water-resistant enclosure also suits indoor commercial settings and sheltered outdoor applications.

Can the HVG-240-24A power long 24V linear lighting runs in commercial spaces?

Yes, it is suitable for 24V linear LED lighting systems that need up to 240W. The wide 180-528VAC input range helps when projects use different mains supplies, and the operating temperature range is -40°C to +90°C. The connected load still needs to stay within 24V and 10A output limits.

How much 24V LED strip can this 240W driver support?

Estimate strip length by dividing 240W by the strip's watts per meter. For example, a 24V strip rated at 19.2W/m would estimate to 12.5m because 240 / 19.2 = 12.5. Check your strip rated power per meter and keep the full load within 240W and 10A.

Can the HVG-240-24A be used outdoors?

It has an IP65 water-resistant rating, so it is appropriate for outdoor use where the driver is protected from stronger water exposure. That makes it suitable for damp or sheltered exterior environments rather than the more fully sealed conditions expected of IP67 models. It is also rated for -40°C to +90°C operation.

What is the difference between the HVG-240-24A, HVG-240-24AB, HVG-240-24B, and HVG-240-24D2?

The HVG-240-24A, HVG-240-24AB, and HVG-240-24B are all rated at 240W, 24V, and 10A. The HVG-240-24D2 is also listed at 240W in the same sibling group. Across these 24V 240W variants, the shared output class is 240W at 24V, with the variant code distinguishing the model version.
