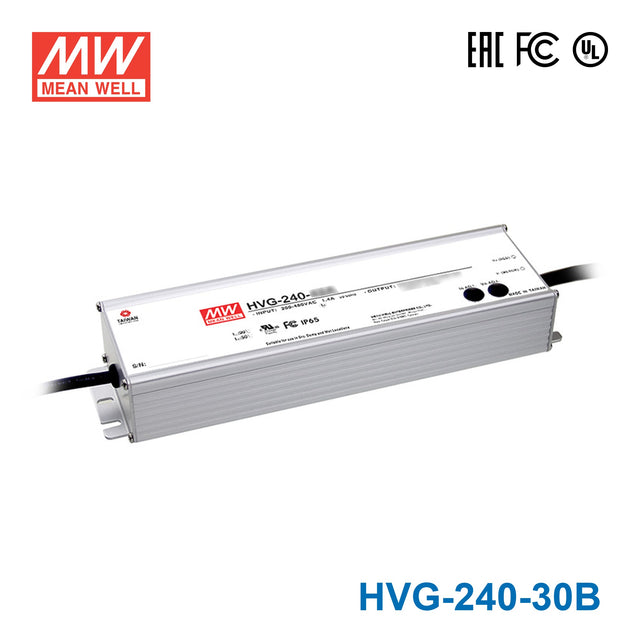

Mean Well HVG-240-30B Power Supply 240W 30V - Dimmable

Name: Mean Well HVG-240-30B Power Supply 240W 30V - Dimmable
Brand: Mean Well
SKU: HVG-240-30B
Price: 88.9 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU:

HVG-240-30B

$88.90 USD ~~$343.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HVG-240 is a 240W Mean Well power converter (input range: 180~528VAC).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

240 Watt
Output Voltage

30 Volt
Rated Current

8 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

10V PWM,1-10V,Resistance
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.89 lb

Frequently Asked Questions

Can I use the HVG-240-30B for a 30V outdoor LED lighting application?

Yes, this driver provides 30V output with up to 240W and 8A for compatible 30V lighting loads. Its IP67 waterproof rating makes it the more weather-exposed option within the 30V 240W group. Verify the load fits the driver's 15-30V constant current range.

Is the HVG-240-30B suitable for 30V wet-location signage?

It can be used for 30V signage lighting loads as long as total demand stays within 240W and 8A. The IP67 enclosure is the key difference when compared with the IP65 30V versions. The load still needs to match the driver's output characteristics.

Would this driver work for exposed 30V perimeter or facade lighting?

For compatible 30V facade or perimeter lighting loads, the driver offers up to 240W at 30V with an 8A maximum output. The IP67 waterproof rating and aluminium casing make it a stronger choice where the driver may face more direct water exposure. Confirm the lighting load falls within the 15-30V CC range.

How much 30V LED strip can the HVG-240-30B support?

Calculate the maximum length by dividing 240W by the strip wattage per meter. The driver's total output is capped at 240W, with up to 8A at 30V. Check your strip rated power per meter and keep the total load within that limit.

Is the HVG-240-30B better for wet environments than the 30A or 30AB versions?

From an ingress-protection standpoint, yes. The HVG-240-30B is IP67, while the HVG-240-30A and HVG-240-30AB are IP65. It is also rated for operation from -40°C to +90°C.

What are the factual differences between the HVG-240-30A, HVG-240-30AB, and HVG-240-30B?

All three are 240W, 30V, 8A models in the same series. The A version is adjustable, the AB version is adjustable and dimmable, and the B version is dimmable. In protection rating, the B version is IP67 and the A and AB versions are IP65.
