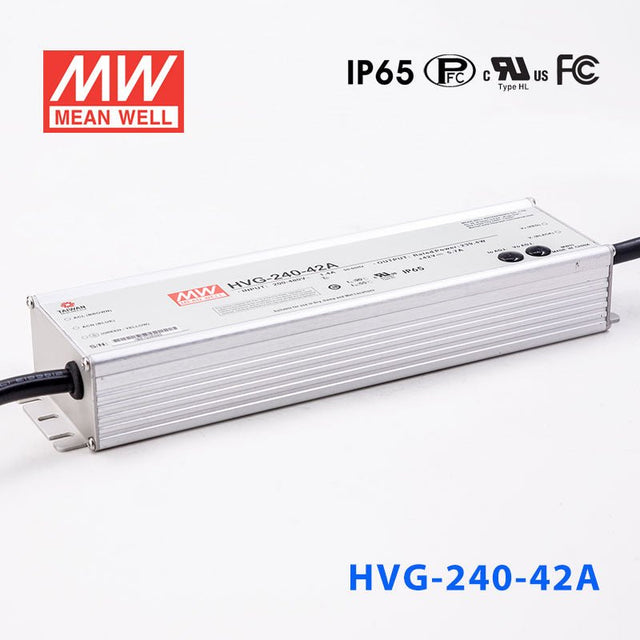

Mean Well HVG-240-42A Power Supply 240W 42V - Adjustable

Name: Mean Well HVG-240-42A Power Supply 240W 42V - Adjustable
Brand: Mean Well
SKU: HVG-240-42A
Price: 88.68 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU:

HVG-240-42A

$88.68 USD ~~$335.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HVG-240 is a 240W Mean Well power converter (input range: 180~528VAC).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

239.4 Watt
Output Voltage

42 Volt
Rated Current

5.7 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.89 lb

Frequently Asked Questions

Can I use the HVG-240-42A for 42V outdoor LED lighting?

Yes, if the lighting load is designed for 42V constant current operation and stays within 239.4W and 5.7A. The IP65 water-resistant housing supports outdoor or damp-area use, subject to the rating of the connected lighting product.

Is this driver suitable for 42V signage or linear lighting products?

It can be used for 42V sign or linear lighting products that operate within the listed 21-42V constant current range. The available output is 239.4W at up to 5.7A, so the total load needs to stay inside those limits.

Can the HVG-240-42A power a 42V LED strip project?

It can support a 42V LED strip or lighting load if that load is compatible with 42V constant current output. For strip-length sizing, divide 239.4W by the strip's rated watts per meter, and check your strip rated power per meter.

Would this fit architectural lighting in hot or cold environments?

The operating temperature range is -40°C to +90°C, which is broad for demanding indoor or outdoor locations. The electrical load still needs to match 42V output and remain within 239.4W and 5.7A.

How do I estimate the maximum 42V strip length for this driver?

Use the driver's 239.4W maximum output in the calculation. The formula is maximum length = 239.4W ÷ strip W/m, and you should check your strip rated power per meter and confirm the load is compatible with 42V constant current operation.

How does HVG-240-42A compare with the other HVG-240 models?

The HVG-240 family includes 24V at 240W and 10A, 30V at 240W and 8A, 36V at 241.2W and 6.7A, 42V at 239.4W and 5.7A, 48V at 240W and 5A, and 54V at 243W and 4.5A. This 42A version shares the same 239.4W, 42V, and 5.7A rating as HVG-240-42AB and HVG-240-42B.
