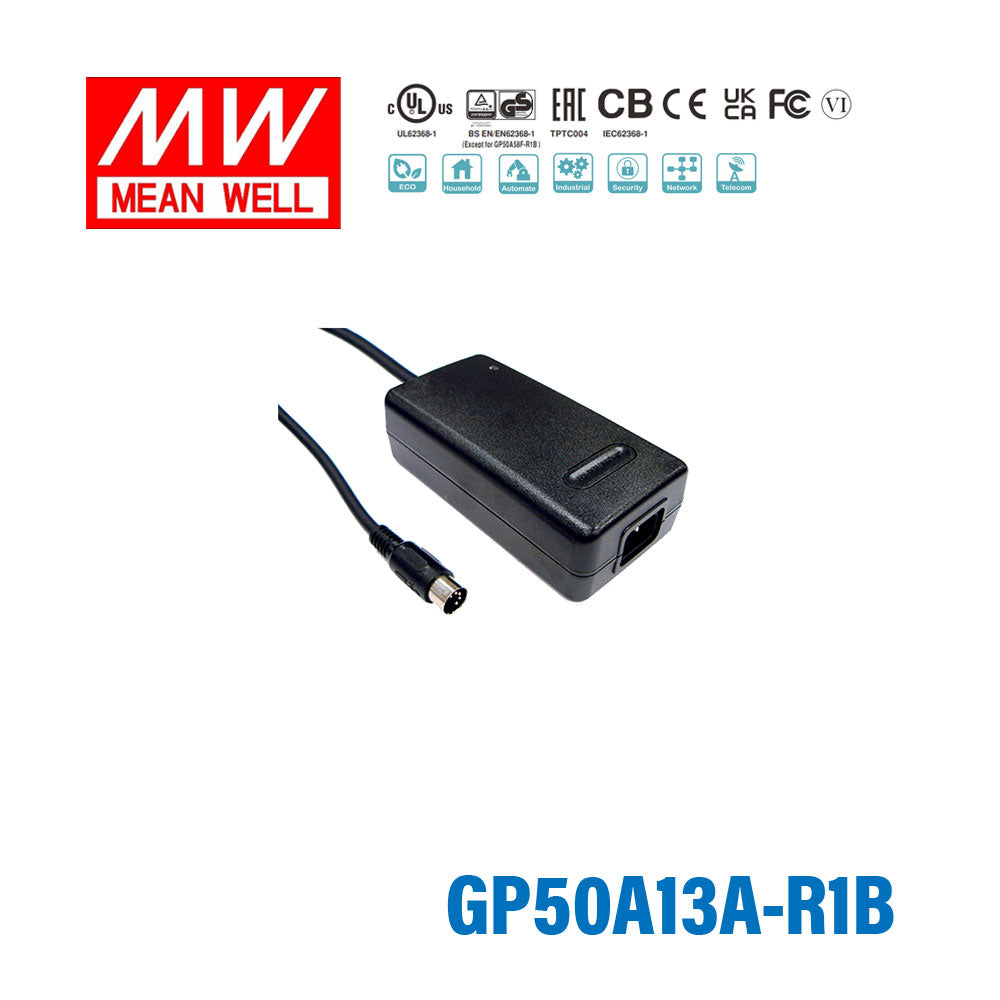

Mean Well GP50A13A-R1B Power Supply 50W 5V 12V -5V
The GP50A13A is a 50W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGP Series
-
Power Rating46.5 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5.75 in
-
Width2.97 in
-
Height1.69 in
-
Weight1.21 lb
::specification::
Frequently Asked Questions
Can I use the GP50A13A-R1B for a 5V industrial controller or embedded board?
This model is a constant voltage power supply with a listed 5V output and 4A output current. For control electronics or embedded hardware that need regulated 5V power within its 46.5W rating, it fits that type of application.
Is this power supply suitable for 5V automation interfaces or logic-level equipment?
It can suit automation or logic-level loads that require constant 5V DC and stay within the 4A output limit. The wide 90-264VAC input also supports use in installations where AC input availability varies.
Can this model be used in older systems that need multiple rails like 5V, 12V, and -5V?
The product name identifies this unit as a 50W 5V 12V -5V model, which aligns with equipment designed around multiple DC rails. The provided specs list the main output as 5V at 4A with total power of 46.5W, so full rail requirements should be checked against the detailed product documentation before selection.
Is the GP50A13A-R1B appropriate for indoor control cabinets or panel environments?
The published operating temperature range is -20°C to +70°C, which supports use across a broad indoor equipment environment. No IP rating is provided in the supplied specs, so the product data does not indicate direct outdoor or exposed-environment use.
What kind of electrical environment is this model designed to accept on the input side?
This power supply accepts 90-264VAC input, which is useful where equipment may be deployed across different standard AC mains ranges. It is a constant voltage design and carries CB, CE, EAC, FCC, TÜV, and UL certifications in the provided specifications.
