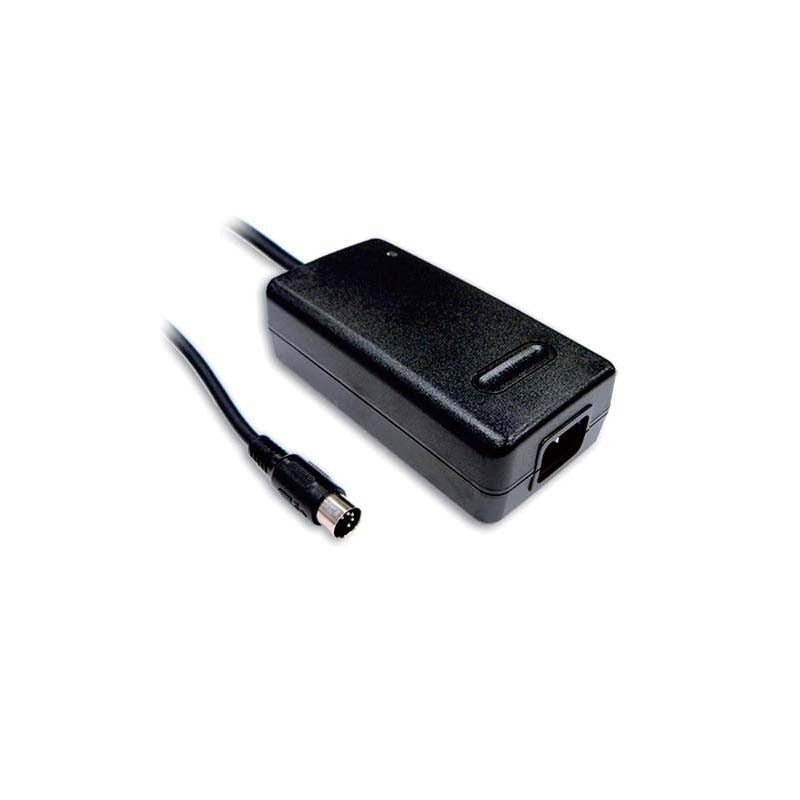

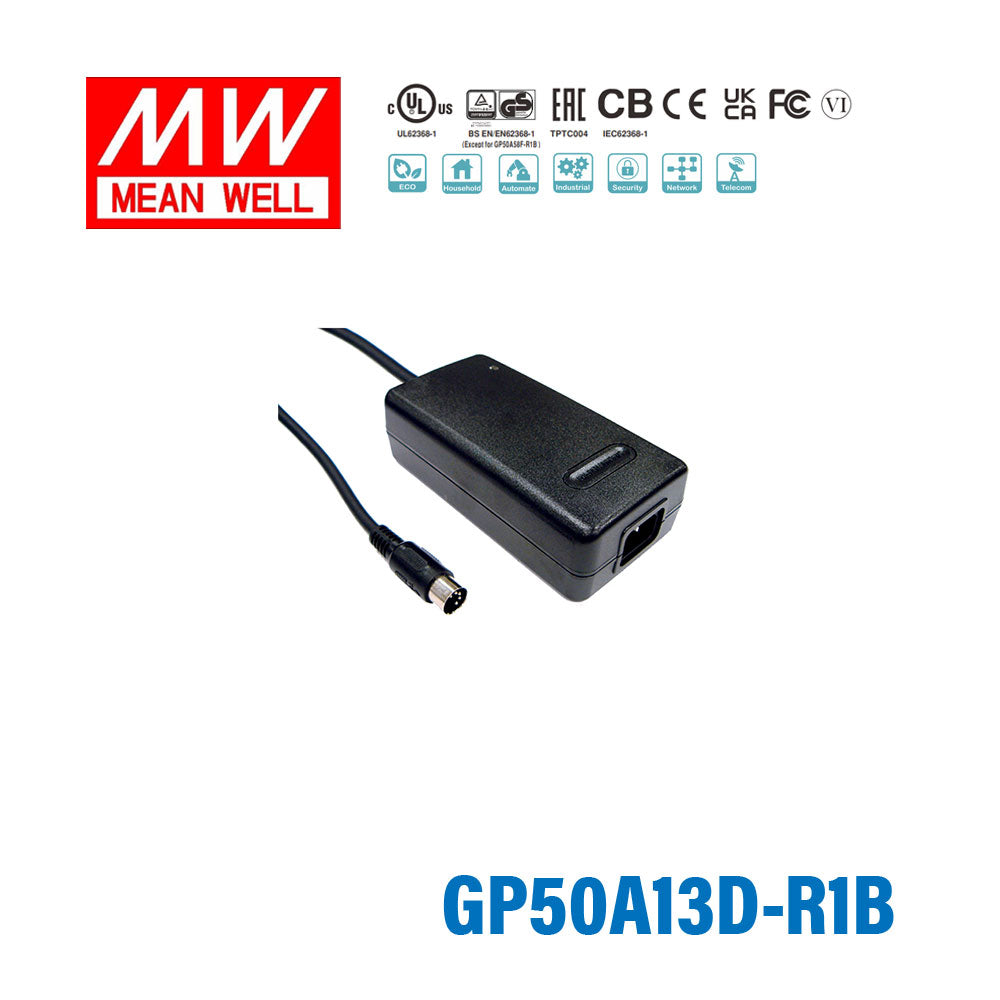

Mean Well GP50A13D-R1B Power Supply 50W 5V 12V -12V 4A
Overview
GP50A13D-R1B is the 5V 12V -12V output model of this series: rated power 50W, typical efficiency 84%.
GP50A is a 50W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level Ⅵ). Adopting Class I design and utilizing the standard inlet IEC320-C14, it is designed with FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. This series operates from 90~264VAC and offers three models with the output voltage sets +5V/+12V/-5V, +5V/+12V/-12V, +5V/+15V/-15V and can option +16V/+48V/-16V. Its supreme advantages includes the less-than-0.3W no load power consumption, the capability of working under -20~+70℃ ambient temperature, complete protection functions and three-year warranty and the compliance to the international safety certification such as CB, TUV, UL, CE and FCC. GP50A is a multiple-output green adaptor with high safety, high reliability and high quality.
Features
- Universal AC input / Full range
- 3 pole AC inlet IEC320-C14, Class I power unit
- No load power consumption < 0.3W
- Energy efficiency level Ⅵ
- Comply with EISA 2007/DoE
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- -20 ~ +70℃ working temperature
- LED indicator for power on
- Dual output available (optional)
- ± 16V /+48V also available for video system (optional, order NO. : GP50A58F-R1B)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GP50A13D
- DC VOLTAGENote.2
- 5V 12V -12V
- RATED SET CURRENT
- 4A 2A 0.5A
- CURRENT RANGE
- 0 ~ 4.0A 0.3 ~2.0A 0.1 ~0.5A
- RATED POWER
- 50W
- RIPPLE & NOISE (max.)Note.3
- 50mVp-p 150mVp-p 100mVp-p
- VOLTAGE TOLERANCENote.4
- ±5.0% ±3.0% -5% ~ +8%
- LINE REGULATIONNote.5
- ±1.0%
- LOAD REGULATIONNote.6
- ±5.0% ±3.0% ±5.0%
- SETUP, RISE, HOLD UP TIME
- 1500ms, 50ms, 20ms / 230VAC 2500ms, 50ms, 16ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 90 ~ 264VAC 135~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 84%
- AC CURRENT
- 1.6A / 100VAC 0.8A / 230VAC
- INRUSH CURRENT (max.)
- Cold start 35A/115VAC 65A / 230VAC
- LEAKAGE CURRENT (max.)
- 0.75mA / 240VAC
PROTECTION
- OVERLOAD
- 120 ~ 200% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- Protection type : Clamp by zener diode, output short
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP50A58F-R1B ), EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:4242VDC , I/P-FG:2121VDC
- ISOLATION RESISTANCE
- I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT bursts BS EN/EN61000-4-4 Level 2, 1KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N, 2KV/L,N-PE Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS
- LIFE
- 3 years : 100% load 40℃, 8hours/day
- MTBF
- 280K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 146*75.5*43mm (L*W*H)
- PACKING
- 0.55kg; 36pcs / 21kg / CARTON
CONNECTOR
- PLUG
- See page 4
- CABLE
- See page 4
Test conditions and notes8
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.When measured between the light load (20% of rated load) and full load, the load regulation is within ±5% whereas the cross regulation is within ±15%.
- 7.Derating may be needed under low input voltages. Please check the static characteristics for more details.
- 8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
Downloads
Certificates6
Test reports1
FAQ
Can I use the GP50A13D-R1B for 5V control electronics in industrial equipment?
Yes, this unit provides a 5V output rated at 4A. That makes it a fit for industrial control electronics or embedded assemblies that require stable 5V power within the 50W total rating.
Is this a good fit for 5V HMI, interface, or communications boards?
It can be appropriate for interface or communications hardware that runs on regulated 5V DC and draws no more than 4A. Its 90-264VAC input range also supports use where the available AC source may differ by region or installation.
Can this model support equipment that uses 5V, 12V, and -12V rails?
Yes, the GP50A13D-R1B is a 50W triple output adaptor with 5V, 12V and -12V rails, which is relevant for equipment built around those rail types. The specs list 5V at 0-4A, 12V at 0.3-2A and -12V at 0.1-0.5A, so confirm each rail's loading, including the minimum load on 12V and -12V, before final selection.
Can the GP50A13D-R1B be used in outdoor or exposed locations?
The provided specifications list an operating temperature range of -20°C to +70°C with derating per the derating curve, but they do not list an IP rating. Based on that product data alone, outdoor or exposed-environment suitability is not indicated.
What makes this model suitable for broad AC input conditions?
This power supply accepts 90-264VAC (47-63Hz) input, which covers a wide standard AC input range; derating may be needed at low input voltages. The sheet lists IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1 and EAC TP TC 004 safety approvals and FCC Part 15 Class B emissions.
