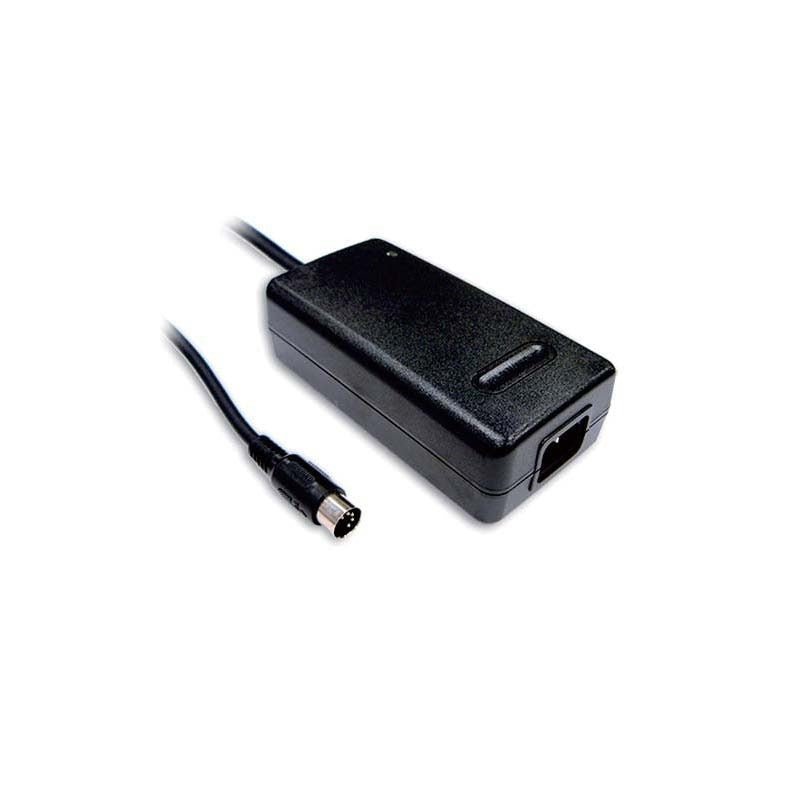

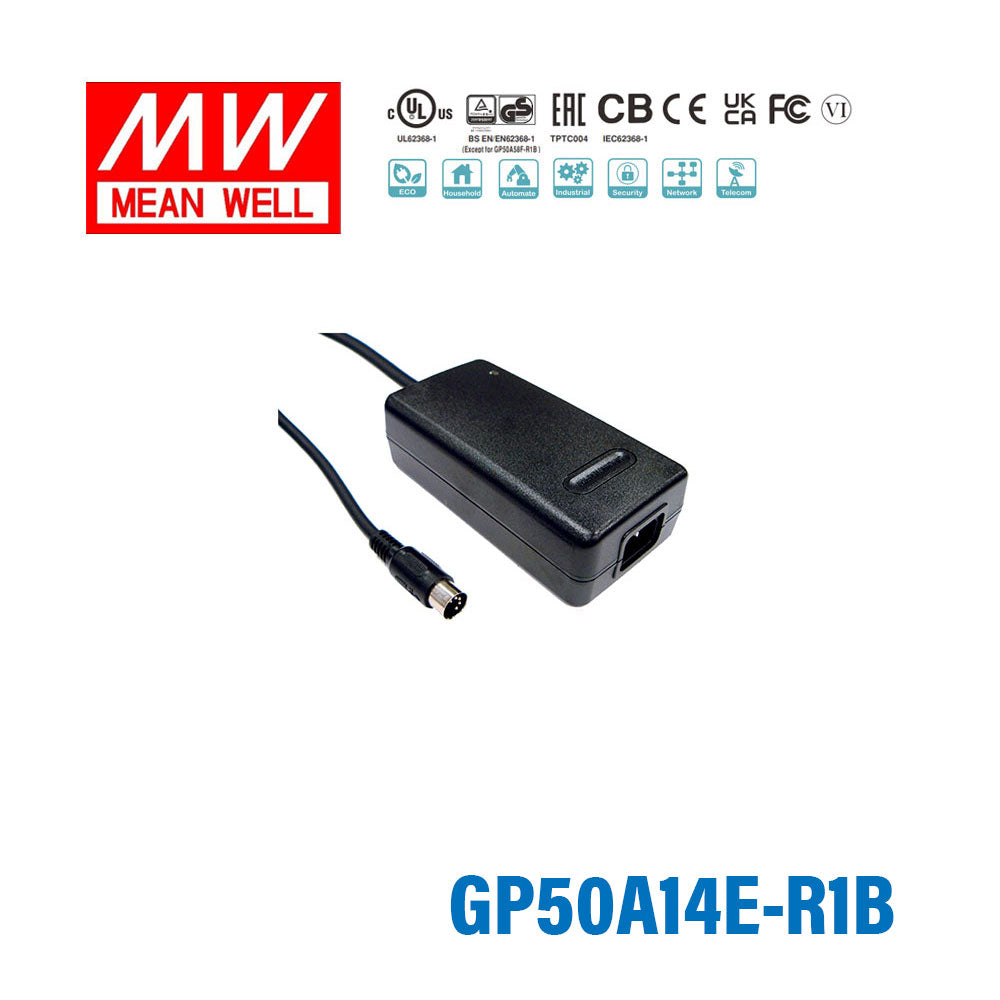

Mean Well GP50A14E-R1B Power Supply 50W 5V 15V -15V 4A
Overview
GP50A14E-R1B is the 5V 15V -15V output model of this series: rated power 50W, typical efficiency 84.5%.
GP50A is a 50W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level Ⅵ). Adopting Class I design and utilizing the standard inlet IEC320-C14, it is designed with FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. This series operates from 90~264VAC and offers three models with the output voltage sets +5V/+12V/-5V, +5V/+12V/-12V, +5V/+15V/-15V and can option +16V/+48V/-16V. Its supreme advantages includes the less-than-0.3W no load power consumption, the capability of working under -20~+70℃ ambient temperature, complete protection functions and three-year warranty and the compliance to the international safety certification such as CB, TUV, UL, CE and FCC. GP50A is a multiple-output green adaptor with high safety, high reliability and high quality.
Features
- Universal AC input / Full range
- 3 pole AC inlet IEC320-C14, Class I power unit
- No load power consumption < 0.3W
- Energy efficiency level Ⅵ
- Comply with EISA 2007/DoE
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- -20 ~ +70℃ working temperature
- LED indicator for power on
- Dual output available (optional)
- ± 16V /+48V also available for video system (optional, order NO. : GP50A58F-R1B)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GP50A14E
- DC VOLTAGENote.2
- 5V 15V -15V
- RATED SET CURRENT
- 4A 1.5A 0.5A
- CURRENT RANGE
- 0 ~ 4.0A 0.3 ~ 1.5A 0.1 ~0.5A
- RATED POWER
- 50W
- RIPPLE & NOISE (max.)Note.3
- 50mVp-p 150mVp-p 150mVp-p
- VOLTAGE TOLERANCENote.4
- ±5.0% ±3.0% -5% ~ +15%
- LINE REGULATIONNote.5
- ±1.0%
- LOAD REGULATIONNote.6
- ±5.0% ±3.0% ±5.0%
- SETUP, RISE, HOLD UP TIME
- 1500ms, 50ms, 20ms / 230VAC 2500ms, 50ms, 16ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 90 ~ 264VAC 135~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 84.5%
- AC CURRENT
- 1.6A / 100VAC 0.8A / 230VAC
- INRUSH CURRENT (max.)
- Cold start 35A/115VAC 65A / 230VAC
- LEAKAGE CURRENT (max.)
- 0.75mA / 240VAC
PROTECTION
- OVERLOAD
- 120 ~ 200% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- Protection type : Clamp by zener diode, output short
ENVIRONMENT
- WORKING TEMP.

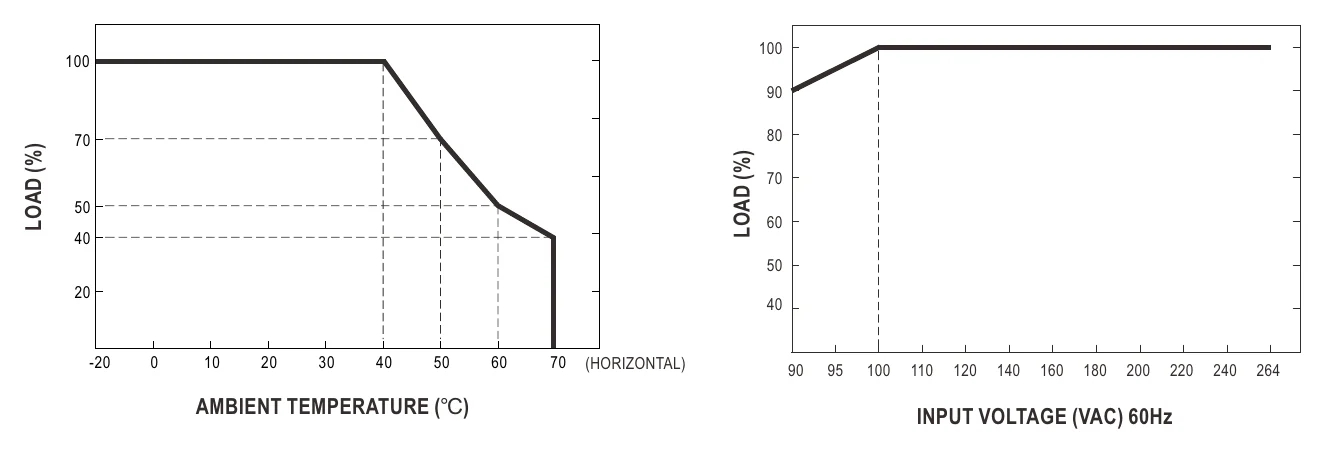

- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP50A58F-R1B ), EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:4242VDC , I/P-FG:2121VDC
- ISOLATION RESISTANCE
- I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT bursts BS EN/EN61000-4-4 Level 2, 1KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N, 2KV/L,N-PE Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS
- LIFE
- 3 years : 100% load 40℃, 8hours/day
- MTBF
- 280K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 146*75.5*43mm (L*W*H)
- PACKING
- 0.55kg; 36pcs / 21kg / CARTON
CONNECTOR
- PLUG

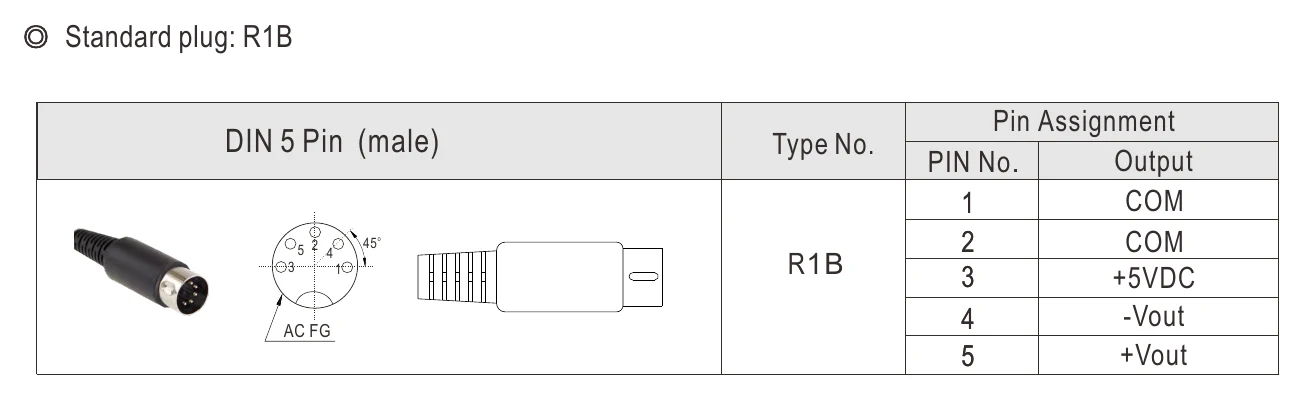

- See page 4
- CABLE

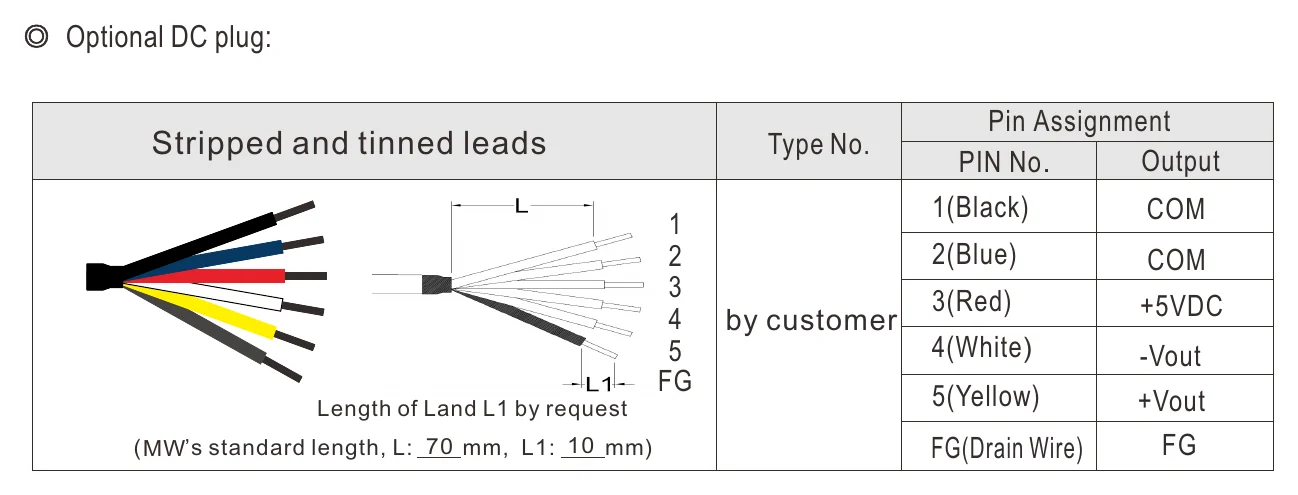

- See page 4
Test conditions and notes8
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.When measured between the light load (20% of rated load) and full load, the load regulation is within ±5% whereas the cross regulation is within ±15%.
- 7.Derating may be needed under low input voltages. Please check the static characteristics for more details.
- 8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

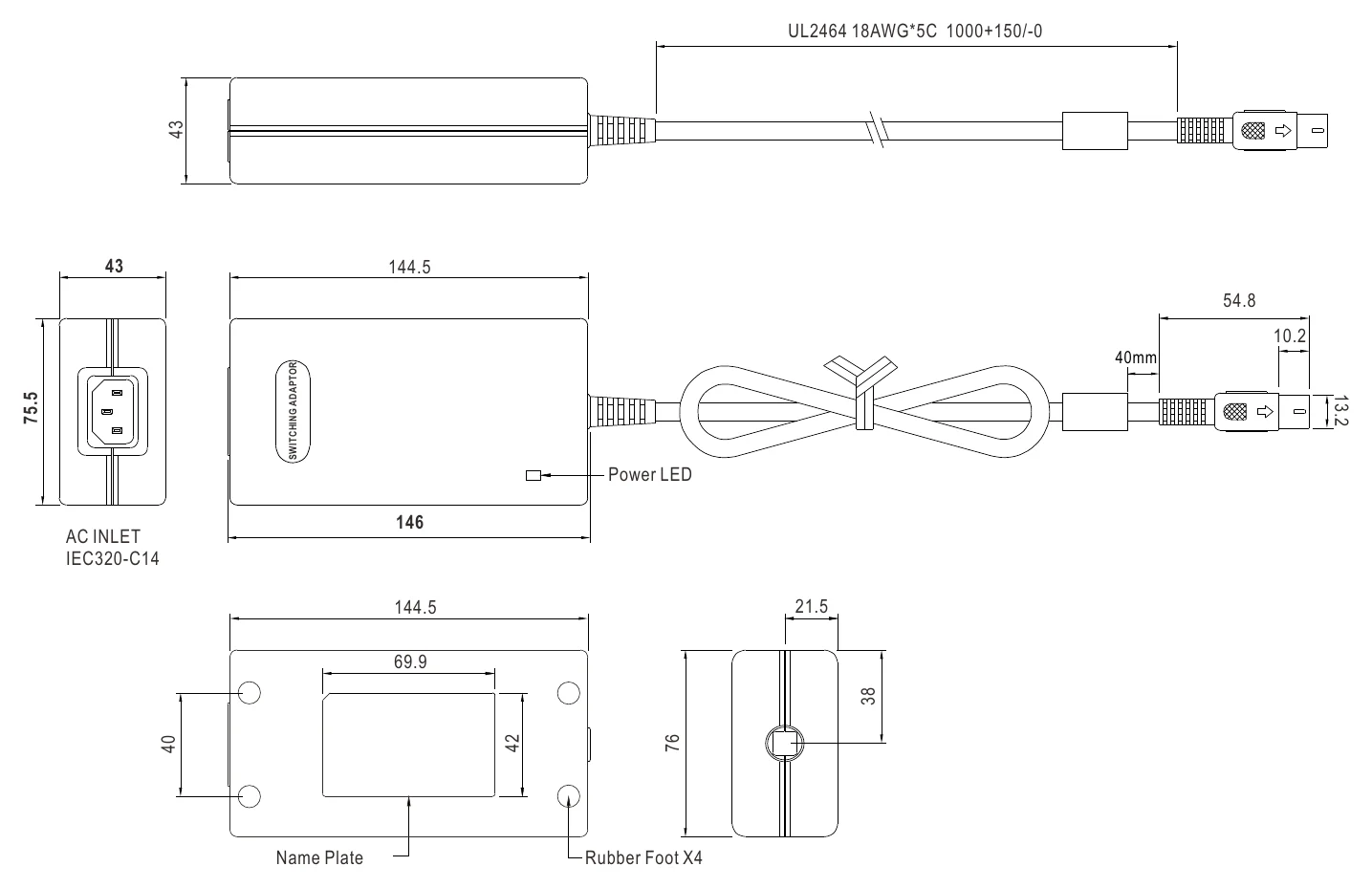

Technical drawings
Typical applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
Downloads
Certificates6
Test reports1
FAQ
Can I use the GP50A14E-R1B for a 5V embedded computing or controller application?
This model provides a 5V output rated at 4A, which matches the needs of many embedded computing and controller loads. Its total rated power is 50W, so the combined load on all outputs should remain within that overall limit.
Is this power supply suitable for 5V instrumentation or industrial monitoring electronics?
It is suited to regulated 5V DC applications where the load stays within the listed 4A output current. For instrumentation or monitoring electronics, the 5V output's ±5.0% voltage tolerance and 50mVp-p maximum ripple are the relevant characteristics in the provided specs.
Can this model be considered for systems that use 5V, 15V, and -15V rails?
Yes, the GP50A14E-R1B is a 50W triple output adaptor with 5V, 15V and -15V rails, which is relevant for equipment built around those DC rails. The specs list 5V at 0-4A, 15V at 0.3-1.5A and -15V at 0.1-0.5A, so check that each rail's load stays within its range, including the minimum load on 15V and -15V.
Is the GP50A14E-R1B intended for indoor equipment only?
The available specs support operation from -20°C to +70°C, with output derating at higher ambient temperatures per the derating curve, which suits a wide range of indoor equipment environments. No IP rating is listed, so the product data does not establish outdoor or washdown suitability.
Does this model support international AC input ranges?
Yes, the listed input range is 90-264VAC (47-63Hz), which covers a broad range of standard AC mains conditions; derating may be needed at low input voltages. The sheet lists IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1 and EAC TP TC 004 safety approvals and FCC Part 15 Class B emissions.
