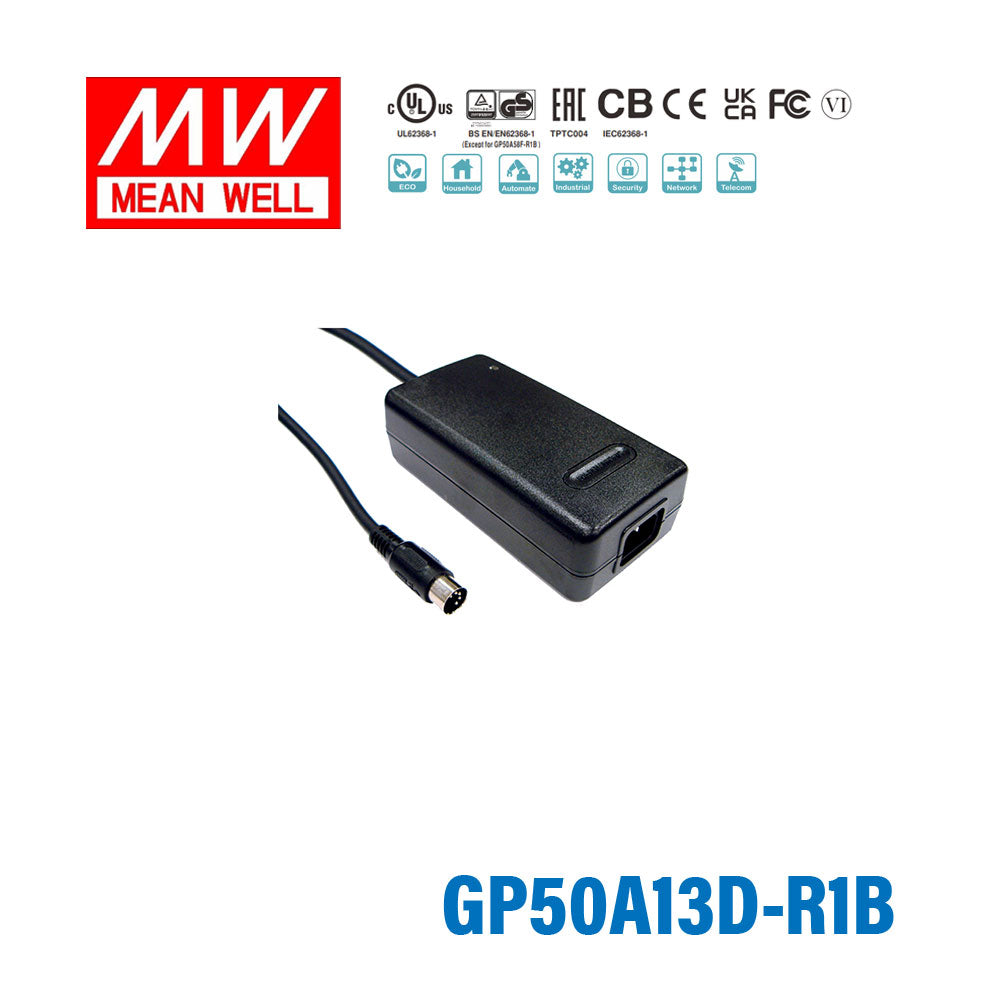

Mean Well GP50A13D-R1B Power Supply 50W 5V 12V -12V
The GP50A13D is a 50W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGP Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5.75 in
-
Width2.97 in
-
Height1.69 in
-
Weight1.21 lb
::specification::
Frequently Asked Questions
Can I use the GP50A13D-R1B for 5V control electronics in industrial equipment?
Yes, this unit is specified as a constant voltage 5V power supply with 4A output current. That makes it a fit for industrial control electronics or embedded assemblies that require stable 5V power within the 50W total rating.
Is this a good fit for 5V HMI, interface, or communications boards?
It can be appropriate for interface or communications hardware that runs on regulated 5V DC and draws no more than 4A. Its 90-264VAC input range also supports use where the available AC source may differ by region or installation.
Can this model support equipment that uses 5V, 12V, and -12V rails?
The product name identifies this supply as a 50W 5V 12V -12V model, which is relevant for equipment built around those rail types. The provided electrical output spec lists 5V at 4A, so the complete rail loading should be confirmed in the detailed product data before final selection.
Can the GP50A13D-R1B be used in outdoor or exposed locations?
The provided specifications list an operating temperature range of -20°C to +70°C, but they do not list an IP rating. Based on that product data alone, outdoor or exposed-environment suitability is not indicated.
What makes this model suitable for broad AC input conditions?
This power supply accepts 90-264VAC input, which covers a wide standard AC input range. The supplied specs also list CB, CE, EAC, FCC, TÜV, and UL certifications and a 3-year warranty.
