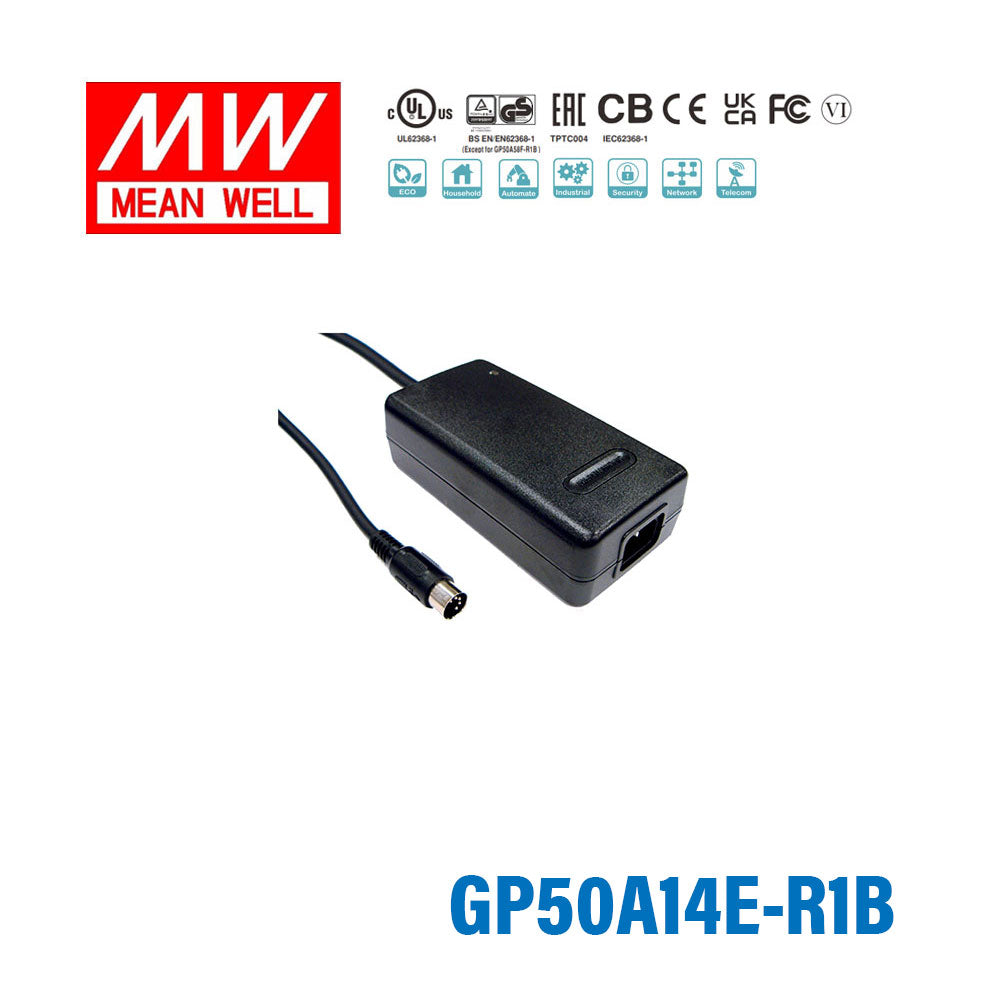

Mean Well GP50A14E-R1B Power Supply 50W 5V 15V -15V
The GP50A14E is a 50W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGP Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5.75 in
-
Width2.97 in
-
Height1.69 in
-
Weight1.21 lb
::specification::
Frequently Asked Questions
Can I use the GP50A14E-R1B for a 5V embedded computing or controller application?
This model provides constant voltage 5V output at 4A, which matches the needs of many embedded computing and controller loads. Its total rated power is 50W, so the connected load should remain within that overall limit.
Is this power supply suitable for 5V instrumentation or industrial monitoring electronics?
It is suited to regulated 5V DC applications where the load stays within the listed 4A output current. For instrumentation or monitoring electronics, the constant voltage output is the relevant characteristic in the provided specs.
Can this model be considered for systems that use 5V, 15V, and -15V rails?
The product name identifies the GP50A14E-R1B as a 50W 5V 15V -15V power supply, which is relevant for equipment built around those DC rails. The provided output specification explicitly lists 5V at 4A, so full rail-by-rail requirements should be verified against the complete product documentation.
Is the GP50A14E-R1B intended for indoor equipment only?
The available specs support operation from -20°C to +70°C, which is useful for a wide range of indoor equipment environments. No IP rating is listed, so the product data does not establish outdoor or washdown suitability.
Does this model support international AC input ranges?
Yes, the listed input range is 90-264VAC, which covers a broad range of standard AC mains conditions. The supplied data also lists CB, CE, EAC, FCC, TÜV, and UL certifications along with a 3-year warranty.
