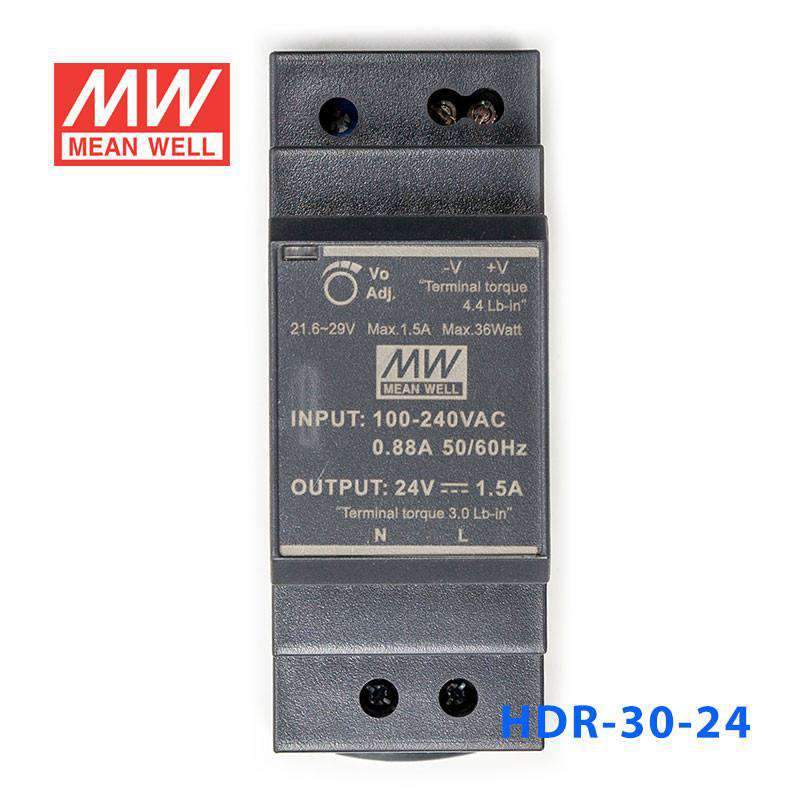

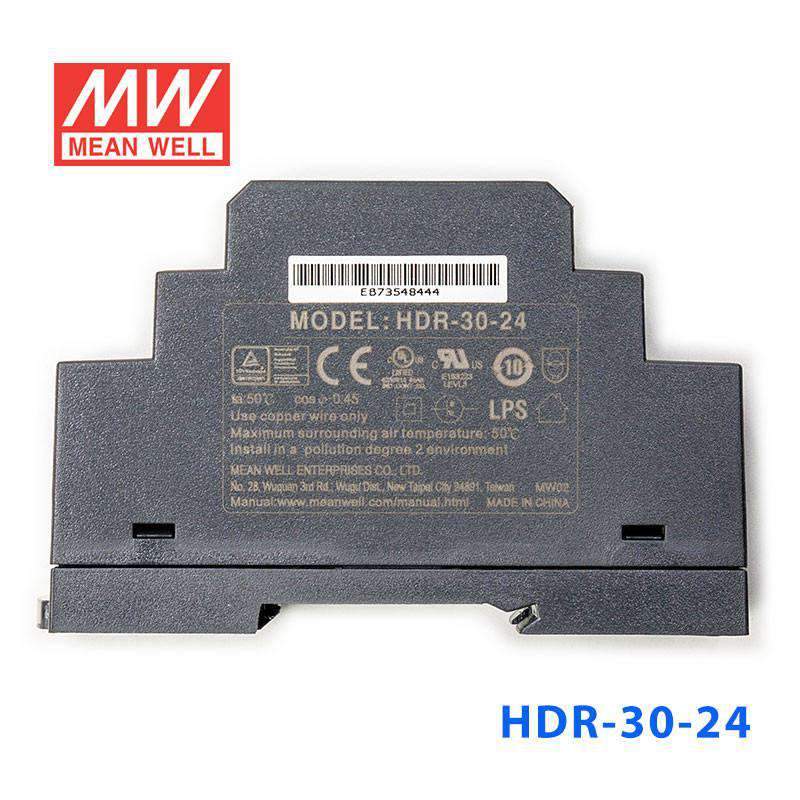

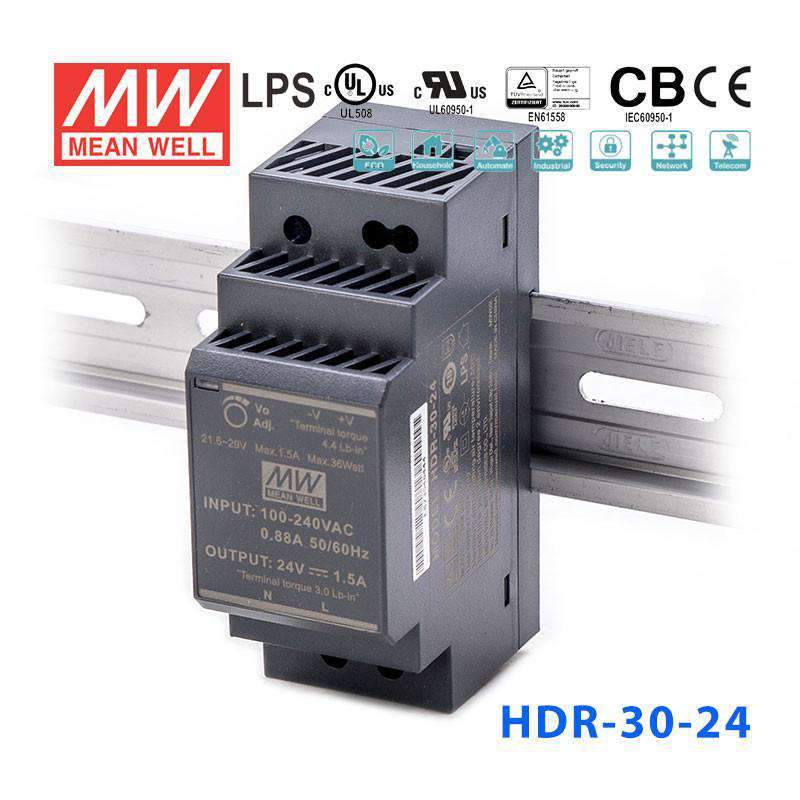

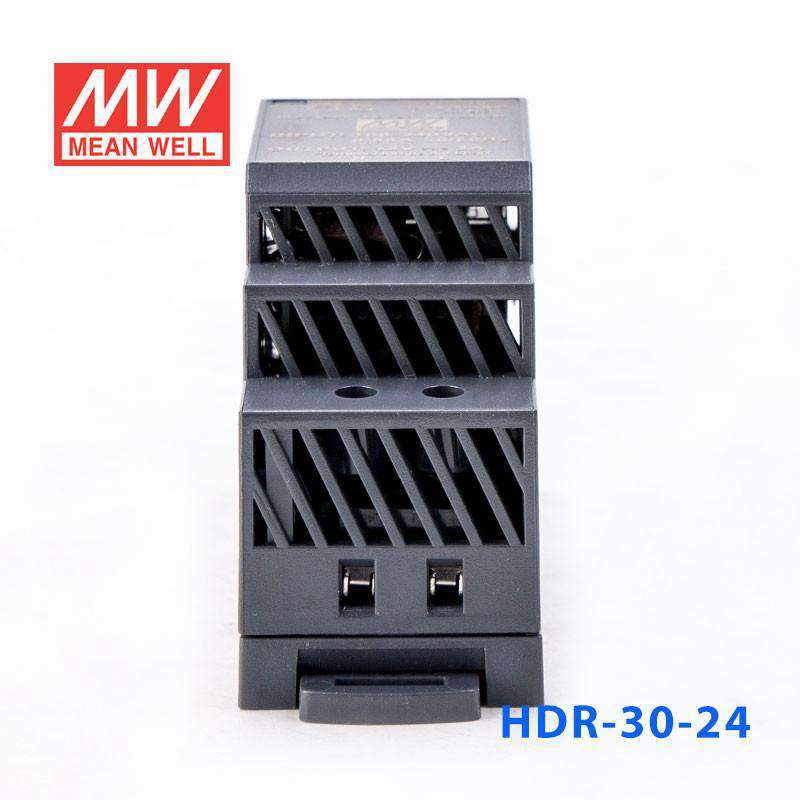

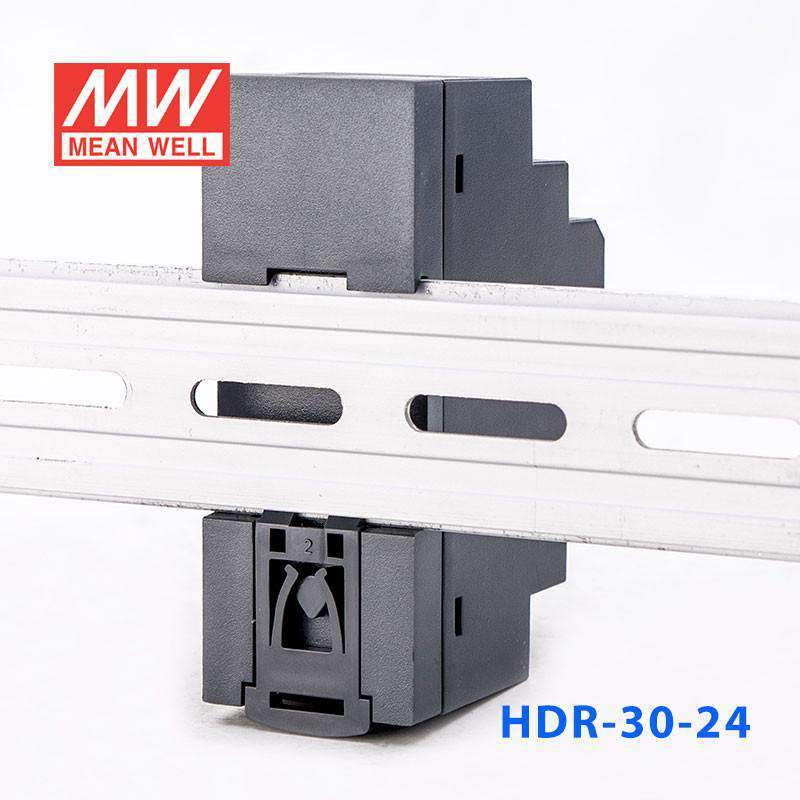

Mean Well HDR-30-24 Ultra Slim Step Shape Power Supply 30W 24V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-30-24 Ultra Slim Step Shape Power Supply 30W 24V - DI...
The HDR-30 is a 30W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Rated Current1.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height1.38 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What 24V DIN rail applications is the HDR-30-24 appropriate for?
The HDR-30-24 delivers 36W at 1.5A on a 24VDC bus, suitable for powering individual PLC modules, single-zone building management sensors, or small fieldbus nodes in DIN rail control panels. The slim step-shape body conserves rail space compared to block-style PSUs.
How does the HDR-30-24 compare to the HDR-60-24 and HDR-100-24 for 24V applications?
HDR-30-24: 36W / 1.5A. HDR-60-24: 60W / 2.5A. HDR-100-24: 92W / 3.83A. HDR-100-24N: 100.8W / 4.2A. HDR-150-24: 127.4W / 5.31A. All mount on DIN rail but increase in physical size as wattage rises.
What is the no-load power draw of the HDR-30-24?
No-load power consumption is less than 0.3W. The unit is isolation class II and features an adjustable DC output voltage, both standard across the HDR-30 series.
Is the HDR-30-24 rated for cold-start environments?
The HDR-30-24 operates from -30°C to +70°C, supporting cold-start scenarios in unheated enclosures. Installation inside a sealed cabinet is required since the unit has no IP rating.
