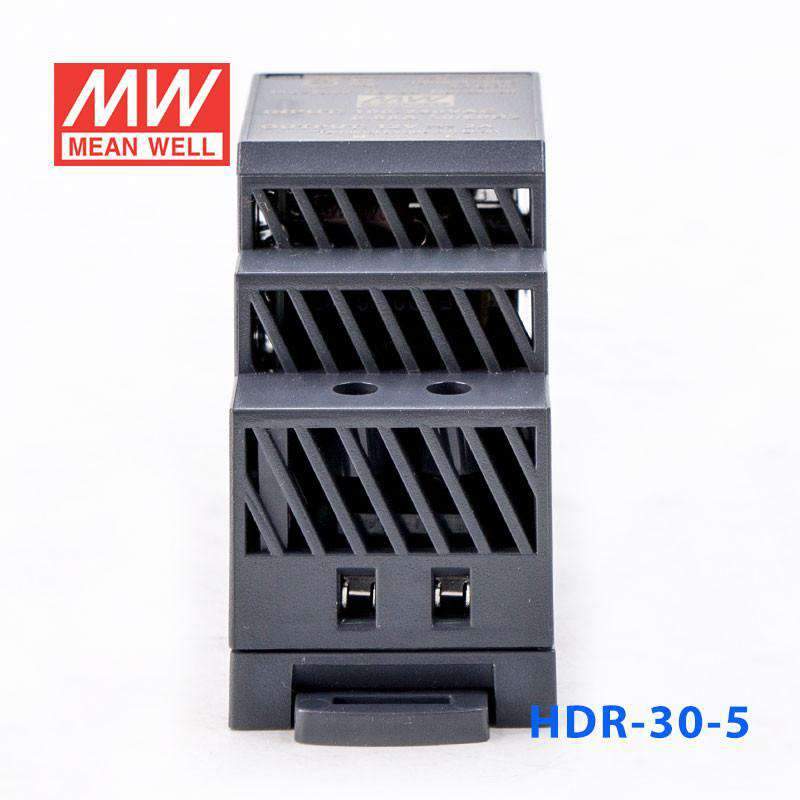

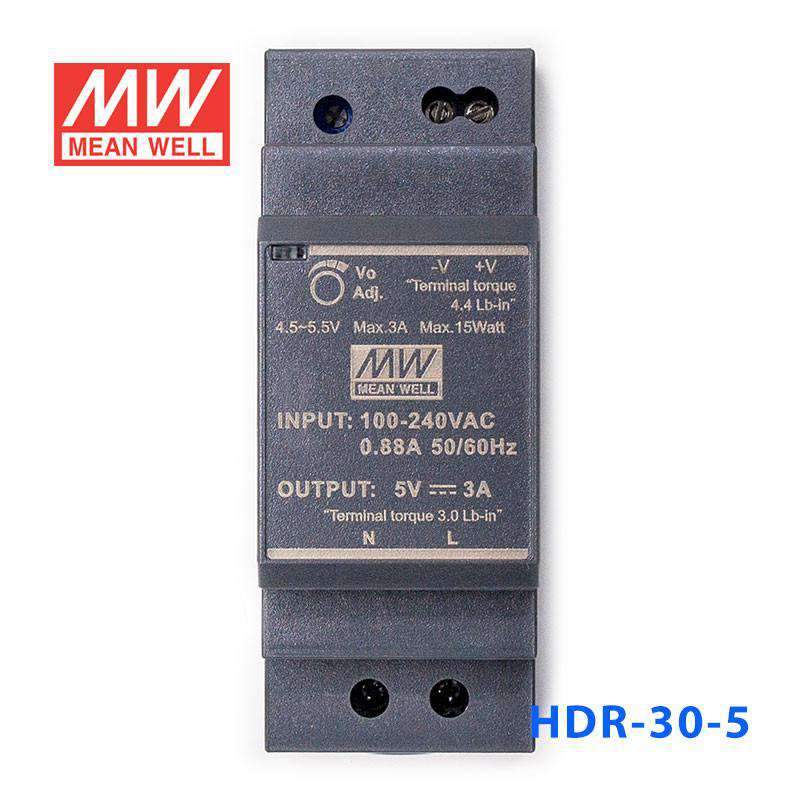

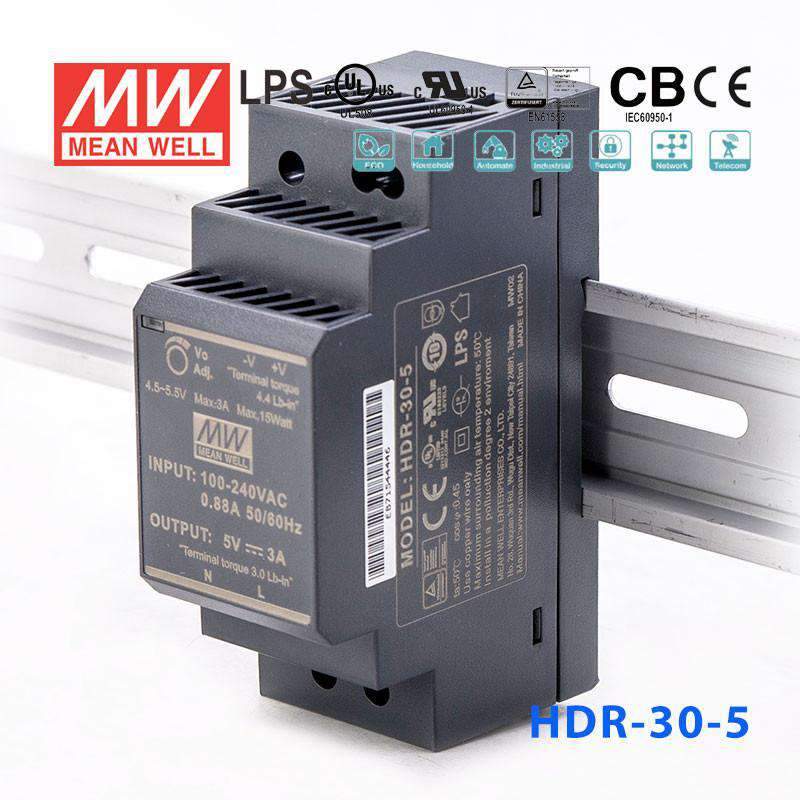

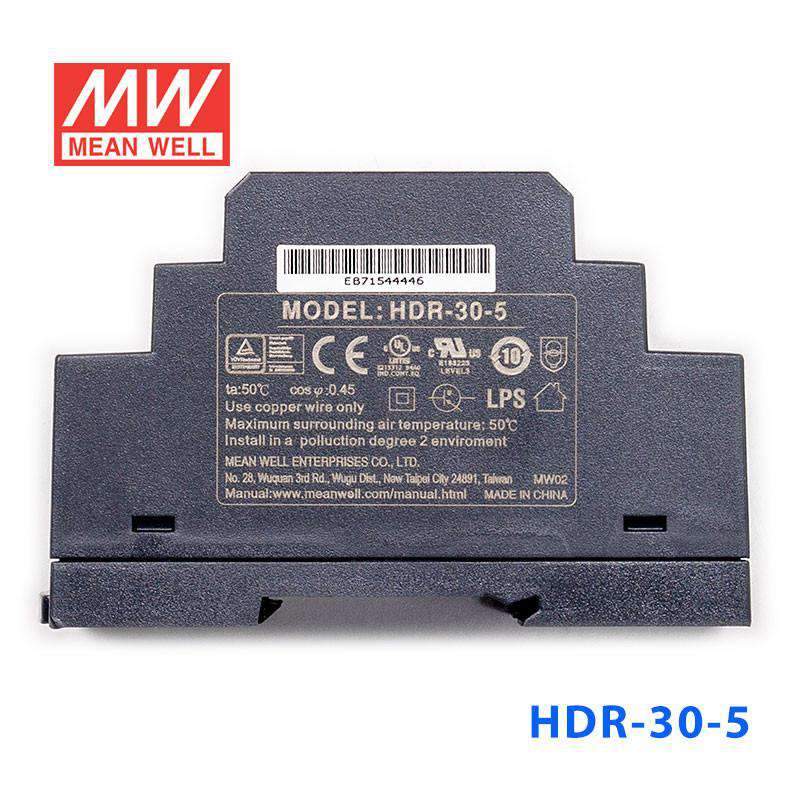

Mean Well HDR-30-5 Ultra Slim Step Shape Power Supply 15W 5V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-30-5 Ultra Slim Step Shape Power Supply 15W 5V - DIN ...
Description
Description
Features
| Universal AC input / Full range |

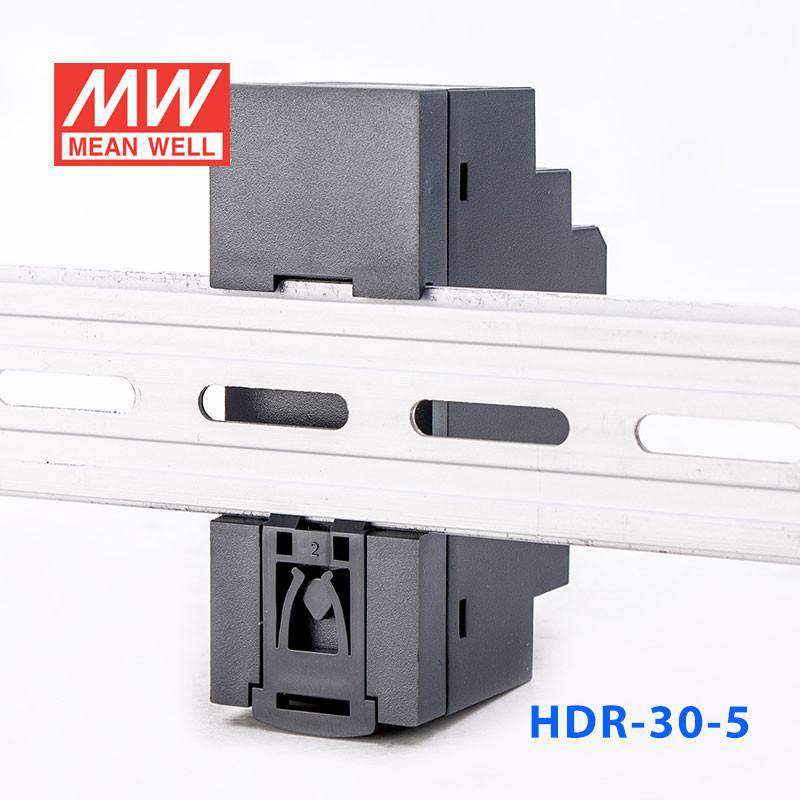

| Installed on DIN rail TS35 / 7.5 or 15 |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.3W |
| Ultra slim design with 35mm(2SU) width |
| Isolation class II |
| Cooling by free air convection |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current | Cold start 25A at 115VAC, 45A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 110%~145% constant current limiting, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Setup, rise, hold up time | 500ms, 50ms, 30ms |
| Withstand voltage | I/P-O/P:4kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | UL508, UL,IEC 62368-1, EN61588-1,2-16 |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | I/P: 2 poles, O/P: 2 poles screw DIN terminal |
| Dimension (LxWxH) | 35x90x54.5 |
| Packing | 96pcs / 12.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height1.38 in
-
Weight0.29 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 5V control panel loads is the HDR-30-5 sized for?
The HDR-30-5 outputs 15W at 3A on a 5VDC bus, suited for powering microcontroller clusters, logic-level I/O cards, or small communication modules inside DIN rail panels. It is the mid-range 5V option in the HDR series and mounts on standard 35mm rail.
How does the HDR-30-5 compare to the HDR-15-5 and HDR-60-5?
HDR-15-5: 12W / 2.4A at 5V. HDR-30-5: 15W / 3A at 5V. HDR-60-5: 32.5W / 6.5A at 5V. No 5V model exists in the HDR-100 or HDR-150 series. The HDR-30-5 provides the middle current step between the 15-class and 60-class 5V options.
What is the standby power consumption and isolation class of the HDR-30-5?
No-load power consumption is less than 0.3W. The HDR-30-5 uses isolation class II and features an adjustable DC output, consistent with all models in the HDR-30 series.
What environmental conditions can the HDR-30-5 handle inside a control enclosure?
The HDR-30-5 is rated -30°C to +70°C and requires installation inside a control cabinet or enclosure. Its no-load draw of less than 0.3W also minimizes heat generation in small, tight enclosures.
