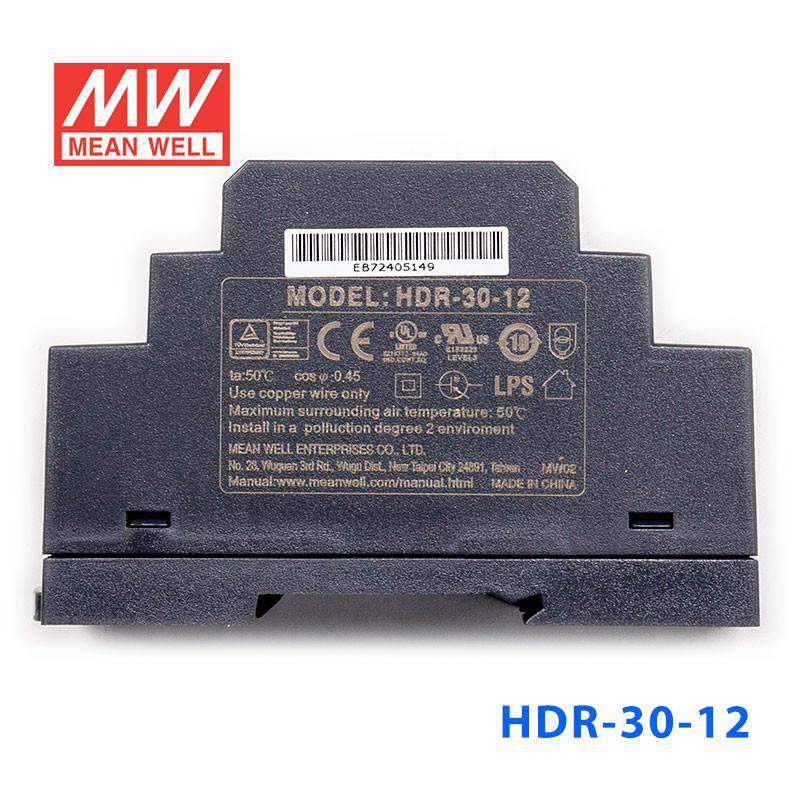

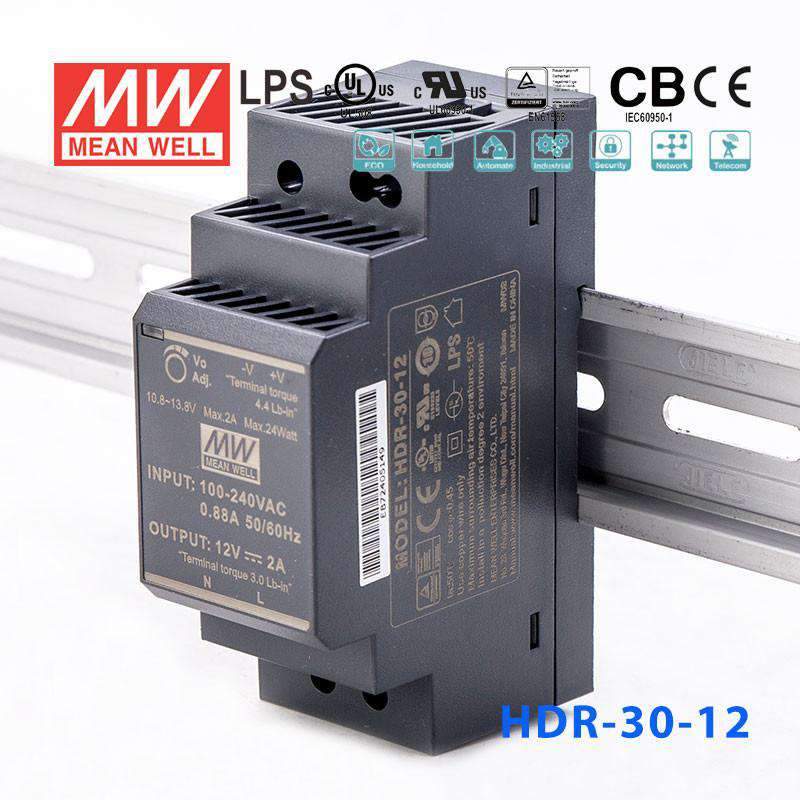

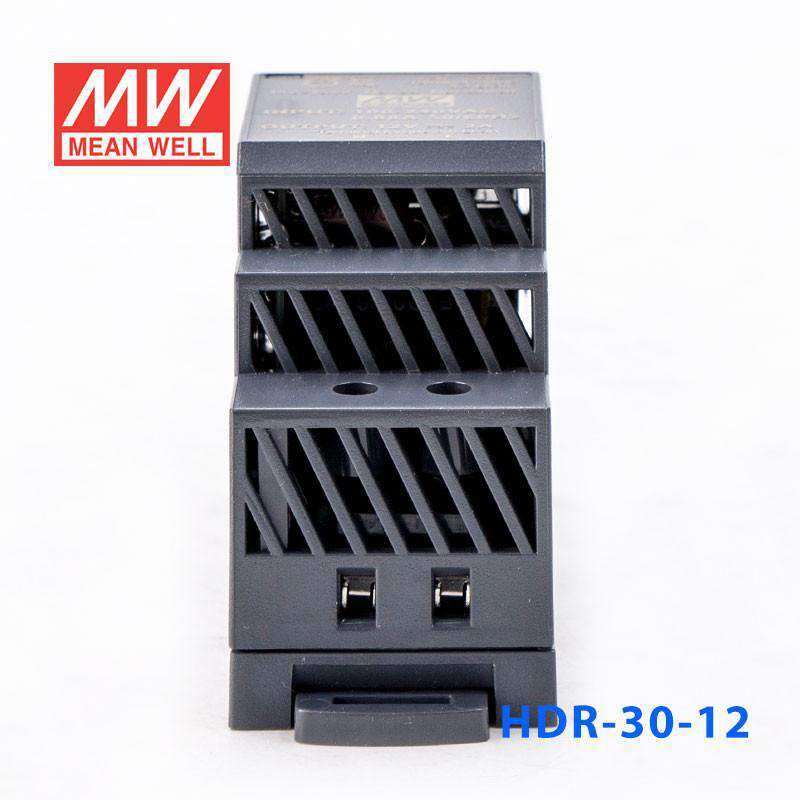

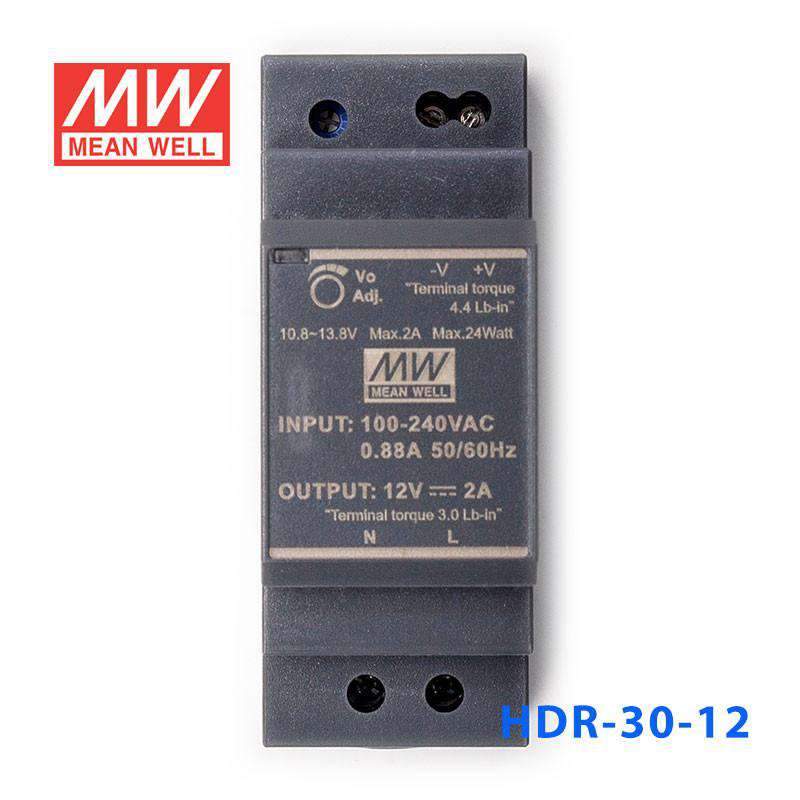

Mean Well HDR-30-12 Ultra Slim Step Shape Power Supply 30W 12V - DIN Rail

step size, isolation class II, DC output adjustable, no load power consumption
SKU:
HDR-30-12

Model
$16.85 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

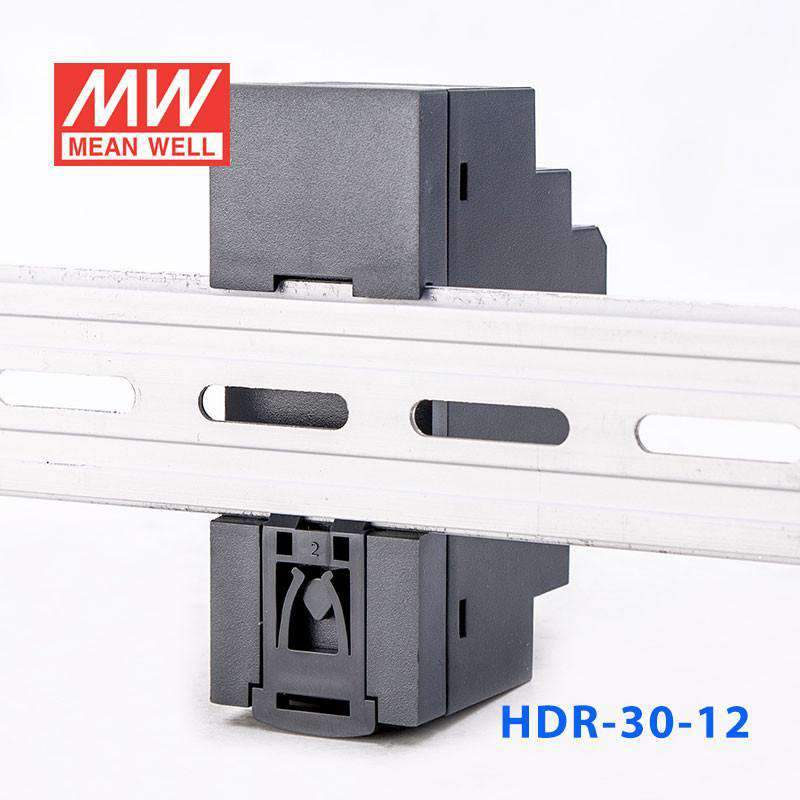

Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.3W
Ultra slim design with 35mm(2SU) width
Isolation class II
Cooling by free air convection
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start 25A at 115VAC, 45A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 110%~145% constant current limiting, auto-recovery
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 500ms, 50ms, 30ms
Withstand voltage I/P-O/P:4kVAC
Working temperature -30~+70°C (refer to output derating curve)
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards UL508, UL,IEC 62368-1, EN61588-1,2-16
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection I/P: 2 poles, O/P: 2 poles screw DIN terminal
Dimension (LxWxH) 35x90x54.5
Packing 96pcs / 12.5kg

Specifications

  • Brand
    Mean Well
  • Series
    HDR Series
  • Power Rating
    24 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    2 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Standards Met
    BSMI,CB,CE,cUL,EAC,RCM,TUV,UL
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    3.54 in
  • Width
    2.15 in
  • Height
    1.38 in
  • Weight
    0.26 lb
