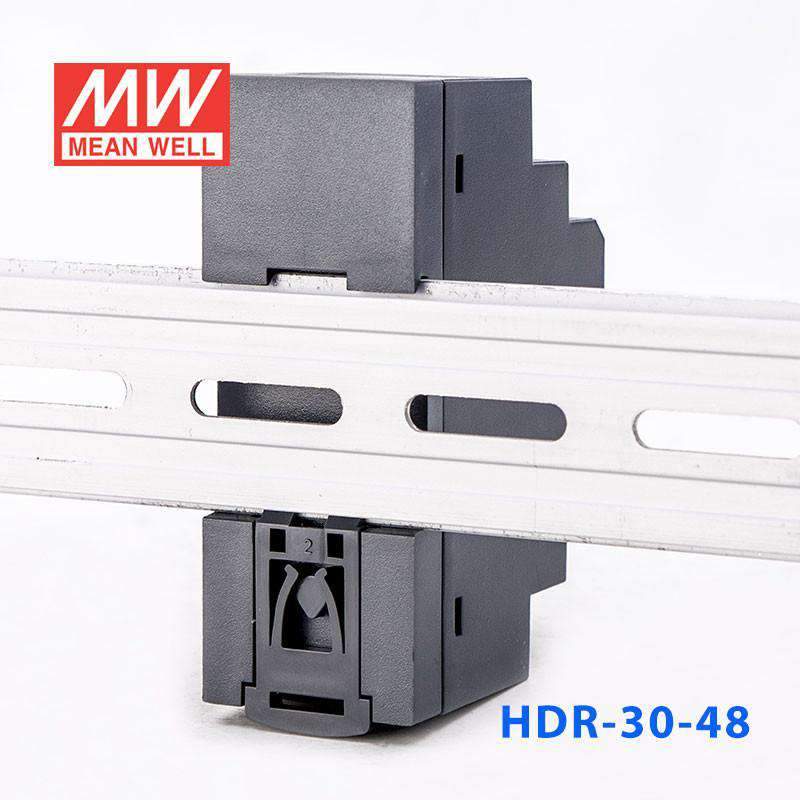

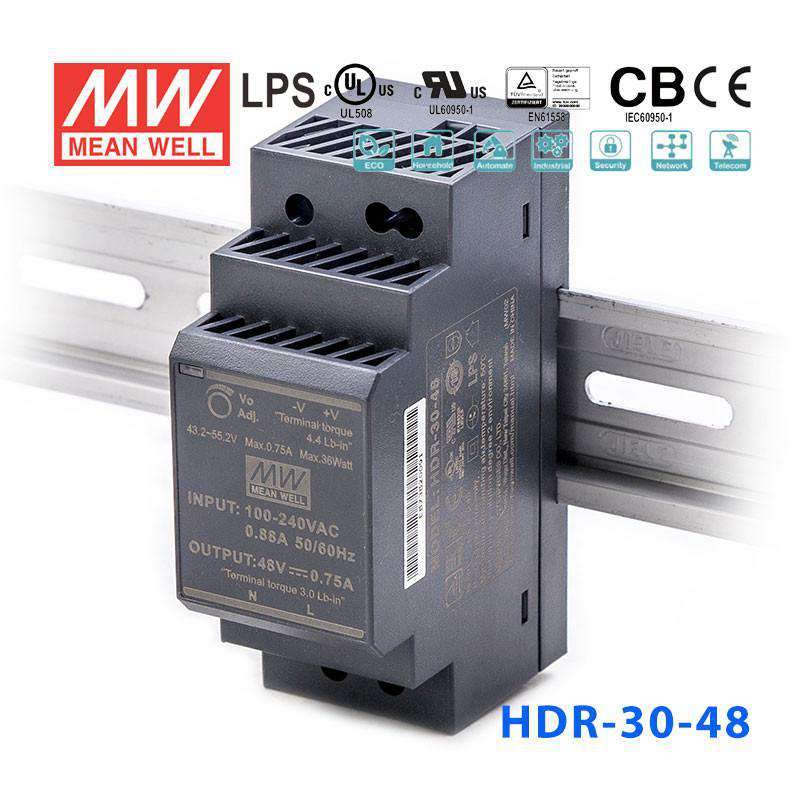

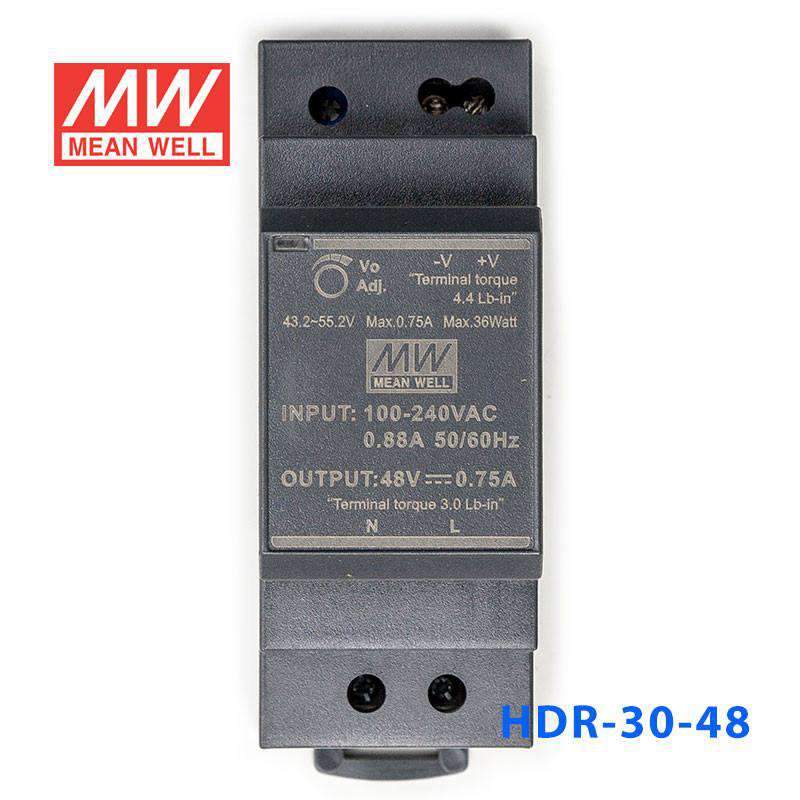

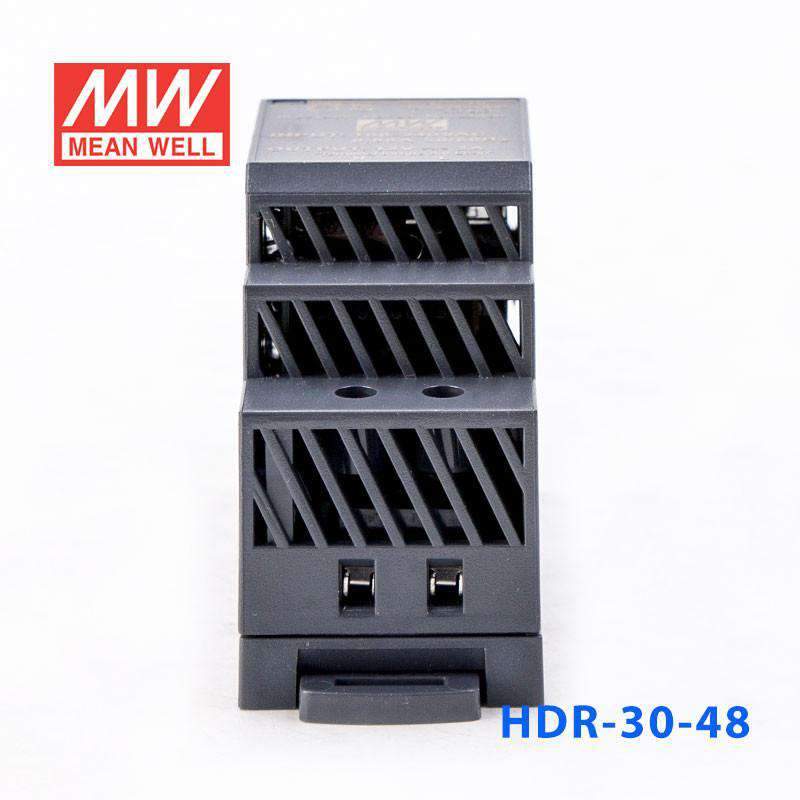

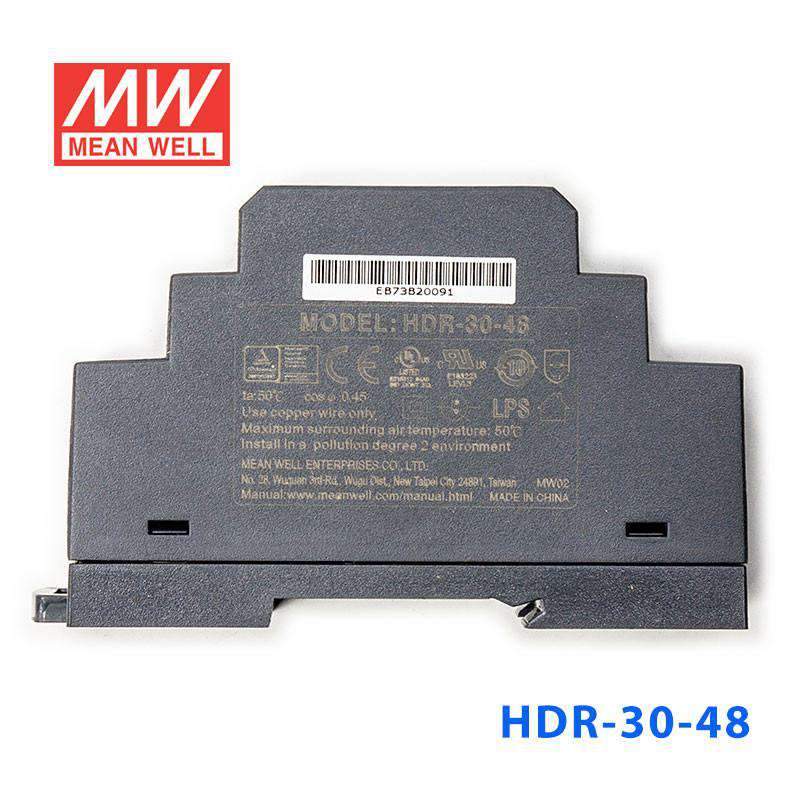

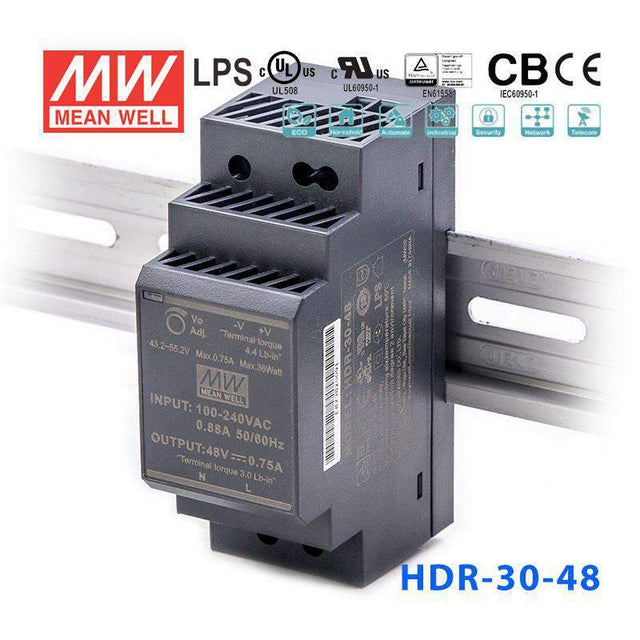

Mean Well HDR-30-48 Ultra Slim Step Shape Power Supply 30W 48V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-30-48 Ultra Slim Step Shape Power Supply 30W 48V - DI...
The HDR-30 is a 30W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating36 Watt
-
Output Voltage48 Volt
-
Rated Current0.75 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height1.38 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What 48V light-load applications can the HDR-30-48 power in a control panel?
At 36W and 0.75A on a 48V bus, the HDR-30-48 suits low-current 48V loads such as isolated communication interfaces, small telecom auxiliaries, and single 48V field device supplies in DIN rail enclosures. The step-shape slim form factor suits tight panel layouts.
How does the HDR-30-48 compare to the HDR-60-48 and HDR-100-48 in the 48V group?
HDR-30-48: 36W / 0.75A. HDR-60-48: 60W / 1.25A. HDR-100-48: 92.2W / 1.92A. HDR-100-48N: 100.8W / 2.1A. HDR-150-48: 130.6W / 2.72A. All use DIN rail mounting; the HDR-30-48 is the smallest-footprint option in the 48V range.
What certifications does the HDR-30-48 carry?
The HDR-30-48 holds BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, and UL certifications with a 3-year warranty. These cover the major North American, European, and Australian compliance requirements.
Can the HDR-30-48 operate in enclosures exposed to cold temperatures?
The HDR-30-48 is rated -30°C to +70°C, supporting operation in cold-start cabinet conditions. It must be enclosed in a suitable panel since it has no self-contained IP rating.
