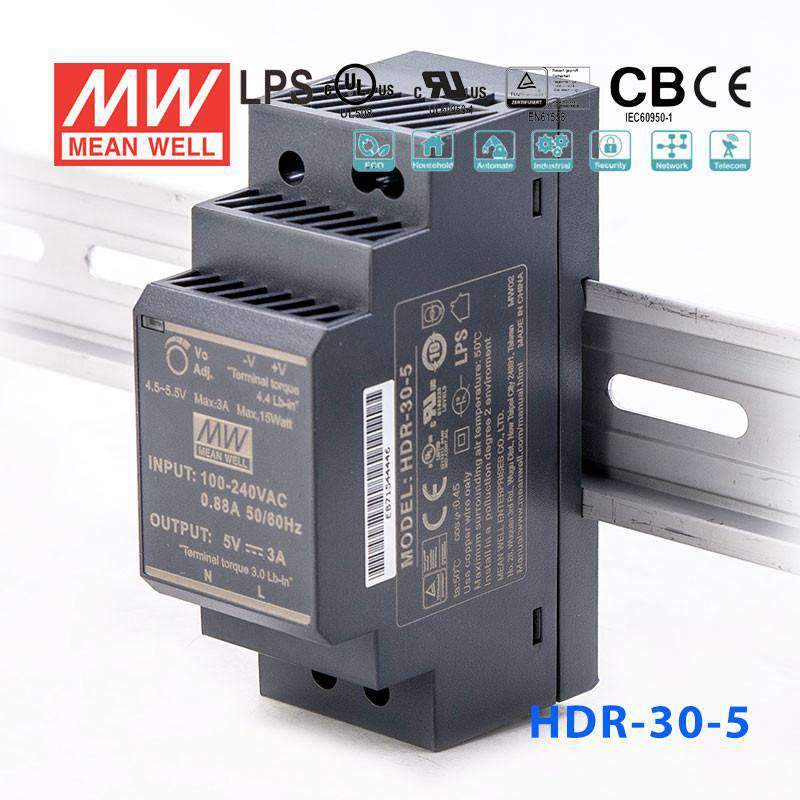

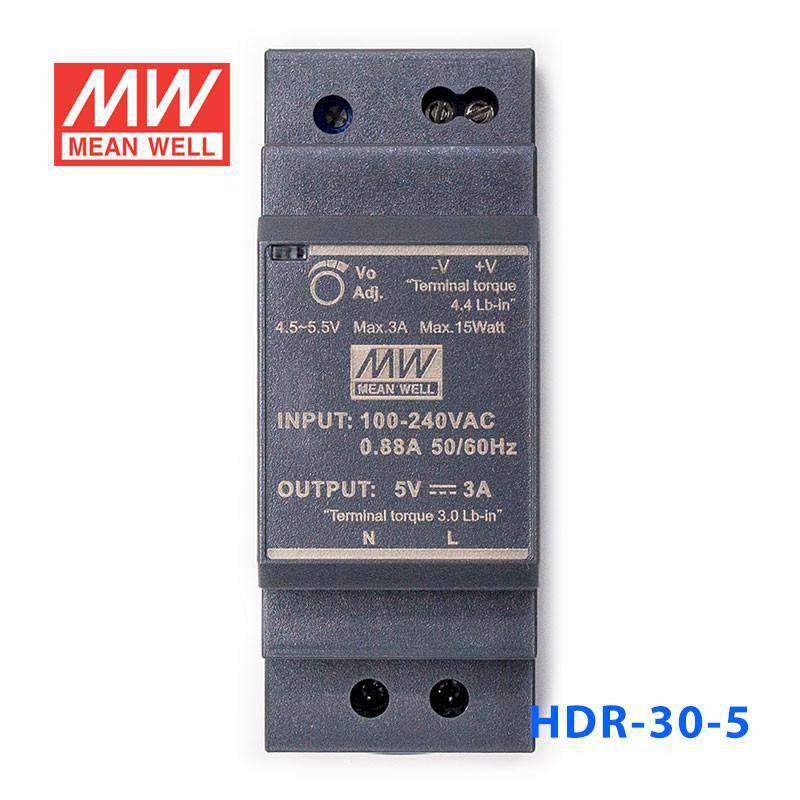

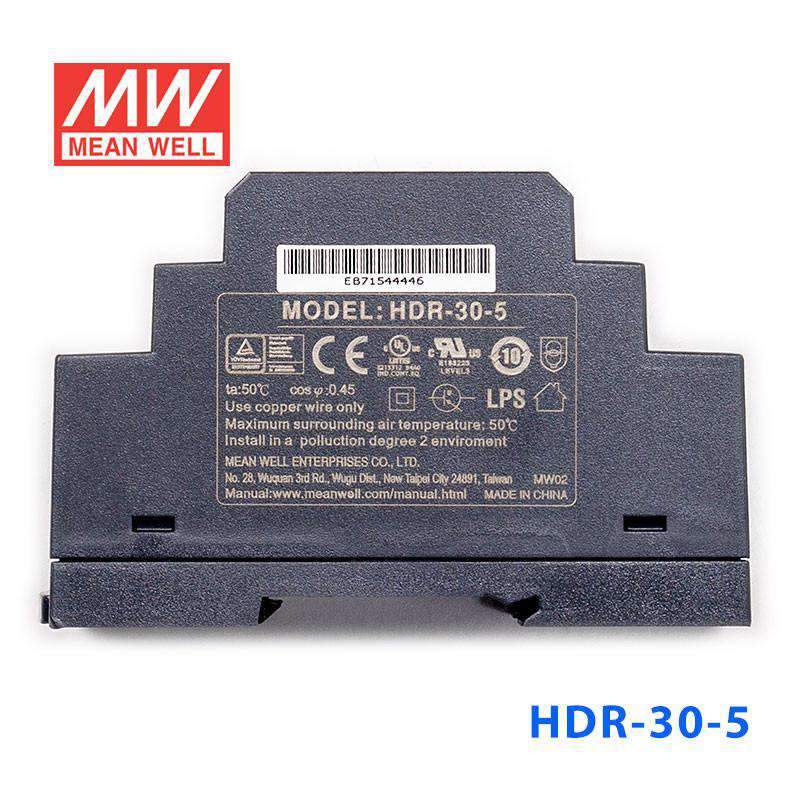

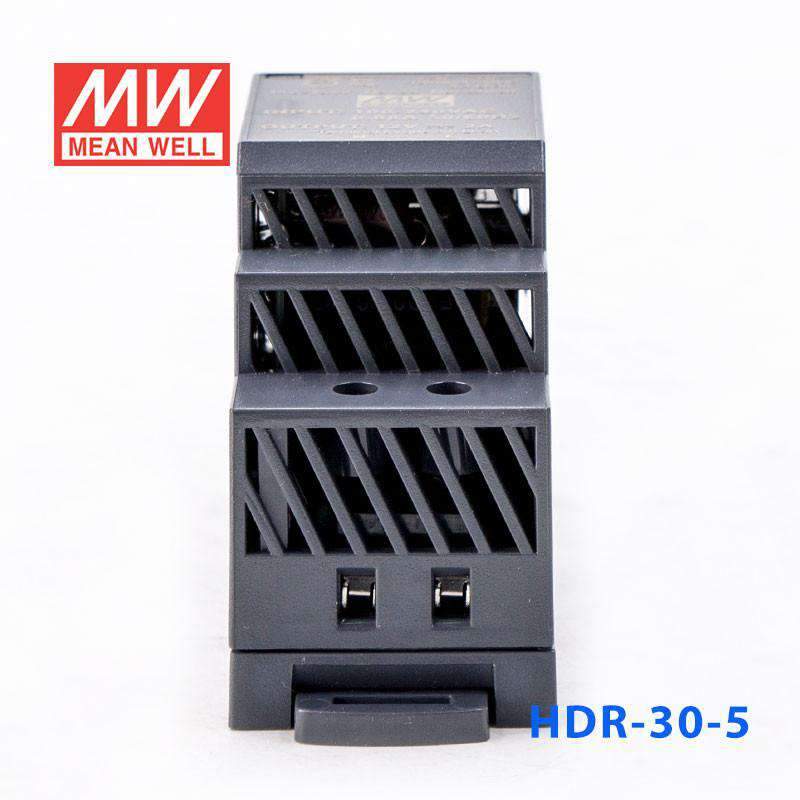

Mean Well HDR-30-5 Ultra Slim Step Shape Power Supply 15W 5V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-30-5 Ultra Slim Step Shape Power Supply 15W 5V - DIN ...
The HDR-30 is a 30W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height1.38 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What 5V control panel loads is the HDR-30-5 sized for?

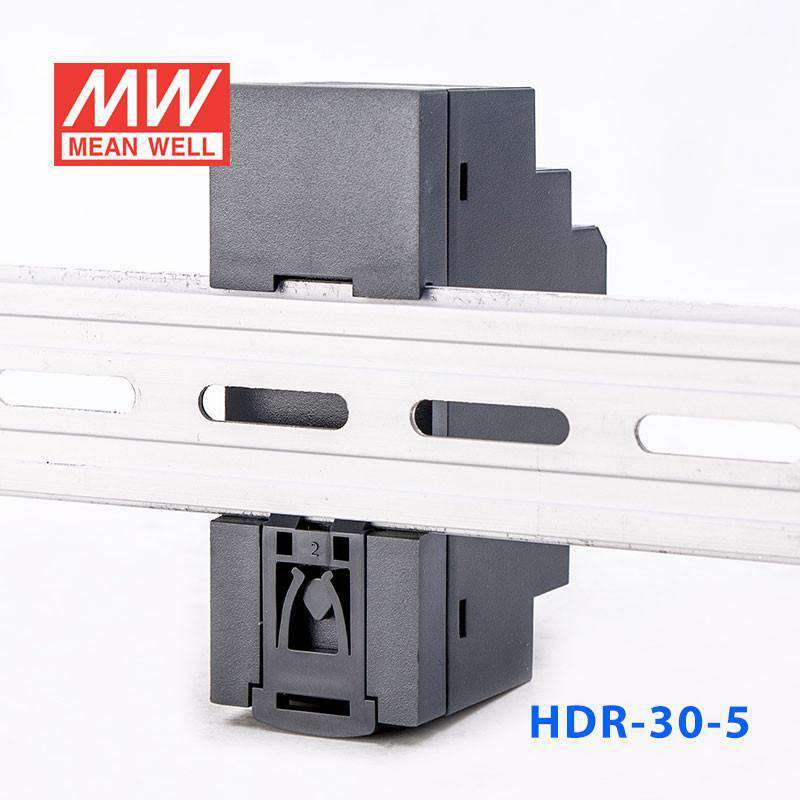

The HDR-30-5 outputs 15W at 3A on a 5VDC bus, suited for powering microcontroller clusters, logic-level I/O cards, or small communication modules inside DIN rail panels. It is the mid-range 5V option in the HDR series and mounts on standard 35mm rail.
How does the HDR-30-5 compare to the HDR-15-5 and HDR-60-5?
HDR-15-5: 12W / 2.4A at 5V. HDR-30-5: 15W / 3A at 5V. HDR-60-5: 32.5W / 6.5A at 5V. No 5V model exists in the HDR-100 or HDR-150 series. The HDR-30-5 provides the middle current step between the 15-class and 60-class 5V options.
What is the standby power consumption and isolation class of the HDR-30-5?
No-load power consumption is less than 0.3W. The HDR-30-5 uses isolation class II and features an adjustable DC output, consistent with all models in the HDR-30 series.
What environmental conditions can the HDR-30-5 handle inside a control enclosure?
The HDR-30-5 is rated -30°C to +70°C and requires installation inside a control cabinet or enclosure. Its no-load draw of less than 0.3W also minimizes heat generation in small, tight enclosures.
