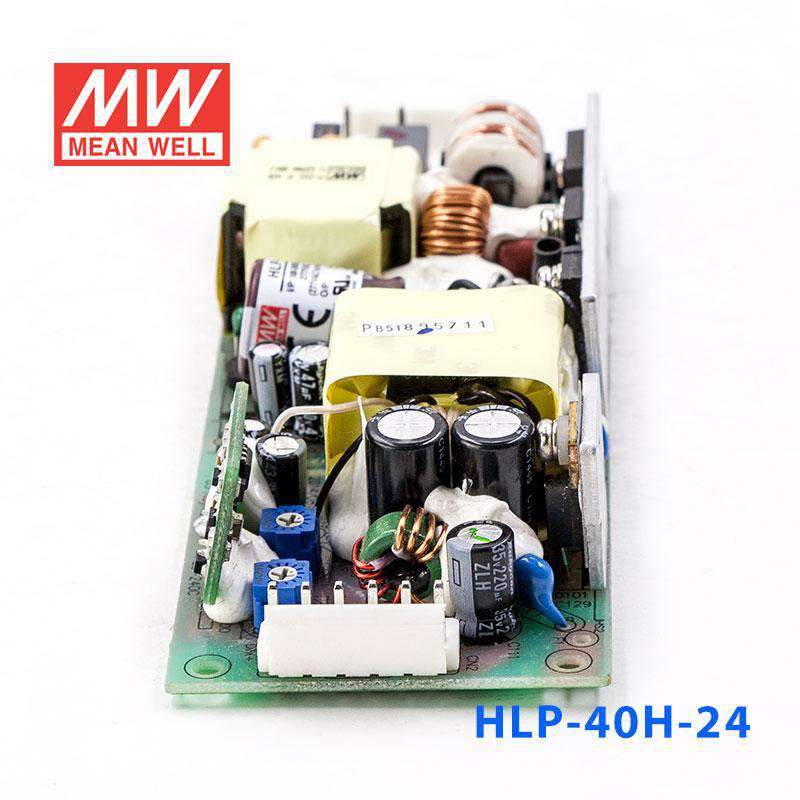

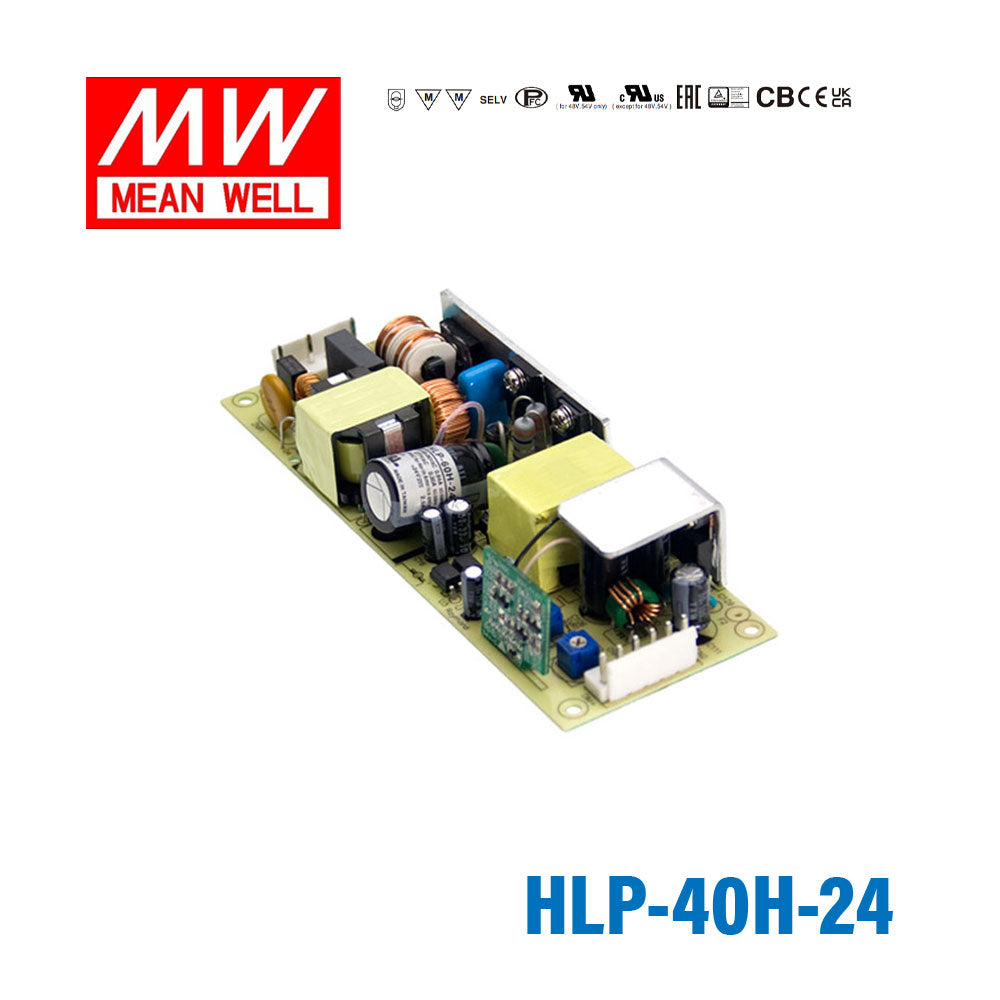

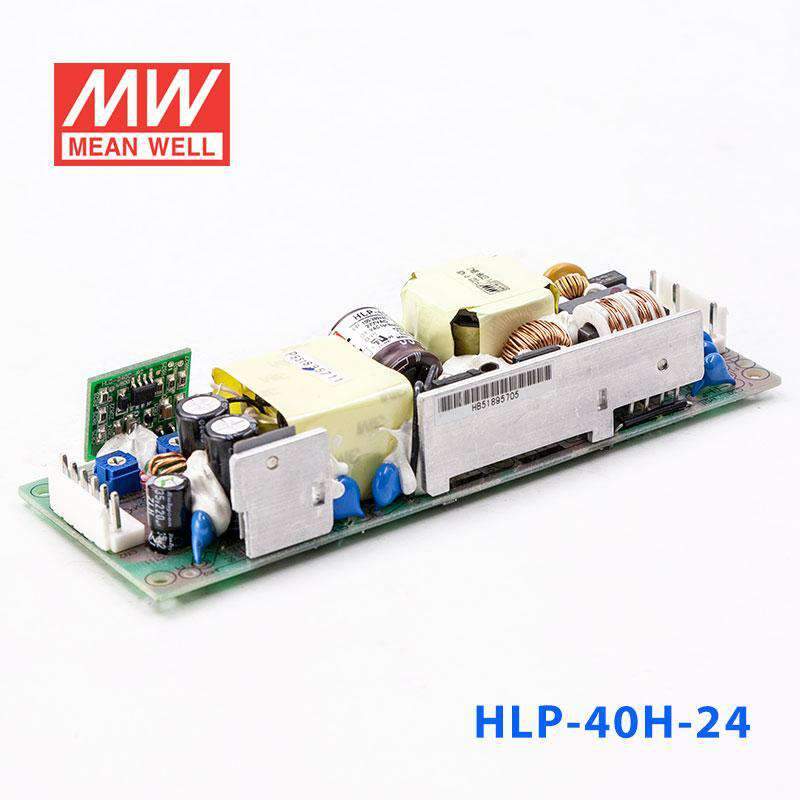

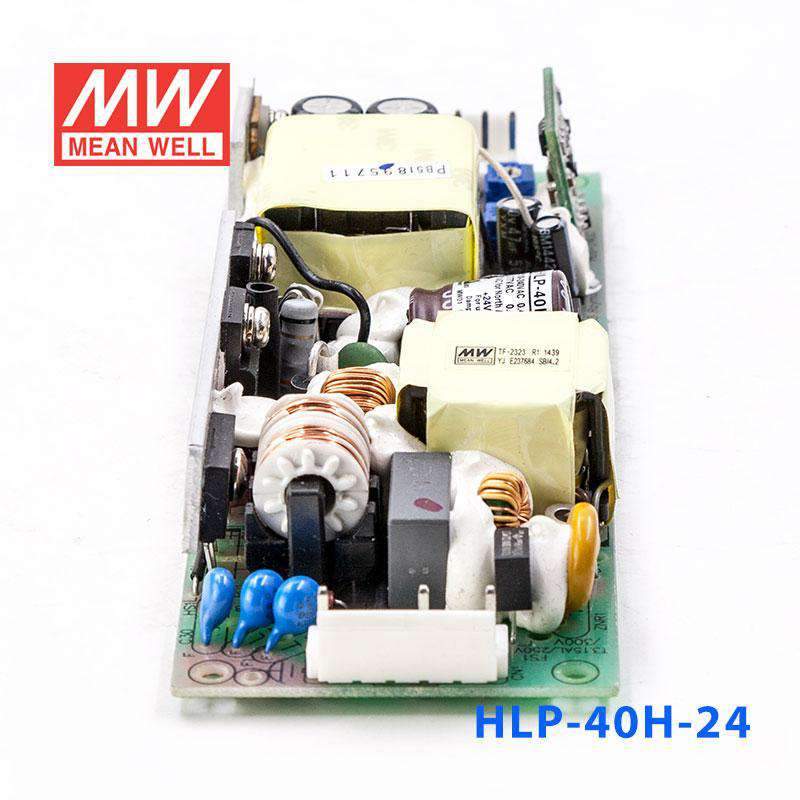

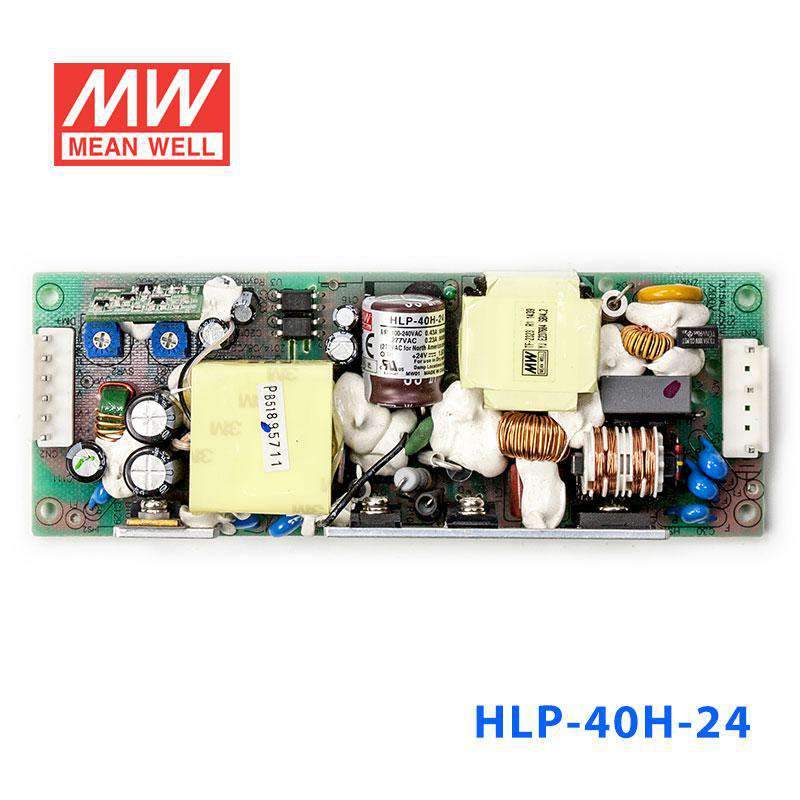

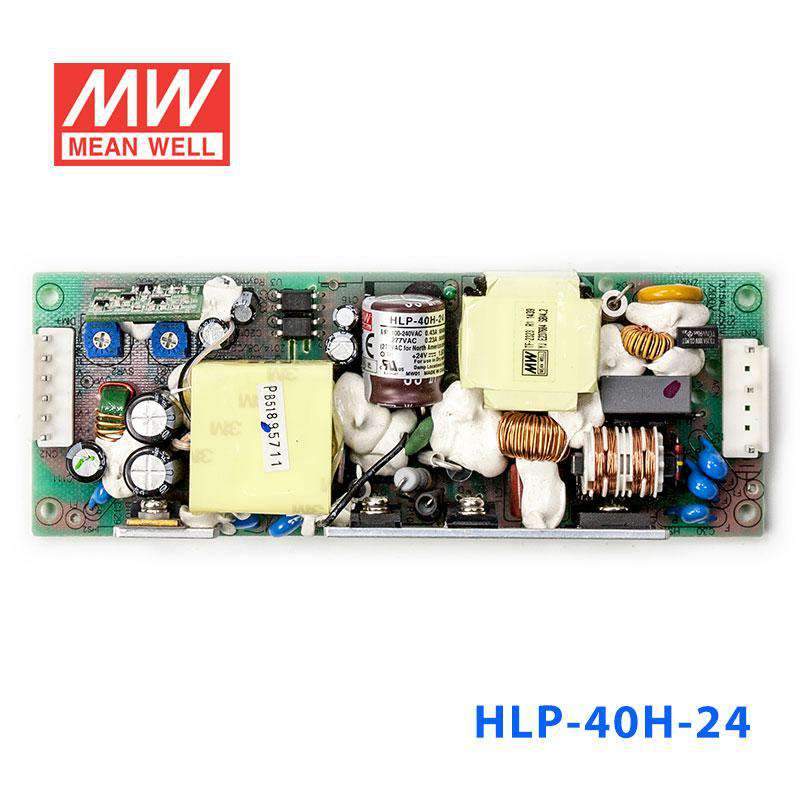

Mean Well HLP-40H-24 AC-DC Single output LED driver 40W
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLP-40H-24 AC-DC Single output LED driver 40W
The HLP-40H is a 40W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14 GB19510.1, , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating40 Watt
-
Output Voltage24 Volt
-
Rated Current1.67 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length5.79 in
-
Width2.09 in
-
Height1.06 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
Can I use the Mean Well HLP-40H-24 for LED downlights?
Yes, this model can fit LED downlights that require a constant current driver rather than a constant voltage power supply. It is a 40W constant current LED driver with a 24V output and 3 in 1 dimming, and it is described as suitable for built-in applications.
Is the HLP-40H-24 suitable for LED signage modules?
It can be suitable for signage modules if the modules are designed for a constant current driver. This unit is rated at 40W, uses constant current operation, and accepts 100-305VAC input, so it is not the right choice for signage products that expect a constant voltage 24V power supply.
Can I use this driver for a small LED array?
Yes, it can be used for a small LED array when the array is intended for constant current operation. The driver provides 40W output, has adjustable output current, and includes 3 in 1 dimming for applications that need light control.
Will the HLP-40H-24 work with my LEDs?
It is designed for constant current LED loads, and the listed CC output voltage range is 305-90V. The number of LEDs it can run depends on the forward voltage of each LED, so compatibility should be checked against the LED load rather than assuming a fixed LED count.
Is the Mean Well HLP-40H-24 okay for hot or cold environments?
This driver has a stated operating temperature range of -40°C to +90°C. It is a PCB type Class 2 power unit for built-in applications, so environmental suitability should be judged against the enclosure and the conditions around the finished product.
How does the HLP-40H-24 compare with other Mean Well HLP series models?
Within the same family, the HLP-40H-24 is 40W with 24V output, while the HLP-40H-36 is 40.3W, 36V, 1.12A. The HLP-60H series includes HLP-60H-15 at 60W, 15V, 4A; HLP-60H-20 at 60W, 20V, 3A; HLP-60H-24 at 60W, 24V, 2.5A; HLP-60H-30 at 60W, 30V, 2A; HLP-60H-36 at 61.2W, 36V, 1.7A; HLP-60H-42 at 60.9W, 48V, 1.45A; HLP-60H-48 at 62.4W, 48V, 1.3A; and HLP-60H-54 at 62.1W, 54V, 1.15A. The HLP-80H series includes HLP-80H-12 at 60W, 12V, 5A; HLP-80H-15 at 75W, 15V, 5A; HLP-80H-20 at 80W, 20V, 4A; HLP-80H-24 at 81.6W, 24V, 3.4A; HLP-80H-30 at 81W, 30V, 2.7A; HLP-80H-36 at 82.8W, 36V, 2.3A; HLP-80H-42 at 81.9W, 48V, 1.95A; HLP-80H-48 at 81.6W, 48V, 1.7A; and HLP-80H-54 at 81W, 54V, 1.5A.
