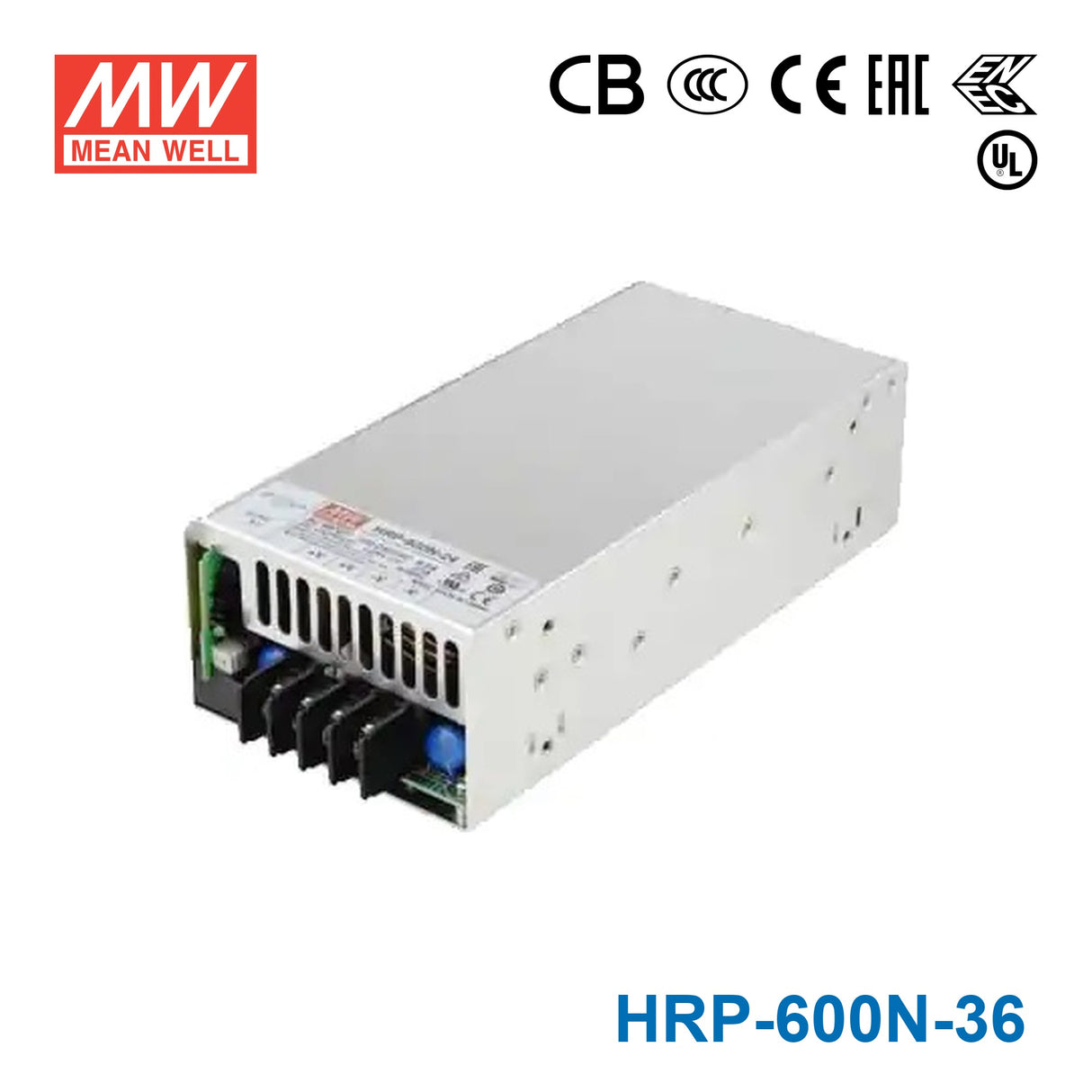

Mean Well HRP-600N-36 High Peak-Power Power Supply 600W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-600N-36 High Peak-Power Power Supply 600W 36V
The HRP-600N is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating600 Watt
-
Output Voltage36 Volt
-
Rated Current17.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.42 in
-
Weight3.06 lb
::specification::
Frequently Asked Questions
Can I use the HRP-600N-36 for 36V industrial equipment or automation subsystems?
Yes, this model delivers constant voltage 36V output at up to 600W and 17.5A. It is suitable for industrial electronics and automation subsystems that are specifically designed to run from a regulated 36V DC source.
Is the HRP-600N-36 a good fit for 36V motors, actuators, or DC machinery controls?
It can be used where the equipment is rated for constant voltage 36V and the total demand remains within 17.5A and 600W. For automation applications, that gives you a higher-power 36V option than the smaller HRP models in the same series.
Would this power supply work for a 36V embedded test platform or production fixture?
Yes, the 36V output and 17.5A current capacity make it appropriate for 36V validation racks, engineering benches, and production fixtures. The wide 85-264VAC input also helps when those systems are used across different facilities.
Can the HRP-600N-36 support a centralized 36V DC bus in an industrial enclosure?
Yes, if the downstream devices all require constant voltage 36V and the combined load stays within 600W and 17.5A. That makes it a practical choice for grouped 36V control loads in industrial or embedded environments.
Is the HRP-600N-36 suitable for cold or hot industrial spaces, and can it be used outdoors?
Its specified operating temperature range is -40°C to +70°C, so it is designed for wide-temperature operation. However, no IP rating is listed in the provided specs, so outdoor or washdown use should not be assumed from this data alone.
How does the HRP-600N-36 compare with other 36V HRP power supplies?
The listed 36V models are HRP-75-36 at 75.6W and 2.1A, HRP-100-36 at 104.4W and 2.9A, HRP-150-36 at 154.8W and 4.3A, HRP-150N-36 at 150W and 4.3A, HRP-150N3-36 at 150W and 4.3A, HRP-200-36 at 205.2W and 5.7A, HRP-300-36 at 324W and 9A, HRP-300N-36 at 300W and 9A, HRP-300N3-36 at 300W and 9A, HRP-450-36 at 450W and 12.5A, HRP-600-36 at 630W and 17.5A, HRP-600N-36 at 600W and 17.5A, and HRP-600N3-36 at 600W and 17.5A. This model is in the highest listed current tier for 36V output at 17.5A.
