Mean Well HRP-600N-12 High Peak-Power Power Supply 600W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours

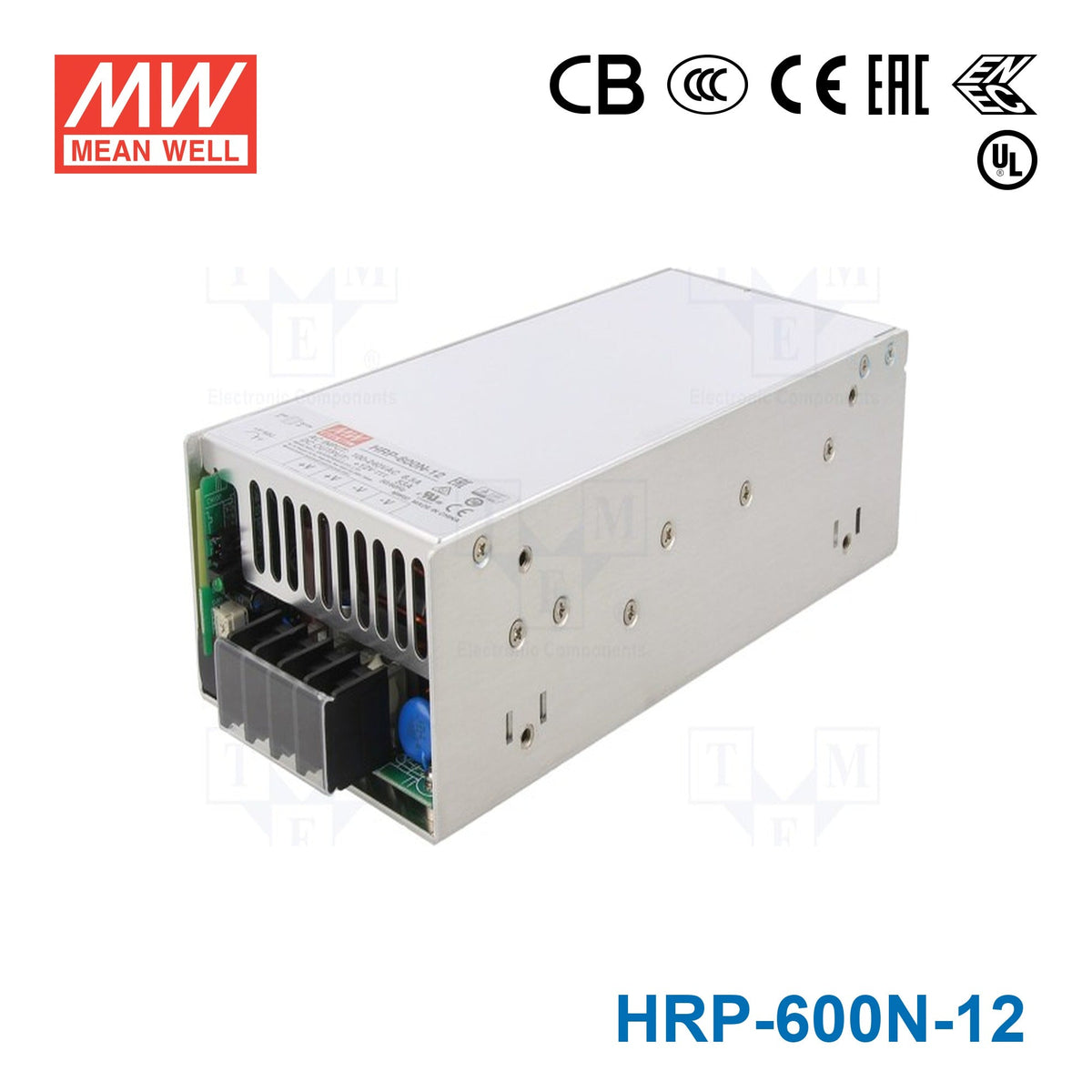

Mean Well HRP-600N-12 High Peak-Power Power Supply 600W 12V
The HRP-600N is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating600 Watt
-
Output Voltage12 Volt
-
Rated Current53 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.42 in
-
Weight3.06 lb
::specification::
Frequently Asked Questions
Can I use the HRP-600N-12 for a 12V industrial automation cabinet?
Yes, this model delivers constant voltage 12V output at up to 600W and 53A. That makes it suitable for larger 12V automation loads such as control panels, industrial accessories, and grouped 12V DC electronics.
Is the HRP-600N-12 a good choice for 12V embedded computing or communications equipment?
It can be, as long as the equipment requires a regulated 12V DC source and the combined load stays within 600W and 53A. The 85-264VAC input is also useful for deployments where AC input conditions vary by region or site.
Would this power supply work for a centralized 12V CCTV, access control, or security system?
Yes, it can support 12V DC systems that benefit from a single higher-capacity supply, provided the total demand remains within 53A and 600W. Its constant voltage output is appropriate for electronics designed around a 12V DC bus.
Can the HRP-600N-12 be used for 12V test, burn-in, or production equipment?
Yes, a 12V output with 53A capacity is well suited to production racks or validation setups built around 12V devices. The -40°C to +70°C operating range also supports industrial environments that see wider temperature swings.
Is the HRP-600N-12 suitable for outdoor use or dusty environments?
The provided specs show an operating range of -40°C to +70°C, but they do not provide an IP rating. Without an IP rating, the enclosure should not be assumed to be sealed for outdoor weather or dust-heavy washdown conditions.
How does the HRP-600N-12 compare with other 12V HRP models?
The listed 12V versions are HRP-75-12 at 75.6W and 6.3A, HRP-100-12 at 102W and 8.5A, HRP-150-12 at 156W and 13A, HRP-150N-12 at 150W and 13A, HRP-150N3-12 at 150W and 13A, HRP-200-12 at 200.4W and 16.7A, HRP-300-12 at 324W and 27A, HRP-300N-12 at 300W and 27A, HRP-300N3-12 at 300W and 27A, HRP-450-12 at 450W and 37.5A, HRP-600-12 at 636W and 53A, HRP-600N-12 at 600W and 53A, and HRP-600N3-12 at 600W and 53A. Compared with the smaller models, the HRP-600N-12 is in the highest-capacity tier for 12V output.
