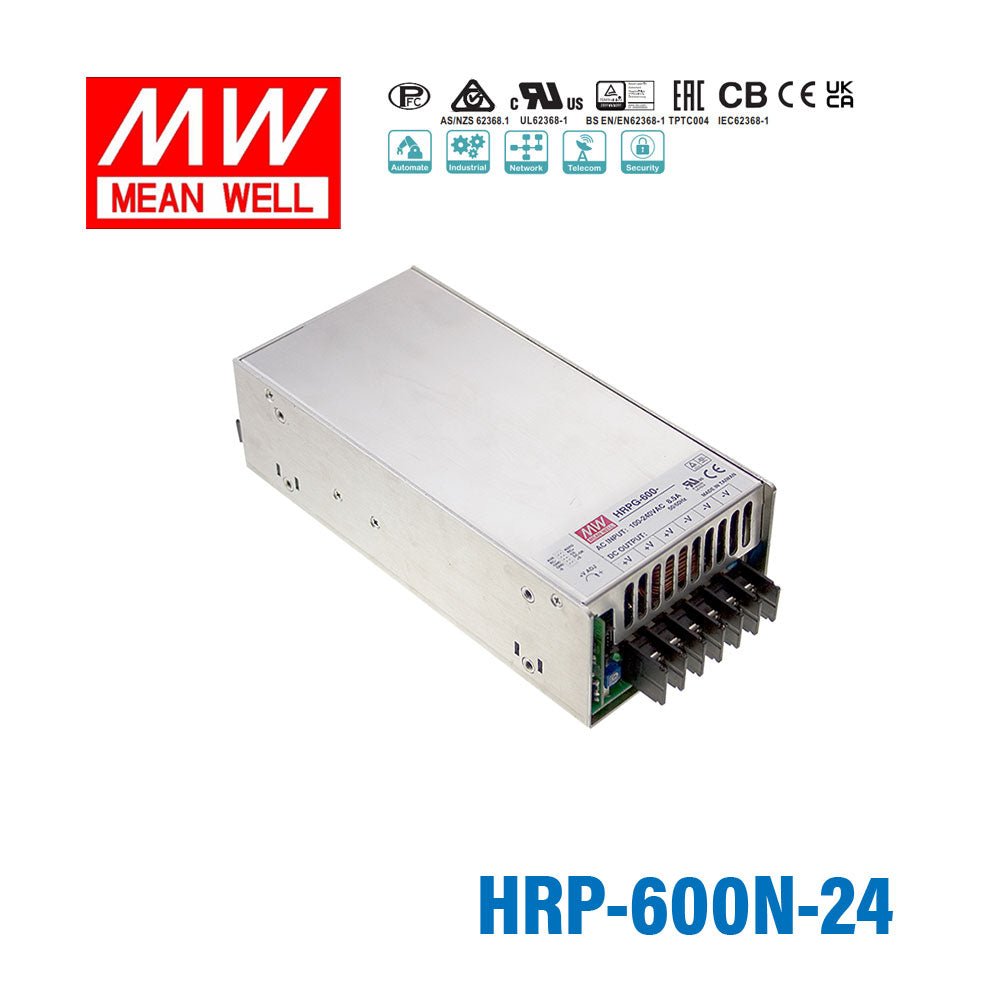

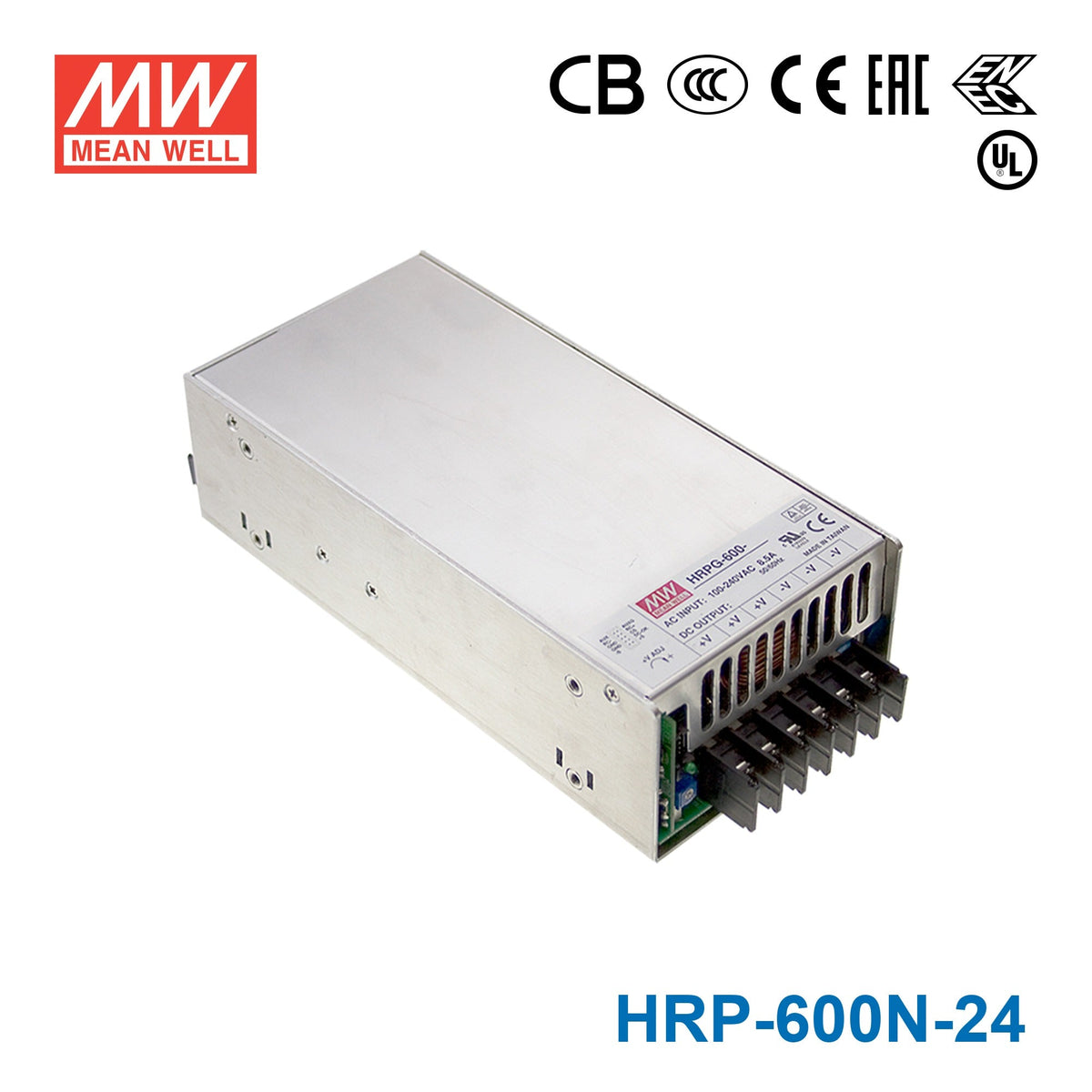

Mean Well HRP-600N-24 High Peak-Power Power Supply 600W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-600N-24 High Peak-Power Power Supply 600W 24V
The HRP-600N is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current27 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.42 in
-
Weight3.06 lb
::specification::
Frequently Asked Questions
Can I use the HRP-600N-24 for a 24V PLC or industrial control system?
Yes, this model provides constant voltage 24V output at up to 600W and 27A. That makes it a strong fit for 24V industrial control systems, PLC-related loads, and other automation hardware built around a 24V DC rail.
Is the HRP-600N-24 suitable for powering multiple 24V sensors, relays, and control devices from one supply?
It can be, as long as all connected devices are designed for constant voltage 24V input and the total load stays within 27A and 600W. This higher-capacity output is useful when several 24V subsystems share the same panel or enclosure.
Would the HRP-600N-24 work for 24V machine vision lighting or industrial inspection equipment?
Yes, it can support 24V DC inspection or lighting equipment when the overall demand remains within its 600W, 27A rating. The regulated 24V output is appropriate for many industrial electronics that standardize on 24V DC.
Can this 24V model be used in a factory test bench or automation lab setup?
Yes, the HRP-600N-24 is suitable for centralized 24V DC power in validation benches, automation labs, or production fixtures. Its 85-264VAC input and -40°C to +70°C operating range make it adaptable to a wide range of industrial locations.
Is the HRP-600N-24 rated for outdoor installation?
The provided specs confirm operation from -40°C to +70°C, but they do not include an IP rating. Since ingress protection is not stated, outdoor suitability is not established by the specs provided here.
How does the HRP-600N-24 compare with other 24V models in the HRP family?
The listed 24V versions are HRP-75-24 at 76.8W and 3.2A, HRP-100-24 at 108W and 4.5A, HRP-150-24 at 156W and 6.5A, HRP-150N-24 at 150W and 6.5A, HRP-150N3-24 at 150W and 6.5A, HRP-200-24 at 201.6W and 8.4A, HRP-300-24 at 336W and 14A, HRP-300N-24 at 300W and 14A, HRP-300N3-24 at 300W and 14A, HRP-450-24 at 451.2W and 18.8A, HRP-600-24 at 648W and 27A, HRP-600N-24 at 600W and 27A, and HRP-600N3-24 at 600W and 27A. This places the HRP-600N-24 in the top output tier for 24V in the listed range.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRP-600N Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRP-600N-48 High Peak-Power Power Supply 600W 48V | 600W | 48V | 13A | Indoor | $176.58 | View |
| Mean Well HRP-600N-36 High Peak-Power Power Supply 600W 36V | 600W | 36V | 17.5A | Indoor | $166.58 | View |
| Mean Well HRP-600N-12 High Peak-Power Power Supply 600W 12V | 600W | 12V | 53A | Indoor | $166.58 | View |
