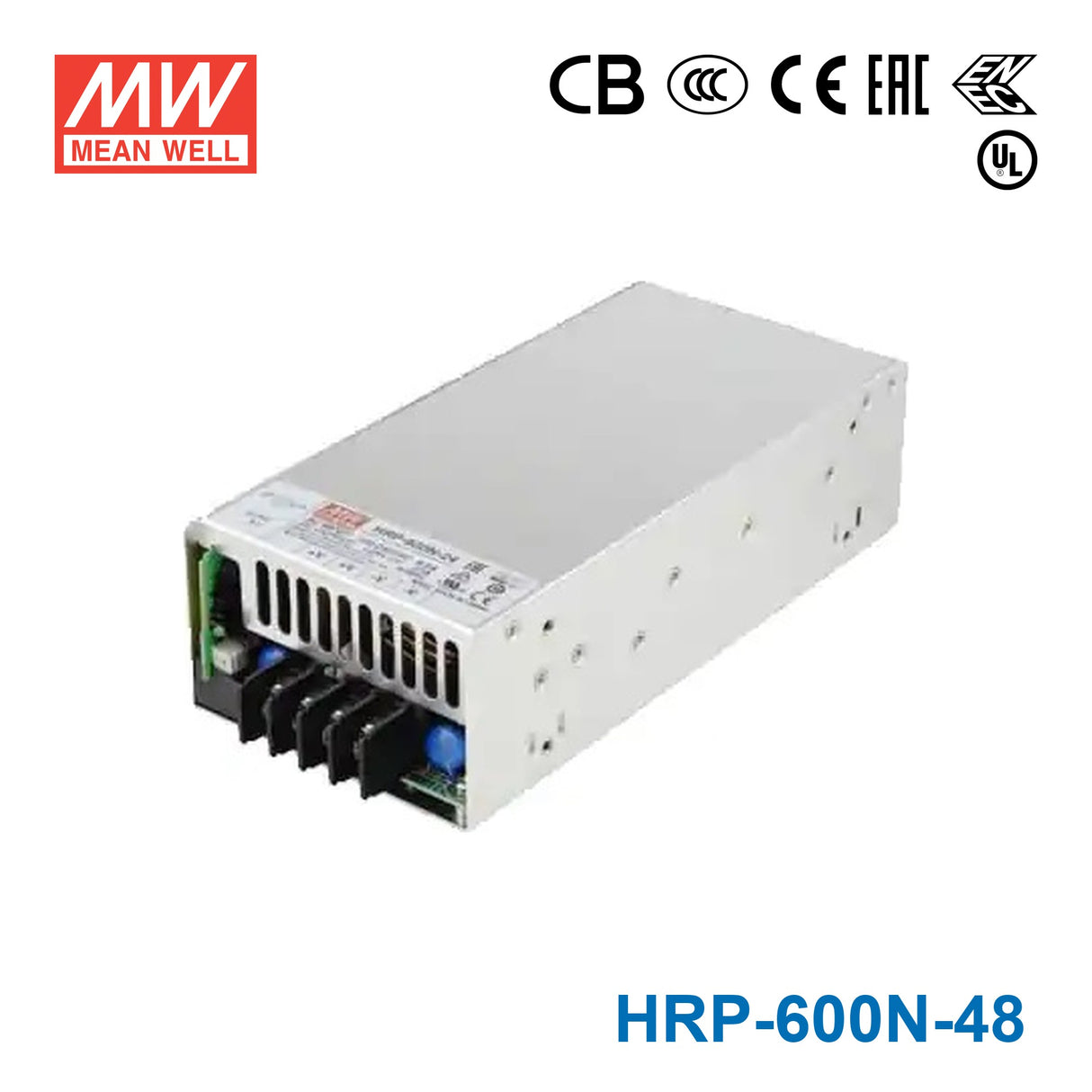

Mean Well HRP-600N-48 High Peak-Power Power Supply 600W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-600N-48 High Peak-Power Power Supply 600W 48V
The HRP-600N is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating600 Watt
-
Output Voltage48 Volt
-
Rated Current13 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.42 in
-
Weight3.06 lb
::specification::
Frequently Asked Questions
Can I use the HRP-600N-48 for a 48V industrial control cabinet or automation system?
Yes, this model is a constant voltage 48V power supply rated for 600W and 13A, which fits 48V DC loads in industrial control and automation equipment. Its wide 85-264VAC input also suits facilities that need one supply across different AC input ranges.
Is the HRP-600N-48 suitable for 48V embedded computing or industrial PC loads?
It can be a fit for embedded or industrial computing hardware that specifically requires a constant 48V DC source and draws within 13A and 600W. The unit is designed for AC-fed systems with 85-264VAC input and offers high efficiency up to 90%.
Can this 48V 600W supply be used for higher-power 48V network or telecom-style equipment?
It is appropriate for 48V DC equipment when the load stays within 13A and 600W and expects constant voltage output. Compared with smaller 48V models in the series, this version is intended for substantially higher load demand.
Would the HRP-600N-48 work for a 48V motion, actuator, or automation subsystem?
It can support 48V automation subsystems that need a regulated constant voltage source and remain within the 13A output current limit. The -40°C to +70°C operating range also makes it more suitable for industrial environments than supplies with narrower temperature coverage.
How does the HRP-600N-48 compare with other 48V models in the HRP series?
Within the listed 48V HRP family, the available outputs are HRP-75-48 at 76.8W and 1.6A, HRP-100-48 at 105.6W and 2.2A, HRP-150-48 and HRP-150N-48 and HRP-150N3-48 at 150W or 158.4W and 3.3A, HRP-200-48 at 206.4W and 4.3A, HRP-300-48 and HRP-300N-48 and HRP-300N3-48 at 300W or 336W and 7A, HRP-450-48 at 456W and 9.5A, HRP-600-48 at 624W and 13A, and HRP-600N3-48 at 600W and 13A. The HRP-600N-48 is one of the highest-capacity 48V options listed, at 600W and 13A.
Is the HRP-600N-48 suitable for outdoor or harsh-temperature environments?
The provided specs show an operating temperature range of -40°C to +70°C, so it is designed for demanding temperature conditions. No IP rating is listed here, so outdoor exposure or washdown suitability cannot be confirmed from the provided specs alone.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRP-600N Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRP-600N-36 High Peak-Power Power Supply 600W 36V | 600W | 36V | 17.5A | Indoor | $166.58 | View |
| Mean Well HRP-600N-24 High Peak-Power Power Supply 600W 24V | 600W | 24V | 27A | Indoor | $142.23 | View |
| Mean Well HRP-600N-12 High Peak-Power Power Supply 600W 12V | 600W | 12V | 53A | Indoor | $166.58 | View |
