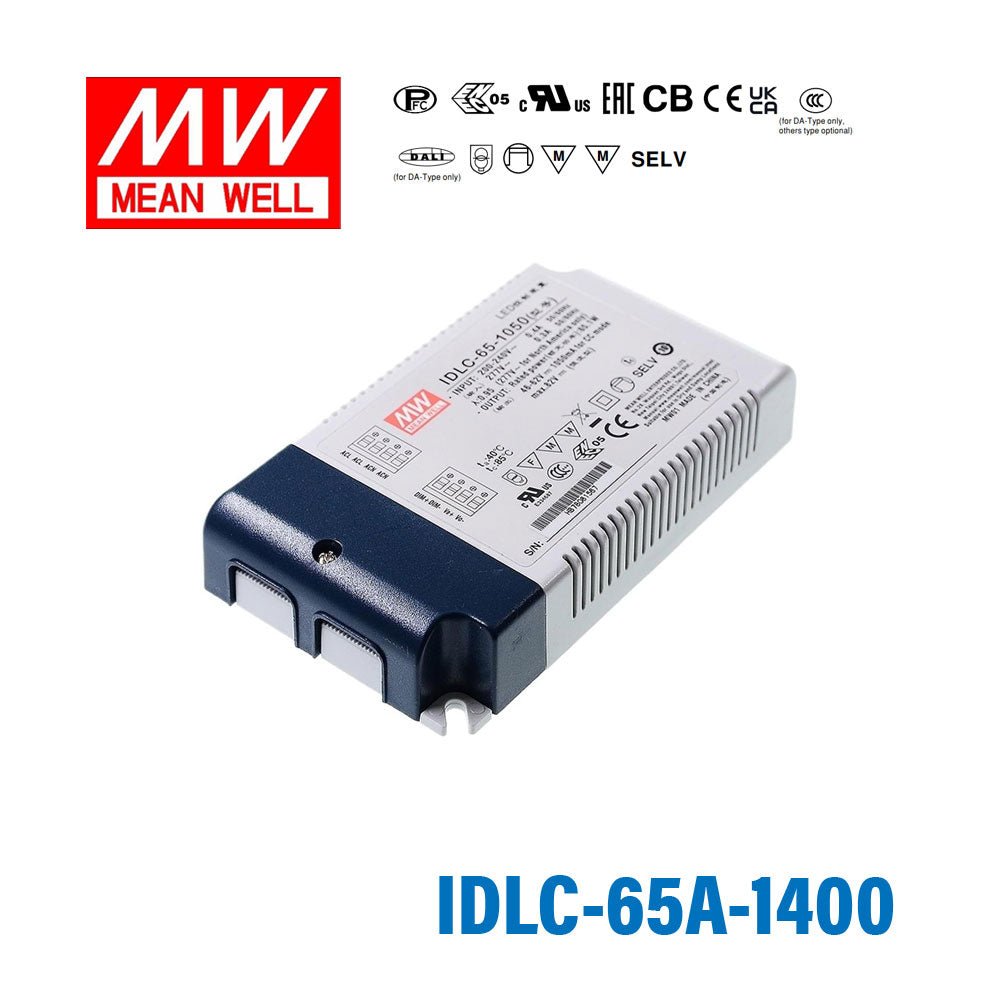

Mean Well IDLC-65A-1400 Power Supply 65W 1400mA (Auxiliary DC output)
T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Key Features
- ✓Constant Current mode output
- ✓Flicker-free design
- ✓Plastic housing with class II design
- ✓Built-in active PFC function
- ✓No load power consumption<0.5W(Blank-Type)
- ✓Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output
- ✓3 years warranty
-
BrandMean Well
-
SeriesIDLC Series
-
Power Rating64.4 Watt
-
Output Voltage46 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length5.12 in
-
Width2.95 in
-
Height0.98 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the IDLC-65A-1400 for a 1400mA LED downlight?
Yes, this driver is intended for constant current LED loads that require 1400mA. It operates across a 34-46V constant current range and delivers up to 64.4W, so the downlight needs to stay within those limits.
Will the IDLC-65A-1400 work for signage LED modules that need higher current?
It can work for signage modules when the LED string is designed for constant current operation at 1400mA. The total forward voltage of the load must stay within 34-46V, and it should not be used in place of a constant voltage power supply.
Is this a good fit for compact COB LED arrays?
It is suitable for COB or other small LED arrays that are specified for 1400mA constant current input. The load must operate within the 34-46V constant current range and within the 64.4W output capacity.
What should I check before pairing LEDs with the IDLC-65A-1400?
Confirm that the LEDs require constant current rather than constant voltage, and that the target current is 1400mA. The LED string must operate within 34-46V, and the number of LEDs depends on the forward voltage of each LED rather than a fixed quantity.
Can the IDLC-65A-1400 handle demanding temperature conditions?
The specified operating temperature range is -20°C to +85°C. That wide range supports use in environments where the driver may see both low and high ambient temperatures, but the listing does not provide an IP rating for water or dust exposure.
