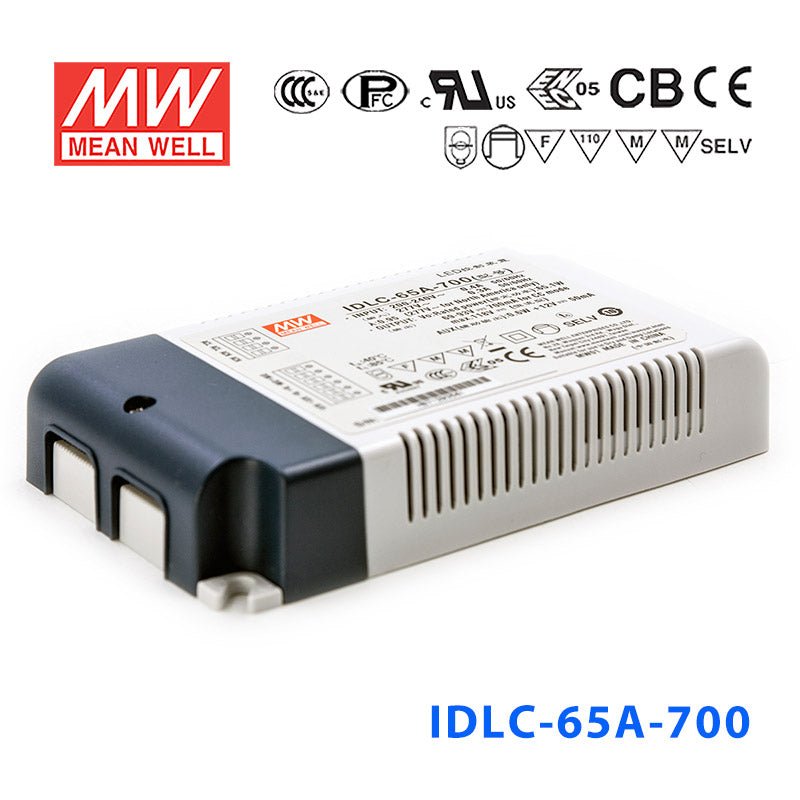

Mean Well IDLC-65A-700 Power Supply 65W 700mA (Auxiliary DC output)
$24.96 USD
Unit price /
Unavailable
Features
| Constant Current mode output |
| Flicker-free design |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output |
| 3 years warranty |
General Specification
| Short circuit | Hiccup mode recovers automatically after the fault condition is removed |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Working temperature |
T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section) |
| Safety standards | UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved |
| EMC standards | Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1 |
| Dimension (LxWxH)(mm) | 130 x 75 x 25 mm |
-
BrandMean Well
-
SeriesIDLC Series
-
Power Rating65.1 Watt
-
Output Voltage93 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length5.12 in
-
Width2.95 in
-
Height0.98 in
-
Weight0.51 lb
