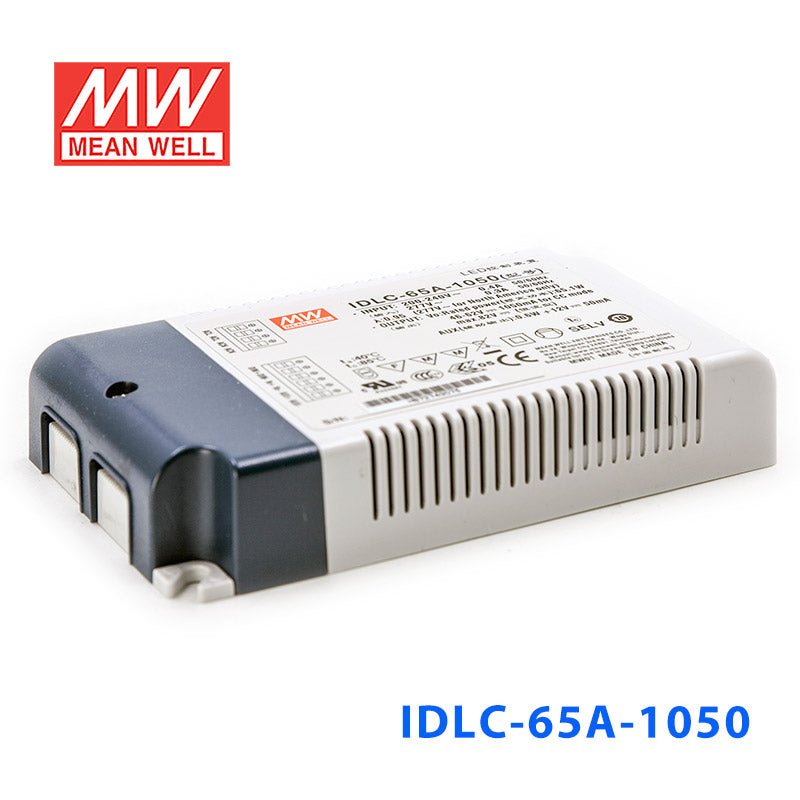

Mean Well IDLC-65A-1050 Power Supply 65W 1050mA (Auxiliary DC output)
T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Key Features
- ✓Constant Current mode output
- ✓Flicker-free design
- ✓Plastic housing with class II design
- ✓Built-in active PFC function
- ✓No load power consumption<0.5W(Blank-Type)
- ✓Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output
- ✓3 years warranty
-
BrandMean Well
-
SeriesIDLC Series
-
Power Rating65.1 Watt
-
Output Voltage62 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length5.12 in
-
Width2.95 in
-
Height0.98 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the IDLC-65A-1050 for LED downlights that need a 1050mA constant current driver?
Yes, this model is designed for constant current LED loads at 1050mA. It supports a constant current output range of 46-62V with up to 65.1W, so it fits LED downlights whose electrical requirements stay within that current and voltage window.
Is the IDLC-65A-1050 suitable for powering signage LED modules in series?
It can be used for signage modules when the module string is built for constant current operation at 1050mA. The total forward voltage of the series string must stay within the 46-62V constant current range, and this driver is not intended for constant voltage signage products.
Can this driver run a small high-power LED array at 1050mA?
Yes, if the array is a constant current LED load rated for 1050mA. The array's combined forward voltage needs to fall within 46-62V, and the total load must remain within the 65.1W rating.
How do I know if my LED load is compatible with the IDLC-65A-1050?
This driver is for constant current LED systems, not constant voltage loads. Your LED load must require 1050mA constant current, and its operating voltage must fall within 46-62V; the number of LEDs depends on the forward voltage of each LED in the circuit, not on a fixed count.
How does the IDLC-65A-1050 compare with other 65W IDLC series drivers?
Within the 65W family, the IDLC-65A-1050 is rated 1050mA with a 46-62V constant current range and 65.1W. The IDLC-65A-1400 is 1400mA with 34-46V and 64.4W, the IDLC-65A-1750 is 1750mA with 27-36V and 63W, and the IDLC-65A-700 is 700mA with 69-93V and 65.1W.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other IDLC-65A Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well IDLC-65A-700 Power Supply 65W 700mA (Auxiliary DC output) | 65.1W | 93V | 0.7A | — | $24.96 | View |
| Mean Well IDLC-65A-1750 Power Supply 65W 1750mA(Auxiliary DC output) | 63W | 36V | 1.75A | Indoor | $24.96 | View |
| Mean Well IDLC-65A-1400 Power Supply 65W 1400mA (Auxiliary DC output) | 64.4W | 46V | 1.4A | Indoor | $24.96 | View |
