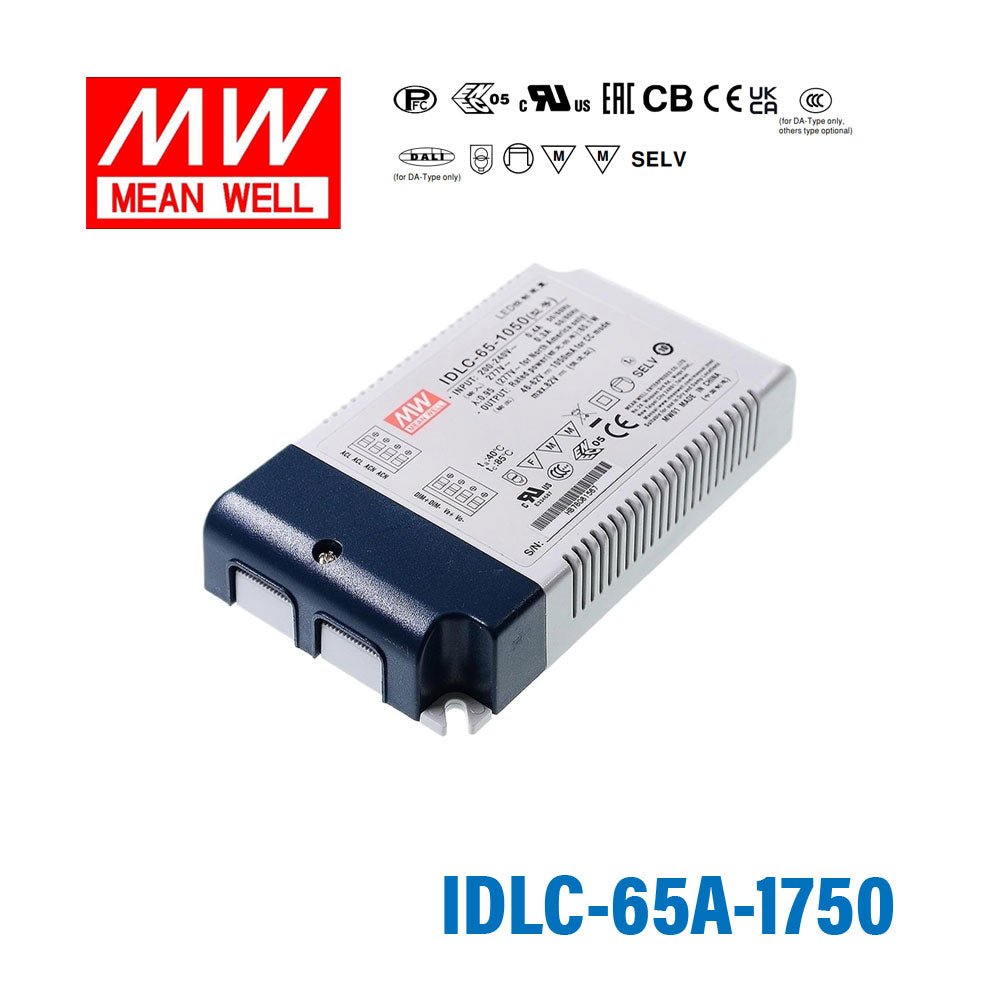

Mean Well IDLC-65A-1750 Power Supply 65W 1750mA(Auxiliary DC output)
T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Key Features
- ✓Constant Current mode output
- ✓Flicker-free design
- ✓Plastic housing with class II design
- ✓Built-in active PFC function
- ✓No load power consumption<0.5W(Blank-Type)
- ✓Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output
- ✓3 years warranty
-
BrandMean Well
-
SeriesIDLC Series
-
Power Rating63 Watt
-
Output Voltage36 Volt
-
Rated Current1.75 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length5.12 in
-
Width2.95 in
-
Height0.98 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the IDLC-65A-1750 for high-current LED downlights?
Yes, this model is built for constant current LED loads at 1750mA. It provides a 27-36V constant current range with up to 63W, so the downlight must electrically match that current and voltage window.
Is the IDLC-65A-1750 suitable for short-series signage LED modules?
It can be suitable when the signage modules are designed for constant current operation at 1750mA. The total LED forward voltage has to stay within 27-36V, and this is not a constant voltage driver for general signage strips or modules.
Can this driver power a small LED array with a lower forward voltage requirement?
Yes, that is where this model fits best compared with higher-voltage constant current drivers in the same family. It delivers 1750mA across 27-36V, making it appropriate for compact LED arrays that need higher current but a lower overall forward voltage.
How do I size an LED load for the IDLC-65A-1750?
Match the driver to LED loads that require 1750mA constant current, not constant voltage input. The full LED string must operate within the 27-36V constant current range, and the number of LEDs depends on the forward voltage of each LED used.
How is the IDLC-65A-1750 different from the other 65W A-version drivers?
The IDLC-65A-1750 is the highest-current option among the listed 65W A-version models at 1750mA, with a 27-36V constant current range and 63W. By comparison, the IDLC-65A-1400 is 1400mA at 34-46V and 64.4W, the IDLC-65A-1050 is 1050mA at 46-62V and 65.1W, and the IDLC-65A-700 is 700mA at 69-93V and 65.1W.
