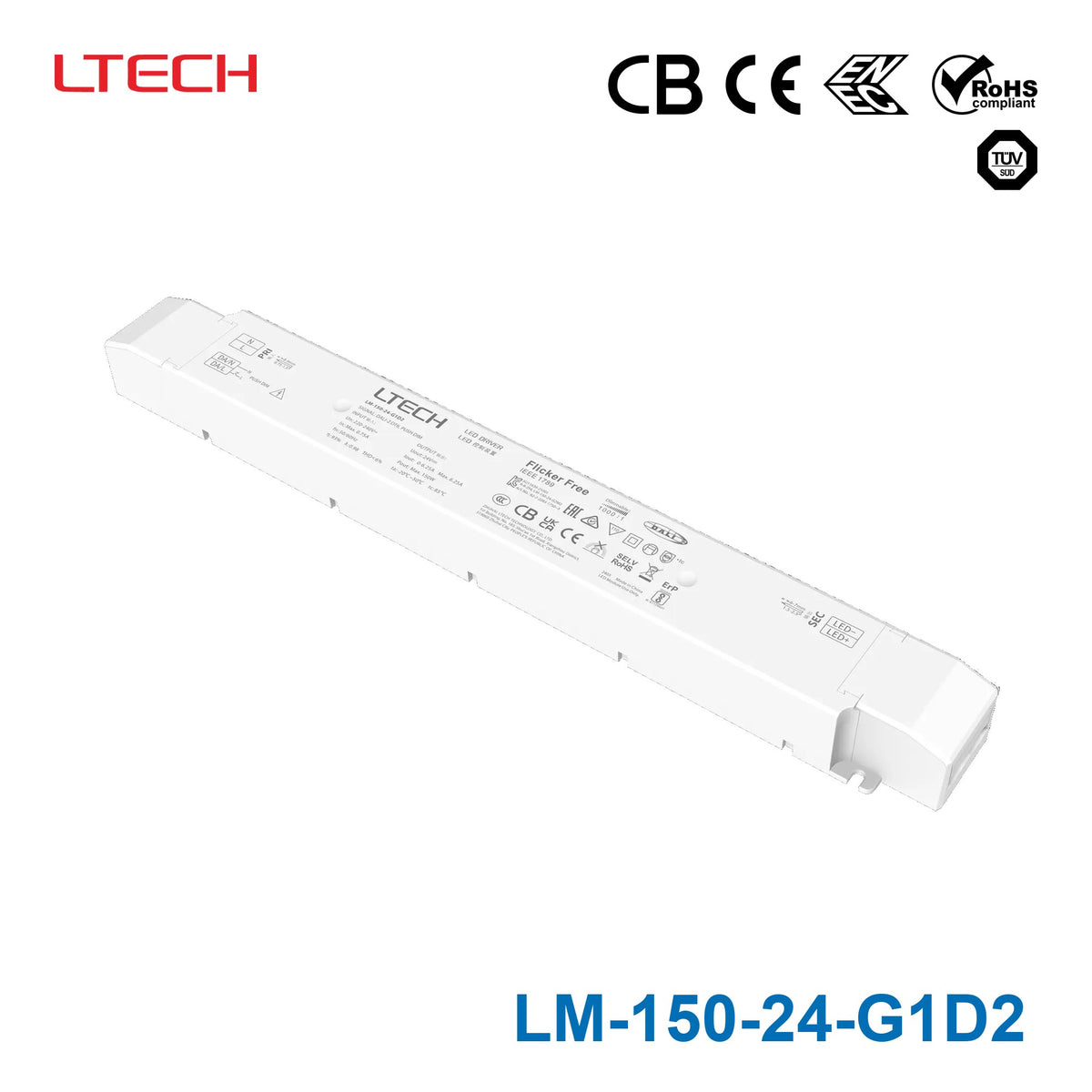

Ltech LM-150-24-G1D2 CV DALI2 Dimmable Driver 6.25A
The LM-150-24-G1D2 is a constant voltage LED driver for 24V lighting systems. It is intended for LED lighting decoration and other 24V constant voltage applications where DALI dimming is required.
Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 220~240VAC
- ✓Dimming: DALI, Push DIM
- ✓Output voltage: 24V
- ✓Rated output current: 6.25A
- ✓Rated power: 150W
- ✓Ingress protection: IP20
- ✓Operating temperature: -20~+50°C
- ✓Certifications: CB, CE, EN, ENEC, ROHS, TUV
- ✓Dimensions: 352 x 43 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlDALI,Push Dimming
-
Standards MetCB,CE,EN,ENEC,ROHS,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature20°C~50°C
-
Warranty5 Year
-
Length13.86 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.95 lb
::specification::
Frequently Asked Questions
What type of LED application is the Ltech LM-150-24-G1D2 designed for?
The LM-150-24-G1D2 is a constant voltage LED driver for 24V lighting systems. It is intended for LED lighting decoration and other 24V constant voltage applications where DALI dimming is required.
What are the main electrical specifications of the LM-150-24-G1D2?
This model is rated at 150W with a 24V output and 6.25A rated current. Those specifications make it suitable for higher-power 24V constant voltage LED loads within its rated capacity.
Does this driver support DALI dimming?
Yes, this model supports DALI dimming, and the product name identifies it as a DALI2 dimmable driver. It is intended for projects that need a 24V constant voltage driver with DALI-based control.
What operating temperatures is the LM-150-24-G1D2 rated for?
The specified operating temperature range is 20°C to 50°C. Buyers should make sure the installation environment stays within that range for normal operation.
What warranty is offered for the Ltech LM-150-24-G1D2?
This model includes a 5-year warranty period. That makes it a stronger fit for commercial and project-based purchases where longer coverage is important.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LM-150 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Ltech LM-150-24-G2D2 150W 24VDC DALI2 DT8 LED Driver - Tunable White 6A | 150W | 24V | 6A | IP20 | $116.80 | View |
| Ltech LM-150-12-G2D2 150W 12VDC DALI2 DT8 LED Driver - Tunable White 6A | 150W | 12V | 6A | IP20 | $116.80 | View |
| Ltech LM-150-12-G1D2 CV DALI2 Dimmable Driver 12.5A | 150W | 12V | 12.5A | IP20 | $109.90 | View |
