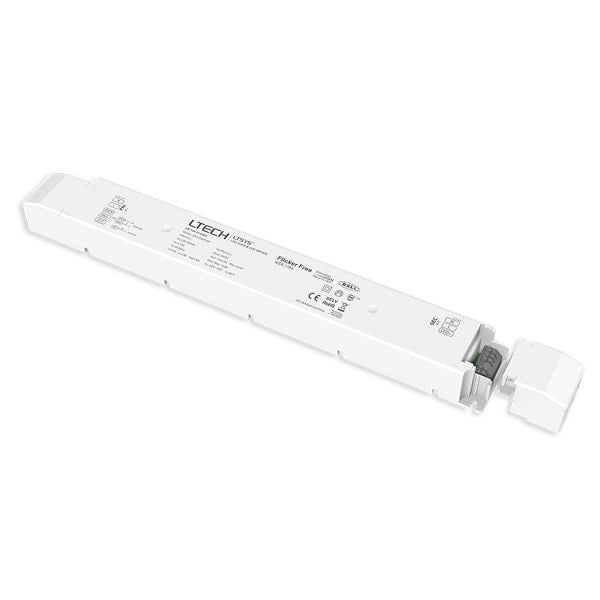

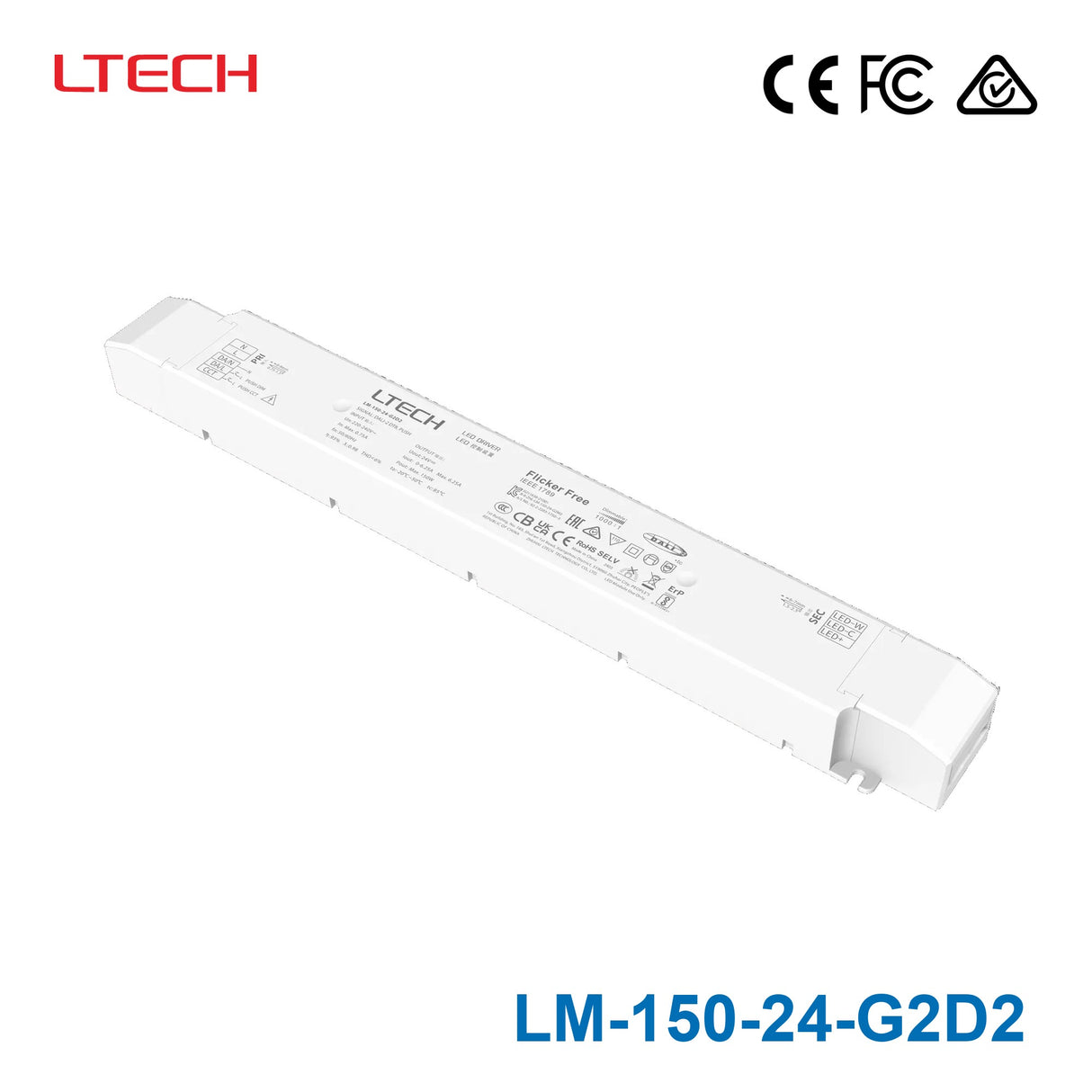

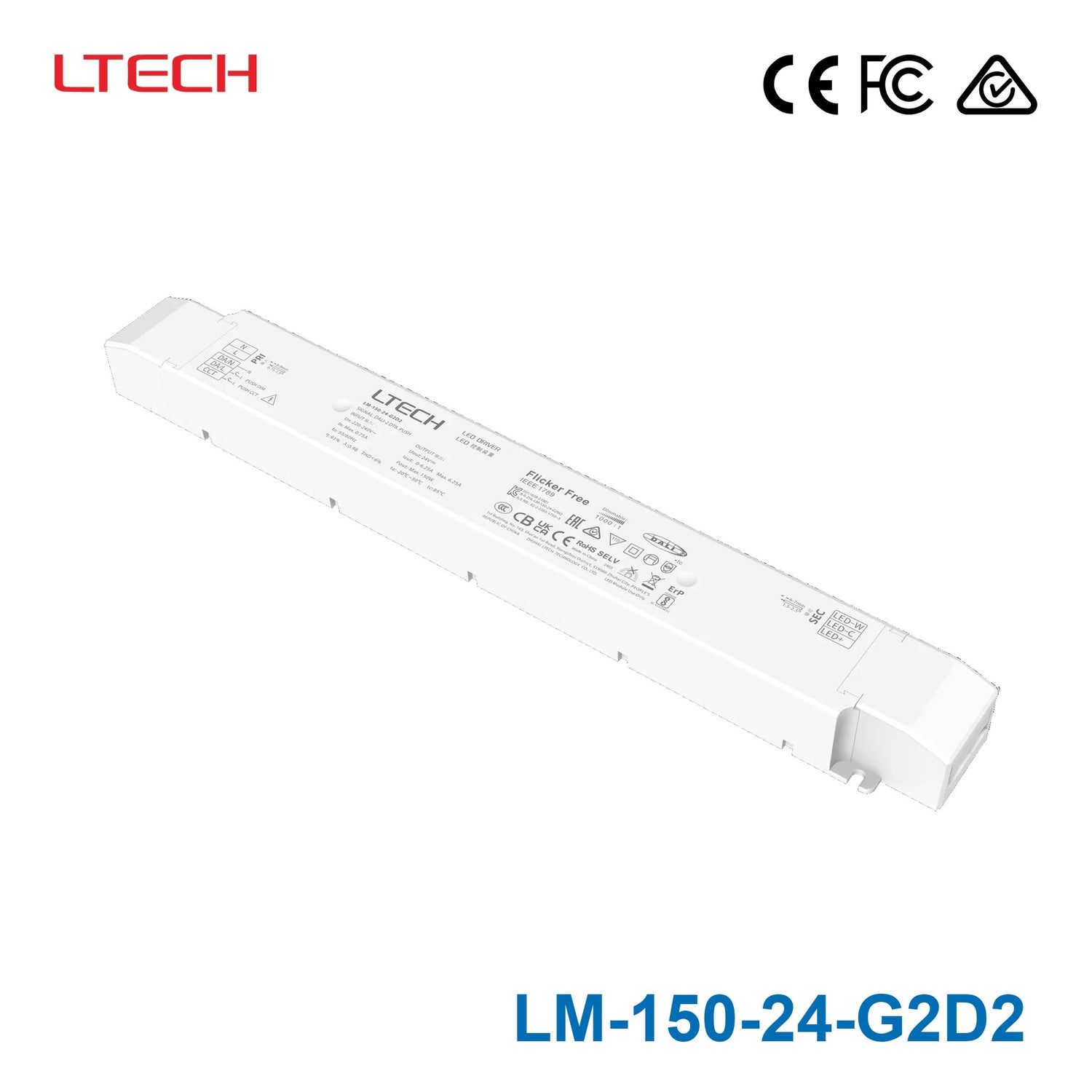

Ltech LM-150-24-G2D2 150W 24VDC DALI2 DT8 LED Driver - Tunable White

SKU:
LM-150-24-G2D2

$116.80 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Dimming interface: DALI DT8, Push DIM/CCT 2 independently SELV constant voltage output channels. DALI DT8, DIM and color temperature adjusting driver. Constant power design, adjust different color temperature to keep the same brightness. Dimming range from 0-100%, LED start at 0.1% possible. Color temperature adjusting range: 2500-6000K 0~100% flicker-free, High frequency exemption level. High Efficicient driver: efficiency 93%, PF>0.98, THD<6%. In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W Innovative thermal management technology, intelligent power life protection. Over-heat / Over voltage / Over load / Short circuit protection, recover automatically. Fully-protected plastic housing with design of dismountable end cover. Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ 5 years warranty (Rubycon capacitor)

Specifications

  • Brand
    Ltech
  • Series
    Ltech DALI Series
  • Power Rating
    150 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    6 Ampere
  • Input Voltage
    220V~240V
  • No of Output
    1
  • Dimming Control
    DALI
  • Standards Met
    CE,FCC,RCM
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~80°C
  • Warranty
    5 Year
  • Length
    13.86 in
  • Width
    1.69 in
  • Height
    1.18 in
  • Weight
    0.95 lb

File Downloads

::specification::
