Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

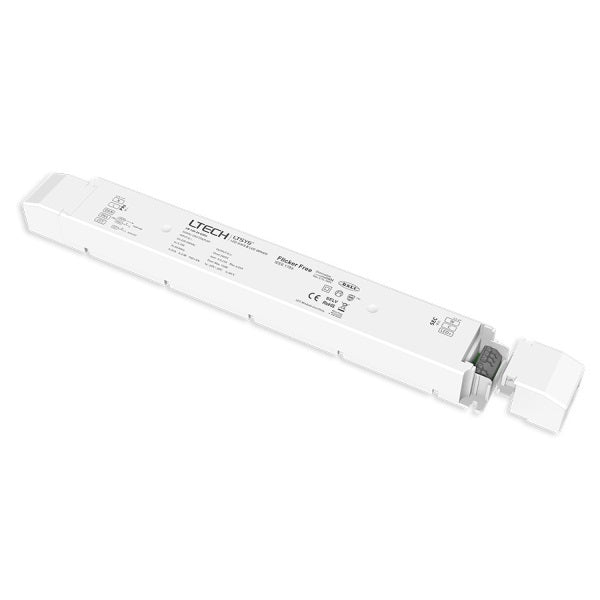

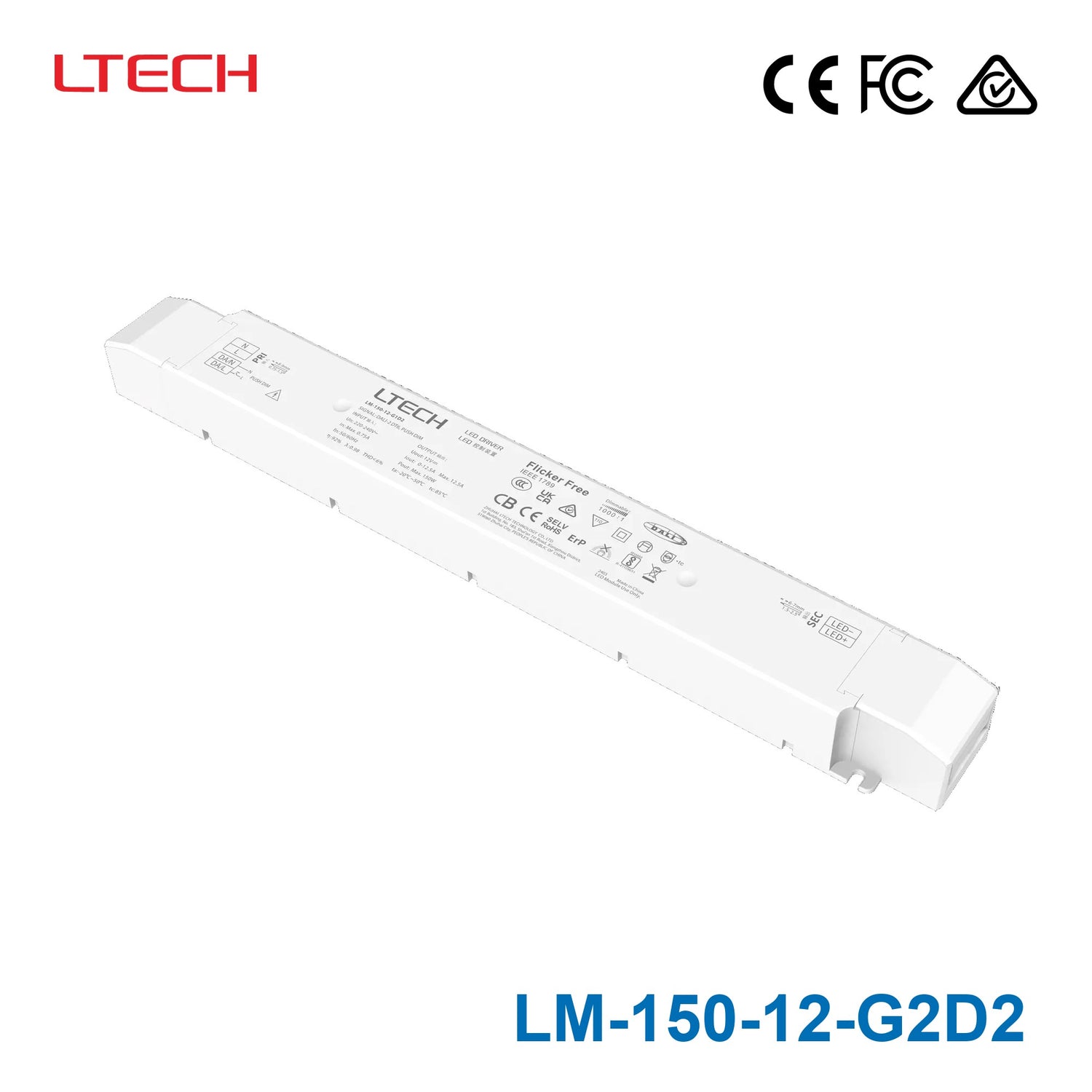

Ltech LM-150-12-G2D2 150W 12VDC DALI2 DT8 LED Driver - Tunable White
$116.80 USD
Unit price /
Unavailable
Description
Description
Dimming interface: DALI DT8, Push DIM/CCT 2 independently SELV constant voltage output channels. DALI DT8, DIM and color temperature adjusting driver. Constant power design, adjust different color temperature to keep the same brightness. Dimming range from 0-100%, LED start at 0.1% possible. Color temperature adjusting range: 2500-6000K 0~100% flicker-free, High frequency exemption level. High Efficicient driver: efficiency 93%, PF>0.98, THD<6%. In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W Innovative thermal management technology, intelligent power life protection. Over-heat / Over voltage / Over load / Short circuit protection, recover automatically. Fully-protected plastic housing with design of dismountable end cover. Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ 5 years warranty (Rubycon capacitor)
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current6 Ampere
-
Input Voltage220V~220V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length13.86 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.95 lb
File Downloads
File Downloads
::specification::
