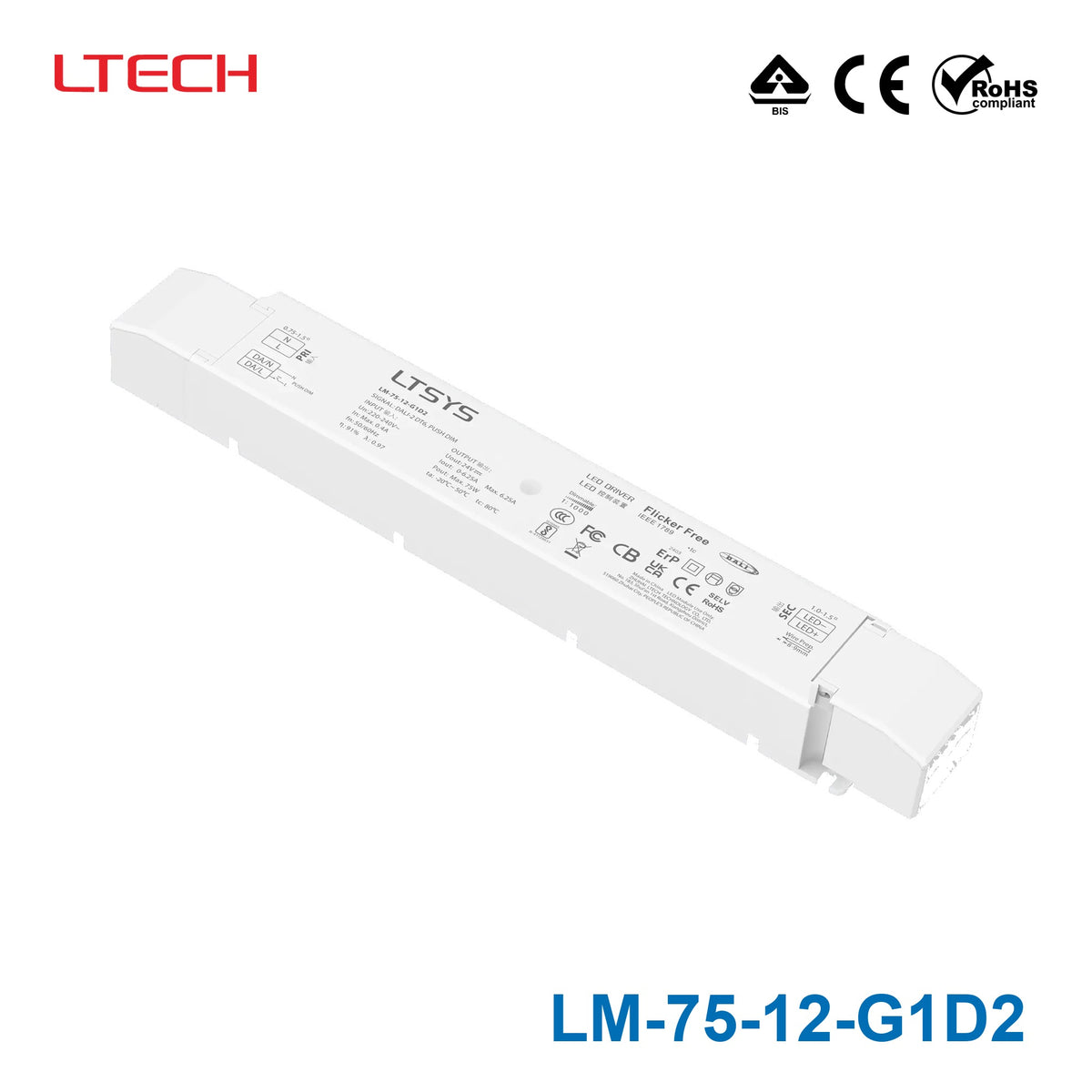

Ltech LM-75-12-G1D2 75W 12VDC CV DALI2 LED Driver 6.25A
The LM-75-12-G1D2 is a 75W constant-voltage LED driver with a 12VDC output, so it is intended for 12V LED lighting applications that require dimming control. It is suitable for indoor I, II, and III type lamp applications and is positioned for professional lighting projects where DALI-based control is needed.
Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 220~240VAC
- ✓Dimming: DALI, Push DIM
- ✓Output voltage: 12V
- ✓Rated output current: 6.25A
- ✓Rated power: 75W
- ✓Ingress protection: IP20
- ✓Operating temperature: -20~+50°C
- ✓Certifications: BIS, CE, ROHS
- ✓Dimensions: 293 x 43 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlDALI,Push Dimming
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
What type of LED applications is the Ltech LM-75-12-G1D2 designed for?
The LM-75-12-G1D2 is a 75W constant-voltage LED driver with a 12VDC output, so it is intended for 12V LED lighting applications that require dimming control. It is suitable for indoor I, II, and III type lamp applications and is positioned for professional lighting projects where DALI-based control is needed.
Does this model support DALI2, and what dimming options does it offer?
Yes. This model supports both DALI 1 and DALI 2 protocols and also lists Push DIM capability. It provides 0-100% dimming, supports flicker-free dimming performance, and allows either a linear or logarithmic DALI dimming curve.
What are the main electrical ratings of the LM-75-12-G1D2?
This LED driver is rated at 75W with a 12VDC output and a rated current of 6.25A. Those specifications make it a constant-voltage option for 12V systems where stable output and DALI dimming are required.
Is this LED driver suitable for low-level dimming performance?
Yes. The LM-75-12-G1D2 supports dimming down to very low output levels, with LED start at 0.1% noted in the product details. That makes it a strong fit for applications where smooth low-end dimming is important.
What operating environment is this model intended for?
This model is designed for indoor use and has an operating temperature range of -20°C to 50°C. It also uses a full protective plastic housing and is compliant with Safety Extra Low Voltage standards.
What protection and efficiency features does the LM-75-12-G1D2 include?
The driver includes over-heat, over-load, and short-circuit protection, with automatic recovery listed in the product details. It also has standby power loss below 0.5W, which helps reduce idle energy consumption in controlled lighting systems.
What warranty comes with the Ltech LM-75-12-G1D2?
This model includes a 5-year warranty period. That gives buyers longer-term coverage for commercial and professional LED lighting applications where product lifespan and support matter.
