Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

×
High Resolution Image

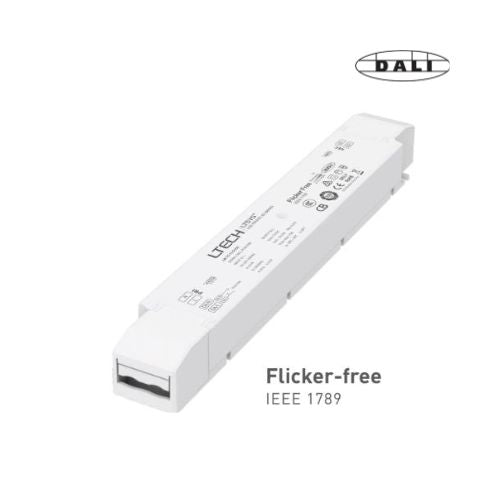

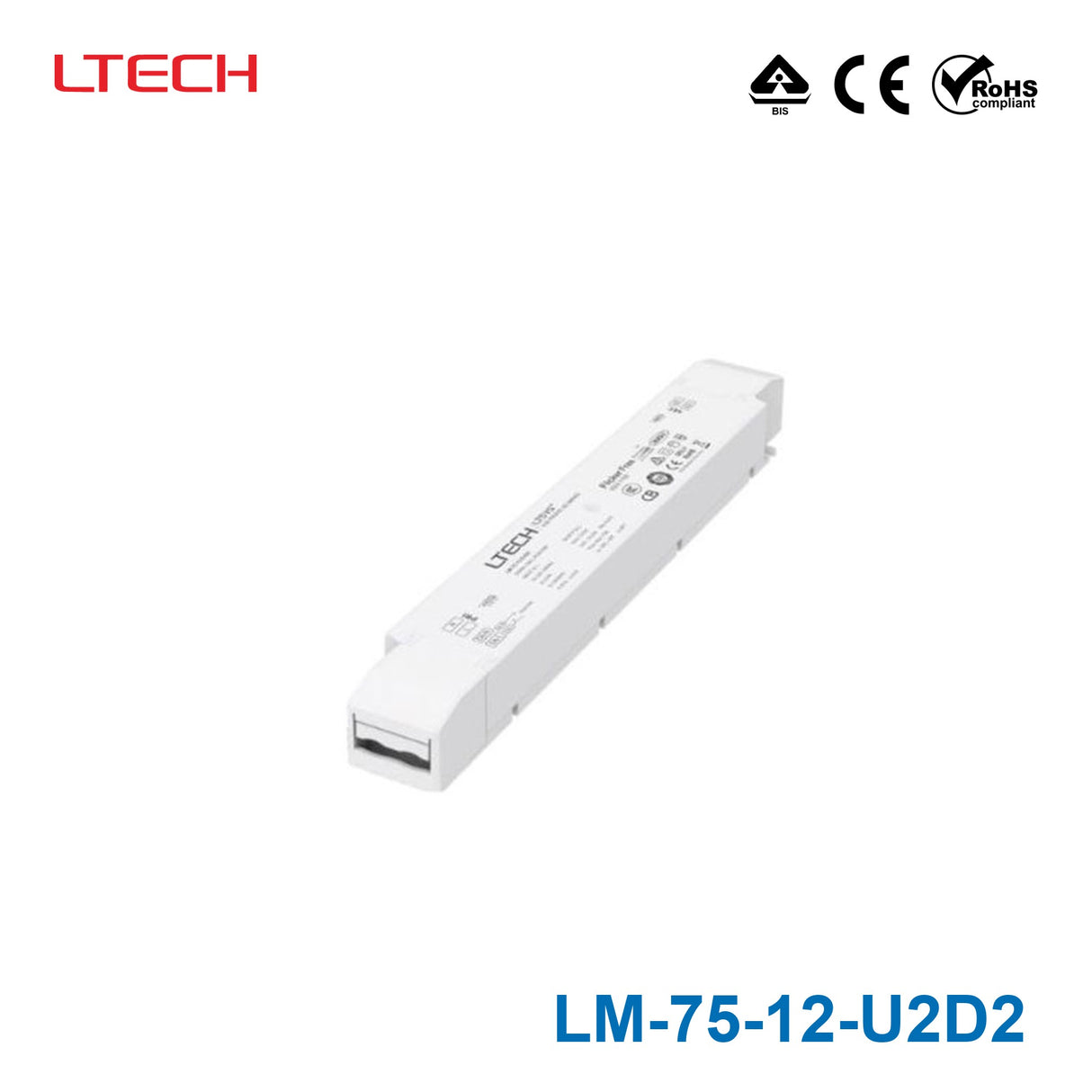

LTECH LM-75-12-U2D2 75W 12VDC CV DALI LED Driver

$81.86 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

  • Dimming interface: DALI
  • Push DIM/CCT
  • DALI DT8
  • DIM and color temperature adjusting driver.
  • Dimming range from 0-100%
  • LED start at 0.1%possible.
  • 2 independently SELV constant voltage output channels.
  • Color temperature adjusting range: 2700-6500K
  • 0~100% flicker-free
  • achieve the level of exemption assessment.
  • Over-heat / Over load / Short circuit protection
  • recover automatically.
  • Standby Power Loss < 0.5W
  • Full protective plastic housing.
  • Compliant with Safety Extra Low Voltage standard.
  • Suitable for indoor I/II/III type lamps application.

Specifications

  • Brand
    Ltech
  • Series
    Ltech DALI Series
  • Power Rating
    75 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    6.25 Ampere
  • Input Voltage
    100V~277V
  • No of Output
    1
  • Dimming Control
    DALI
  • Standards Met
    BIS,CE,ROHS
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~50°C
  • Warranty
    5 Year
  • Length
    11.5 in
  • Width
    1.69 in
  • Height
    1.18 in
  • Weight
    0.66 lb

File Downloads

::specification::
