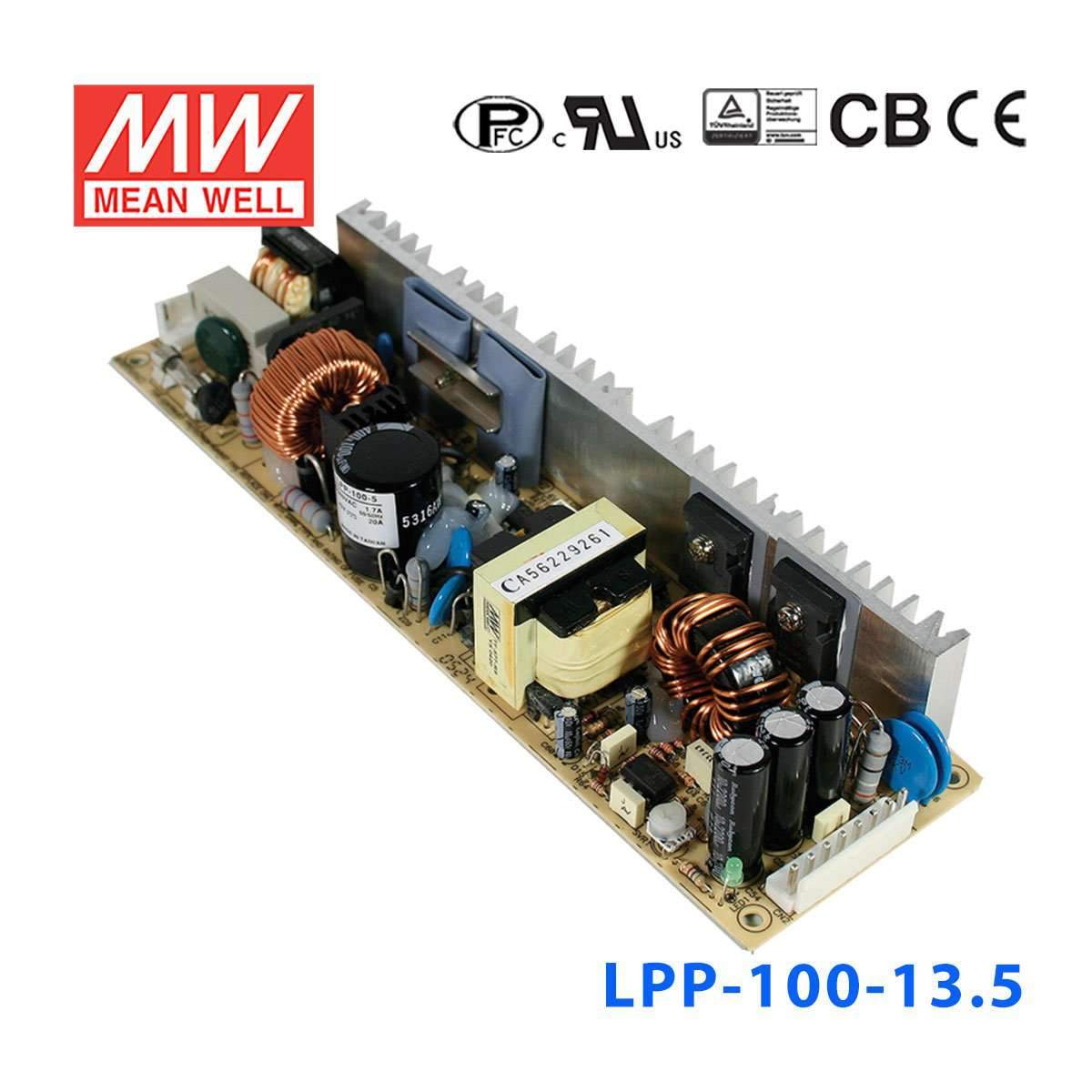

Mean Well LPP-100-13.5 Power Supply 101W 13.5V
The LPP-100 is a 100W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating101.25 Watt
-
Output Voltage13.5 Volt
-
Rated Current7.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.44 in
-
Height1.32 in
-
Weight1.12 lb
::specification::
Frequently Asked Questions
Can I use the LPP-100-13.5 for 13.5V backup, telecom, or control equipment?
It is designed for constant-voltage 13.5V output, so it can fit equipment that specifically calls for a 13.5V DC source. The available output is 101.25W and 7.5A, so the connected load needs to stay within both limits. Its 85-264VAC input also supports operation across a broad AC input range.
Is the LPP-100-13.5 a good fit for embedded systems that require 13.5V DC?
Yes, if the electronics are built for a fixed 13.5V supply and total demand does not exceed 101.25W or 7.5A. This is a constant-voltage model, which makes it more appropriate for regulated DC equipment than for devices that need constant-current drive. The compact 222.0 x 62.0 x 33.6 mm size can also help in constrained enclosures.
Can the LPP-100-13.5 be used in industrial test stands or maintenance benches with mixed AC input conditions?
It can be practical in those settings because the input range is 85-264VAC and the output is a fixed 13.5V DC. That makes it useful where the AC source may vary but the downstream equipment still requires stable 13.5V power. The load still has to remain within the 101.25W and 7.5A ratings.
What are the key differences between the LPP-100-13.5 and the other LPP family options listed here?
The LPP-100 siblings listed are 3.3V 20A 66W, 5V 20A 100W, 7.5V 13.5A 101.25W, 12V 8.5A 102W, 13.5V 7.5A 101.25W, 15V 6.7A 100.5W, 24V 4.2A 100.8W, 27V 3.8A 102.6W, and 48V 2.1A 100.8W. The LPP-150 siblings listed are 3.3V 30A 99W, 5V 30A 150W, 7.5V 20A 150W, 12V 12.5A 150W, 13.5V 11.2A 151.2W, 15V 10A 150W, 24V 6.3A 151.2W, 27V 5.6A 151.2W, and 48V 3.2A 153.6W. LPP-150-24-OB is also named in the sibling list, but no detailed electrical specs were provided for it in this input.
Can the LPP-100-13.5 be used in outdoor cabinets or unsealed environments?
The only environmental figures provided here are the operating range of -10C to +60C and the absence of an IP rating in the listed specs. That means the supplied data supports temperature planning, but it does not confirm protection against rain, washdown, or dust ingress. For that reason, the product information given here supports indoor or enclosure-protected use rather than direct outdoor exposure.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPP-100 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPP-100-7.5 Power Supply 101W 7.5V | 101.25W | 7.5V | 13.5A | Indoor | $37.12 | View |
| Mean Well LPP-100-5 Power Supply 100W 5V | 100W | 5V | 20A | Indoor | $37.12 | View |
| Mean Well LPP-100-48 Power Supply 100W 48V | 100.8W | 48V | 2.1A | Indoor | $37.12 | View |
| Mean Well LPP-100-3.3 Power Supply 66W 3.3V | 66W | 3.3V | 20A | Indoor | $37.12 | View |
| Mean Well LPP-100-27 Power Supply 102W 27V | 102.6W | 27V | 3.8A | Indoor | $37.12 | View |
| Mean Well LPP-100-24 Power Supply 100W 24V | 100.8W | 24V | 4.2A | Indoor | $37.22 | View |
| Mean Well LPP-100-15 Power Supply 100W 15V | 100.5W | 15V | 6.7A | Indoor | $37.12 | View |
| Mean Well LPP-100-12 Power Supply 102W 12V | 102W | 12V | 8.5A | Indoor | $37.22 | View |
