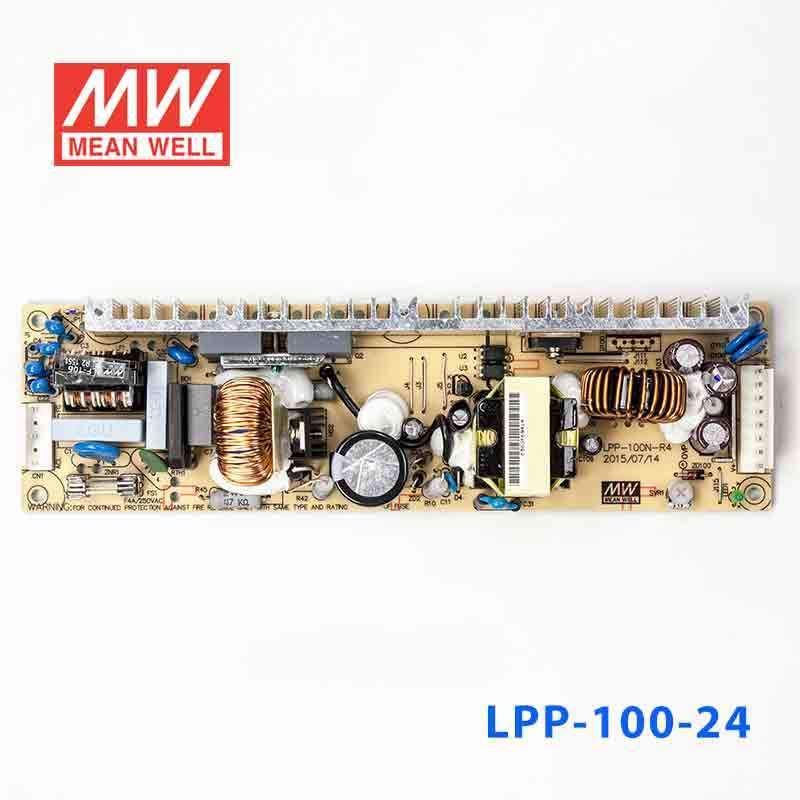

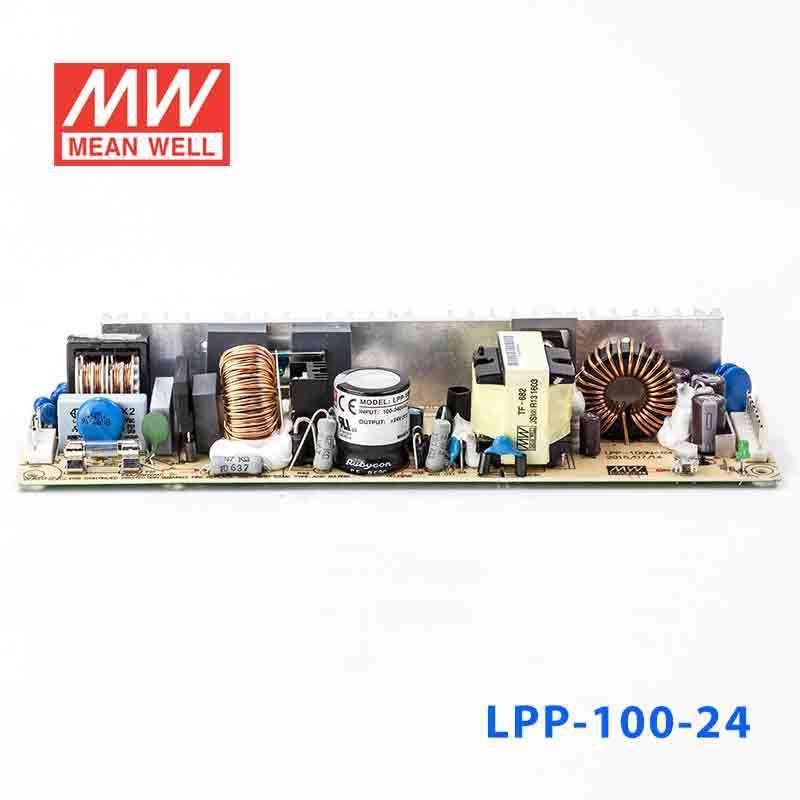

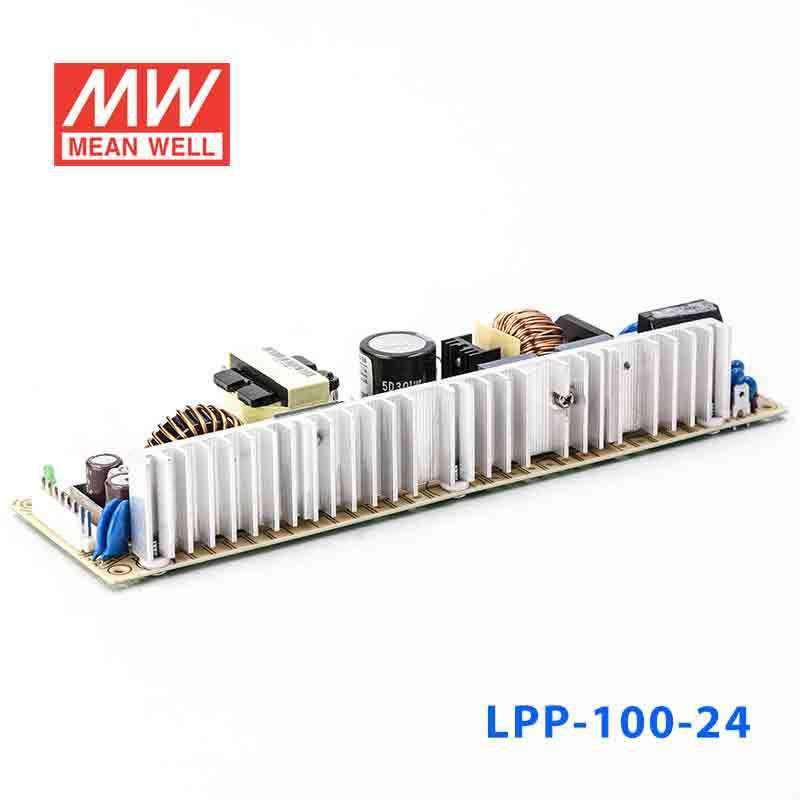

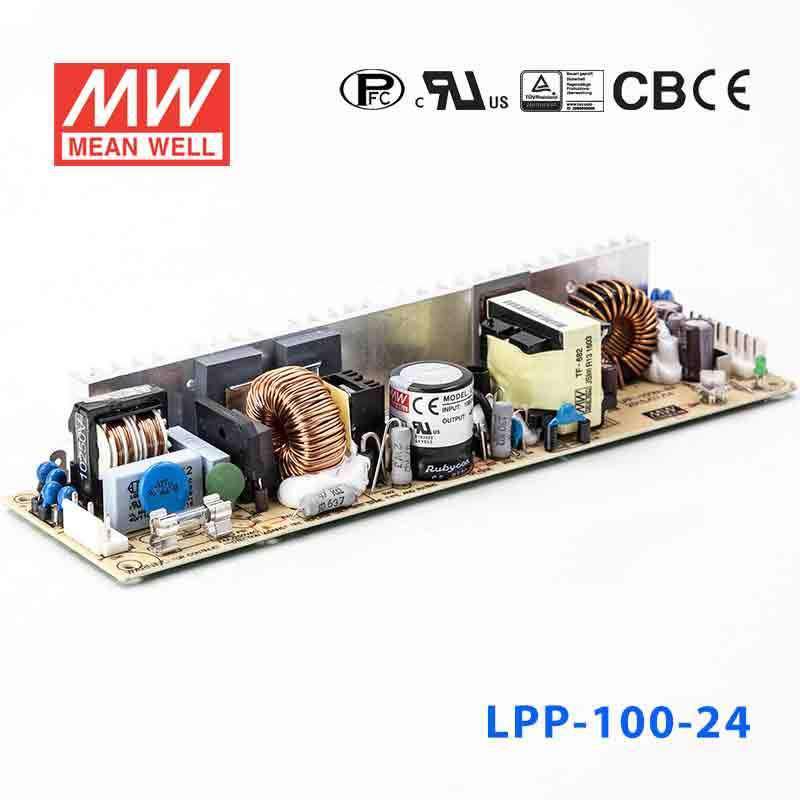

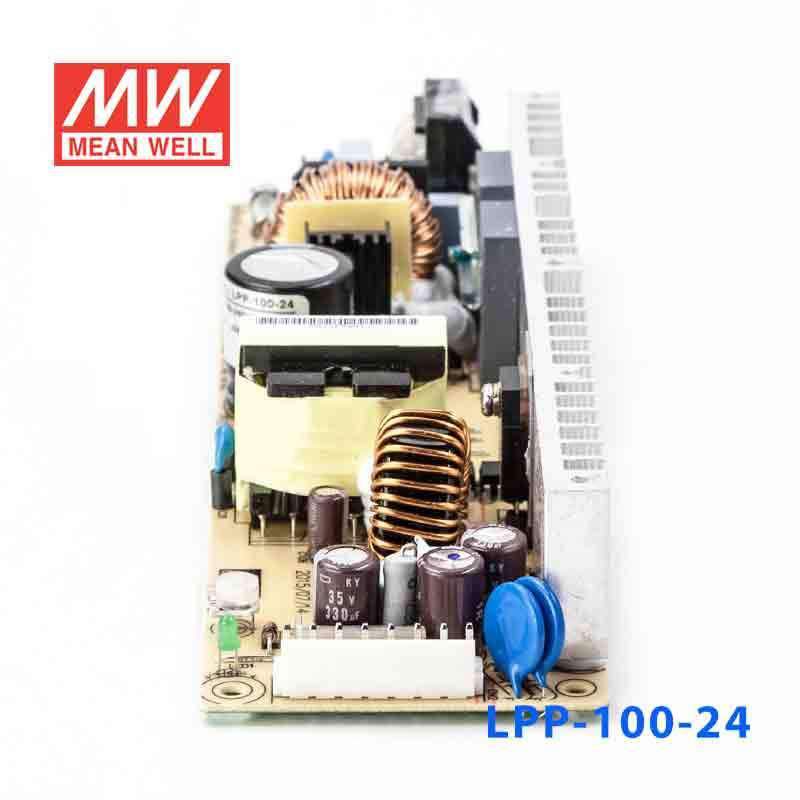

Mean Well LPP-100-24 Power Supply 100W 24V

small and compact, built-in active PFC function
SKU:
LPP-100-24

$37.22 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage
100% full load burn-in test
Built-in active PFC function
3 years warranty for LPP series

General Specification

AC input voltage range 85~264VAC
AC inrush current(230VAC) 30A
DC adjustment range -5%~+10% rated output voltage
Overload protection Range 105%~150% rated output power
Overload protection Type Constant current limiting, auto recovery
Over voltage protection Range 110%~135% of rated output voltage
Over voltage protection Type Shut off, AC recycle to re-start
Withstand voltage I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature -10~+60°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection 5P+8P/3.96mm pitch, JST B5P / B8P-VH
Dimension (LxWxH) 222x62x33.6
Packing 24pcs / 13.9kg

Specifications

  • Brand
    Mean Well
  • Series
    LPP Series
  • Power Rating
    100.8 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    4.2 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    3 Year
  • Length
    8.74 in
  • Width
    2.44 in
  • Height
    1.32 in
  • Weight
    1.12 lb
