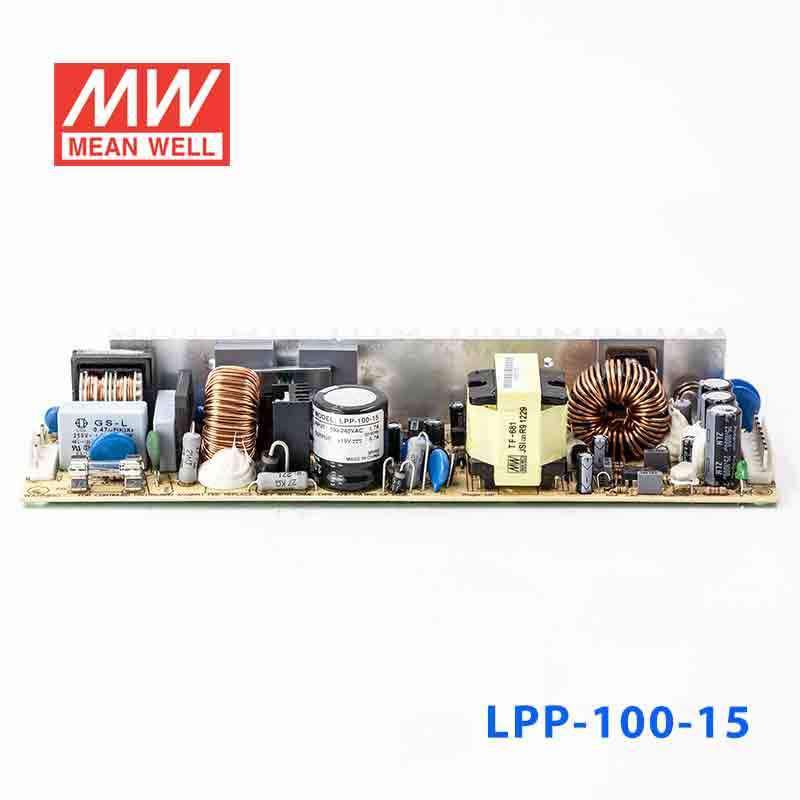

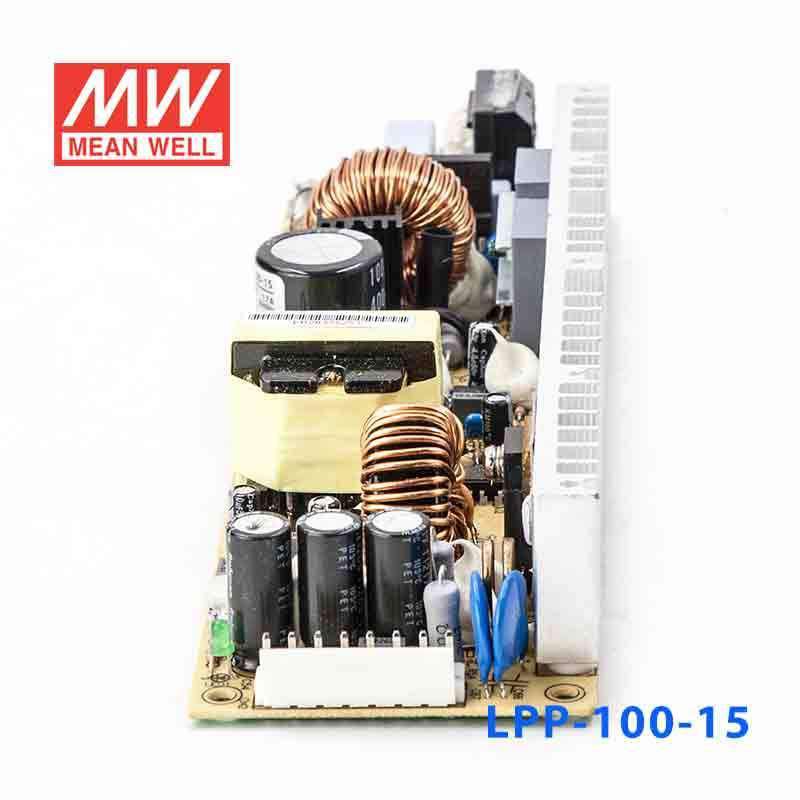

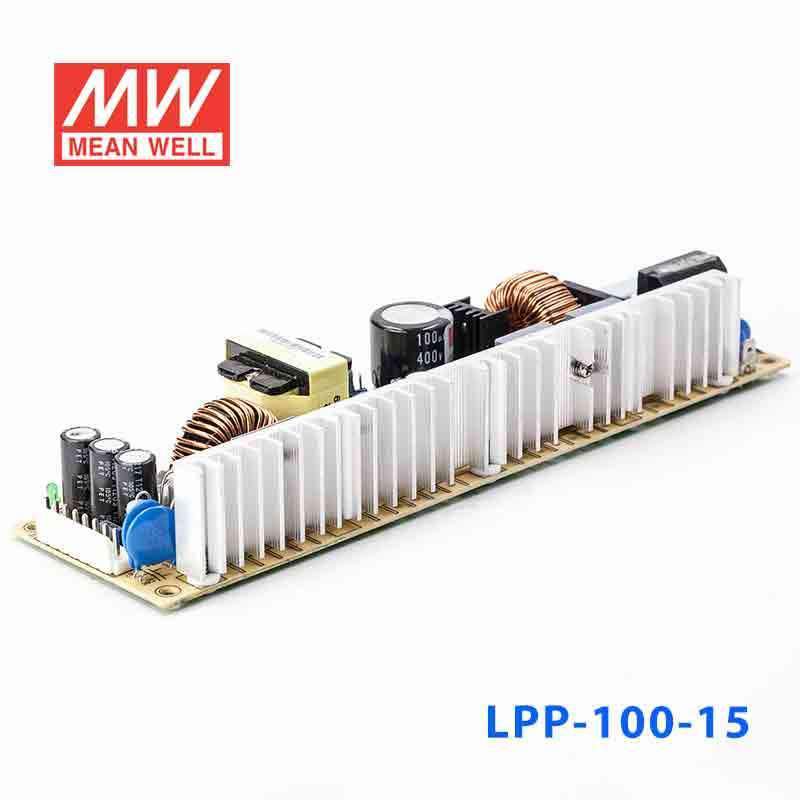

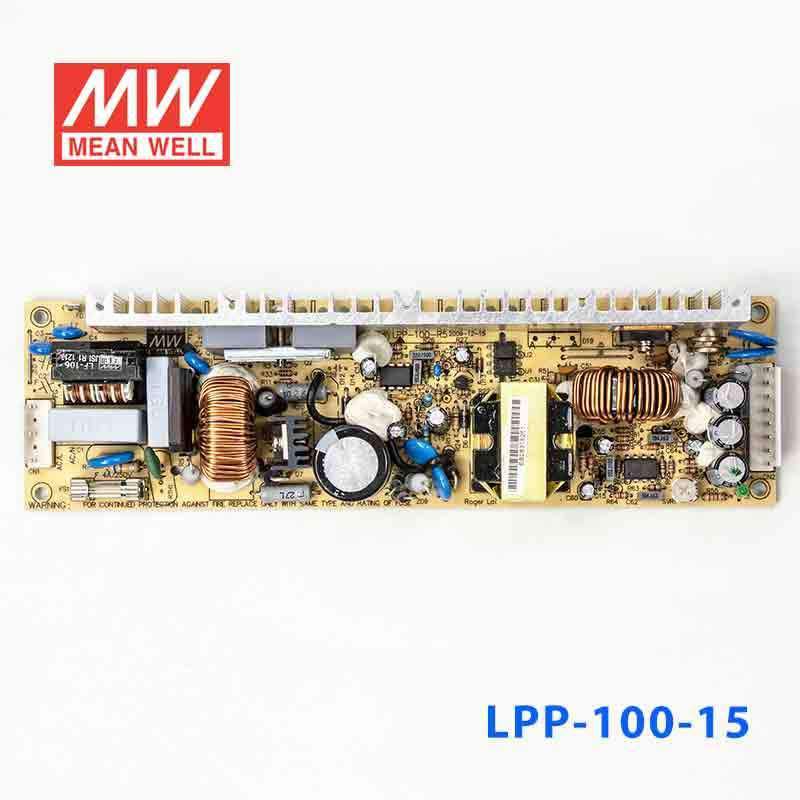

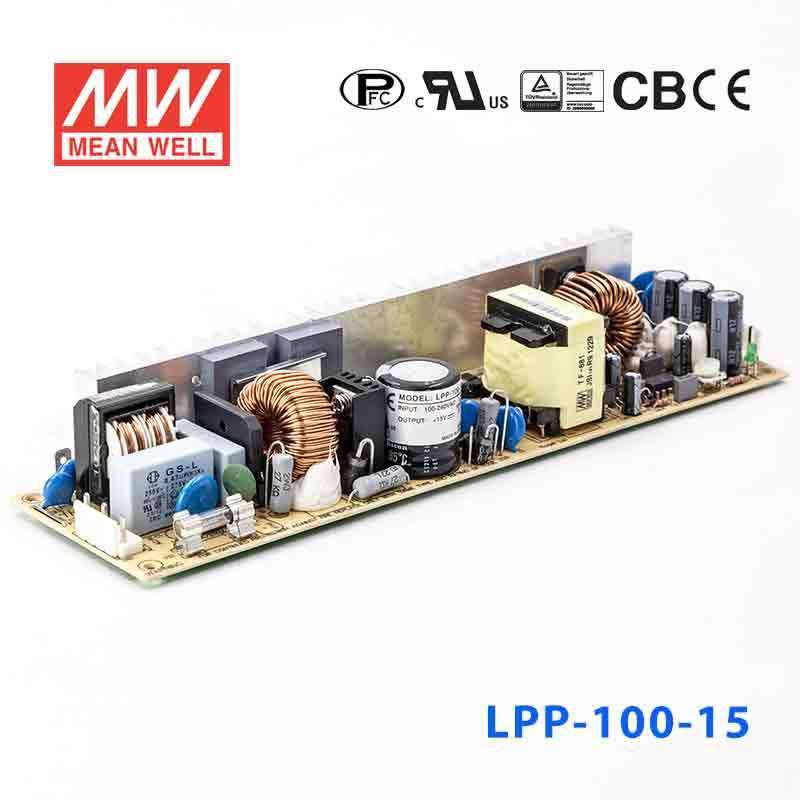

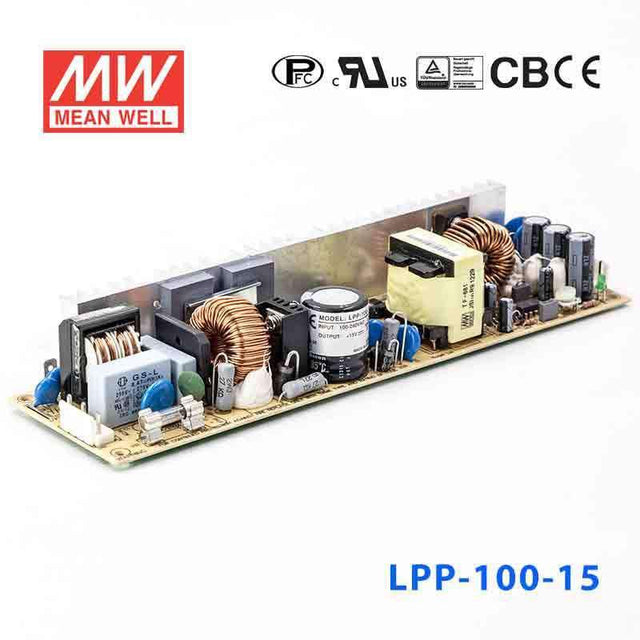

Mean Well LPP-100-15 Power Supply 100W 15V
The LPP-100 is a 100W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating100.5 Watt
-
Output Voltage15 Volt
-
Rated Current6.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.44 in
-
Height1.32 in
-
Weight1.12 lb
::specification::
Frequently Asked Questions
Can I use the LPP-100-15 for 15V industrial instruments or automation electronics?
It can fit 15V industrial electronics that require constant-voltage DC and draw no more than 100.5W or 6.7A. That makes it relevant for instruments, controllers, and other 15V loads where a fixed DC bus is required. The broad 85-264VAC input also helps when equipment may be deployed across different AC supply standards.
Is the LPP-100-15 suitable for embedded devices that need a regulated 15V power source?
Yes, provided the device is specified for 15V constant-voltage input and the full load stays within 100.5W and 6.7A. This model is not a constant-current driver, so it is meant for equipment expecting a fixed 15V DC supply. Its compact 222.0 x 62.0 x 33.6 mm package can be useful in space-constrained embedded builds.
Can the LPP-100-15 be used for 15V lab fixtures, OEM assemblies, or panel sub-systems?
It is suitable for those types of 15V DC applications when the total demand remains within the unit's 100.5W and 6.7A output ratings. The small and compact design and 0.51 kg weight can make integration easier in OEM or bench assemblies. Buyers should confirm the load expects constant-voltage 15V operation.
How does the LPP-100-15 differ from the other listed LPP outputs and power levels?
The LPP-100 family options listed are 3.3V 20A 66W, 5V 20A 100W, 7.5V 13.5A 101.25W, 12V 8.5A 102W, 13.5V 7.5A 101.25W, 15V 6.7A 100.5W, 24V 4.2A 100.8W, 27V 3.8A 102.6W, and 48V 2.1A 100.8W. The LPP-150 range listed moves to 3.3V 30A 99W, 5V 30A 150W, 7.5V 20A 150W, 12V 12.5A 150W, 13.5V 11.2A 151.2W, 15V 10A 150W, 24V 6.3A 151.2W, 27V 5.6A 151.2W, and 48V 3.2A 153.6W. LPP-150-24-OB appears in the list as well, but no numeric specs were supplied for that version here.
Is the LPP-100-15 rated for outdoor conditions or only for protected environments?
From the specs provided, the environmental data given is -10C to +60C operating temperature. No IP rating is included in this product data, so the provided specifications do not document protection against water or dust exposure. On that basis, it should be treated as a supply for protected installations unless separate enclosure protection is provided.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPP-100 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPP-100-7.5 Power Supply 101W 7.5V | 101.25W | 7.5V | 13.5A | Indoor | $37.12 | View |
| Mean Well LPP-100-5 Power Supply 100W 5V | 100W | 5V | 20A | Indoor | $37.12 | View |
| Mean Well LPP-100-48 Power Supply 100W 48V | 100.8W | 48V | 2.1A | Indoor | $37.12 | View |
| Mean Well LPP-100-3.3 Power Supply 66W 3.3V | 66W | 3.3V | 20A | Indoor | $37.12 | View |
| Mean Well LPP-100-27 Power Supply 102W 27V | 102.6W | 27V | 3.8A | Indoor | $37.12 | View |
| Mean Well LPP-100-24 Power Supply 100W 24V | 100.8W | 24V | 4.2A | Indoor | $37.22 | View |
| Mean Well LPP-100-13.5 Power Supply 101W 13.5V | 101.25W | 13.5V | 7.5A | Indoor | $37.12 | View |
| Mean Well LPP-100-12 Power Supply 102W 12V | 102W | 12V | 8.5A | Indoor | $37.22 | View |
