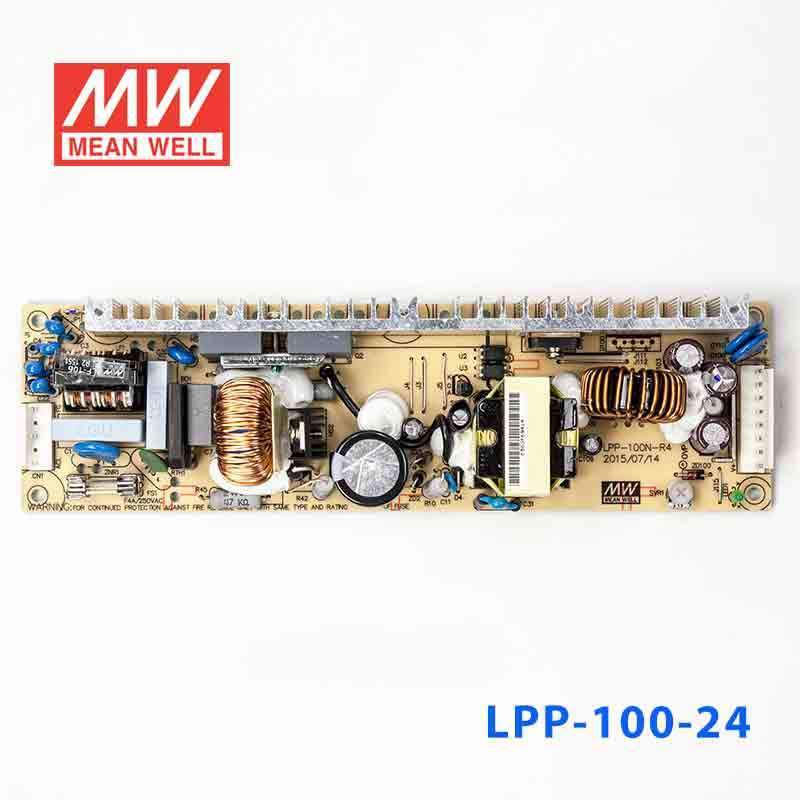

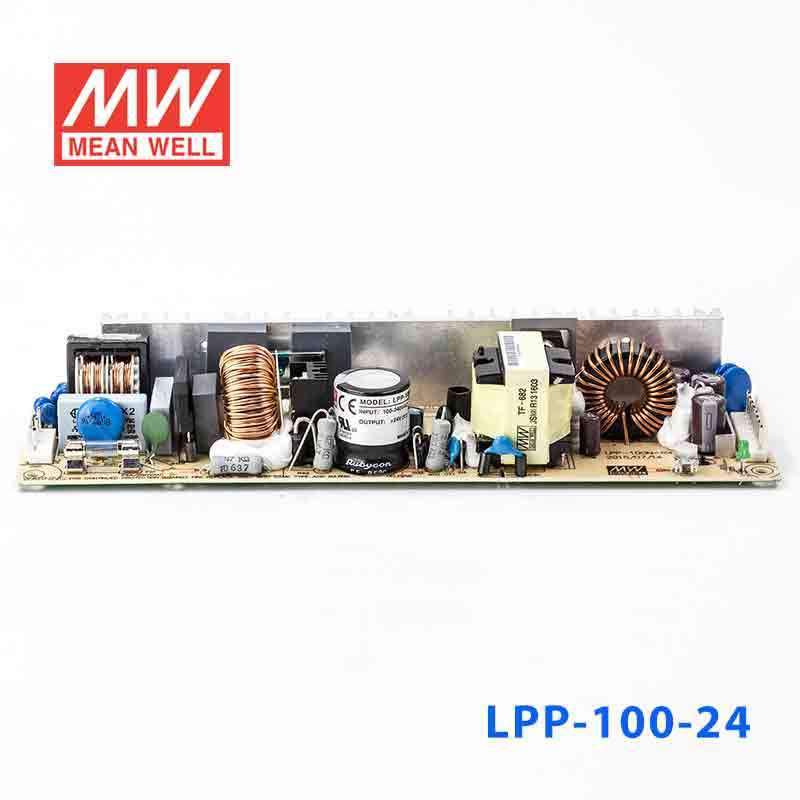

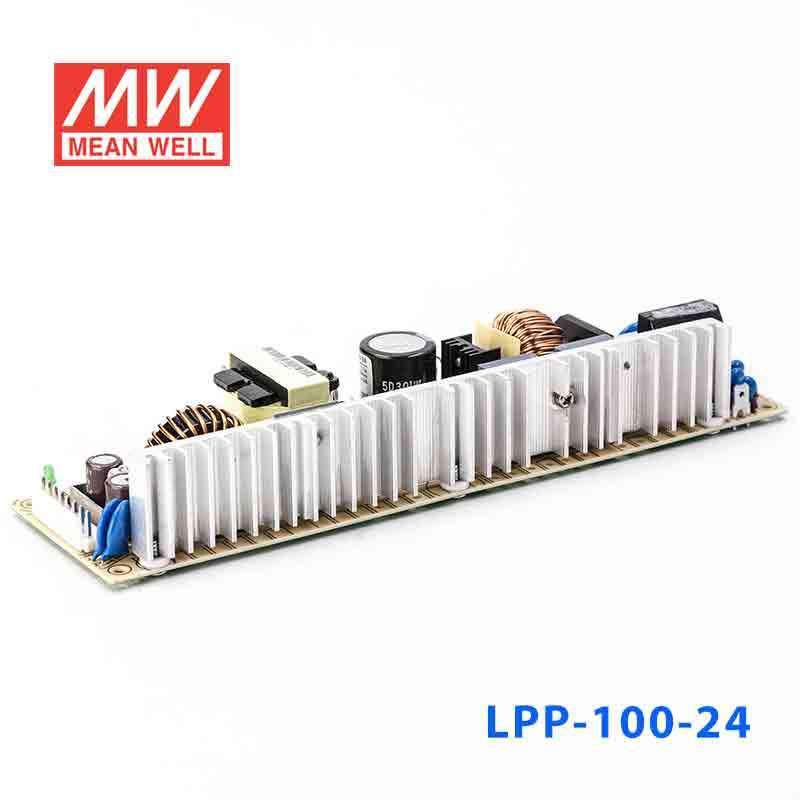

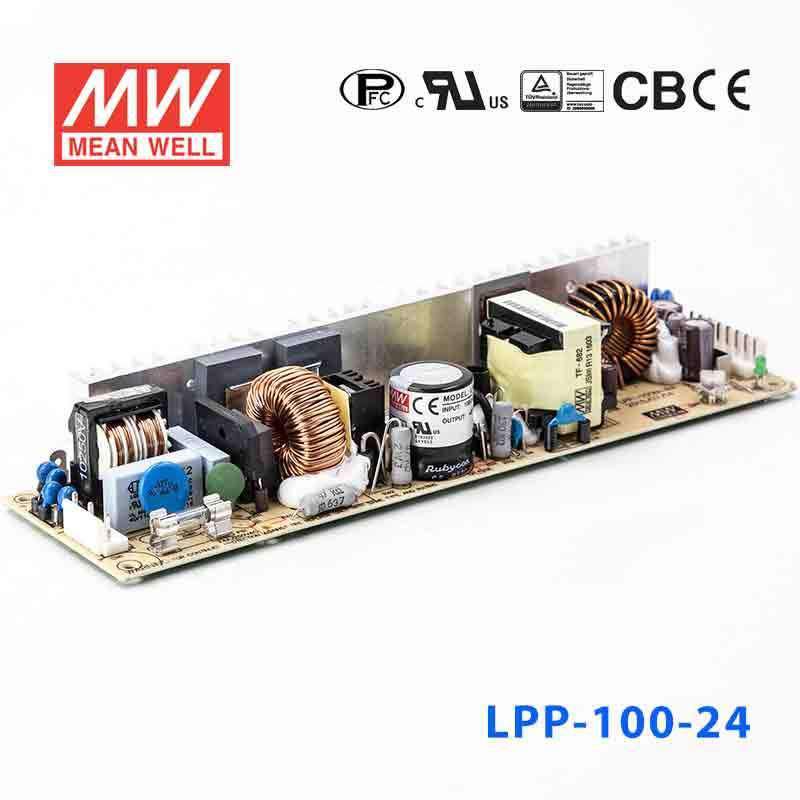

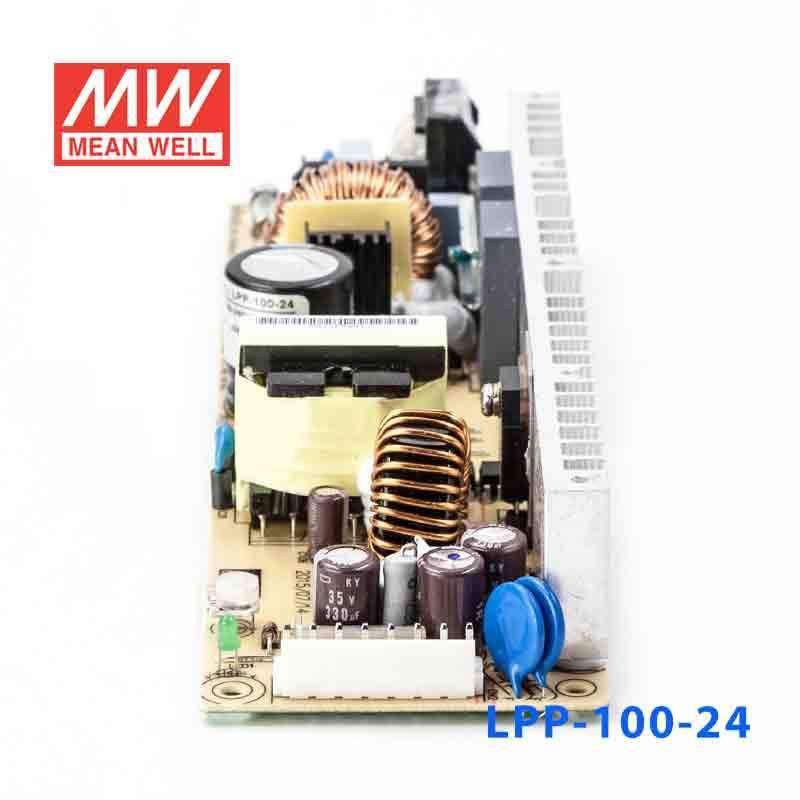

Mean Well LPP-100-24 Power Supply 100W 24V
The LPP-100 is a 100W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating100.8 Watt
-
Output Voltage24 Volt
-
Rated Current4.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.44 in
-
Height1.32 in
-
Weight1.12 lb
::specification::
Frequently Asked Questions
Can I use the LPP-100-24 for a 24V industrial control panel?
Yes, this model is a constant voltage power supply with a 24V output rated for 4.2A and 100.8W. Those specs fit 24V control equipment that needs a fixed 24V DC source within that power budget.
Is the LPP-100-24 suitable for 24V automation sensors and I/O devices?
It can be a fit for 24V automation loads when the combined demand stays within 4.2A and 100.8W. The unit provides constant voltage output, which is the normal requirement for 24V DC sensors, relays, and I/O hardware.
Can this power supply run a 24V embedded system or industrial PC setup?
It is appropriate for 24V embedded or industrial electronics that are designed for constant voltage input. The available output is 24V at up to 4.2A, with an AC input range of 85-264VAC for broad mains compatibility.
Would the LPP-100-24 work for a 24V HMI or small automation subsystem?
Yes, if the subsystem requires a steady 24V DC supply and stays within 100.8W total load. The compact housing at 222.0 × 62.0 × 33.6 mm can also help in space-constrained equipment layouts.
Is the LPP-100-24 appropriate for outdoor or washdown environments?
The provided specs list an operating temperature range of -10°C to +60°C, but they do not list an IP rating. That means temperature suitability is defined, while enclosure protection for water or dust is not established in the provided data.
