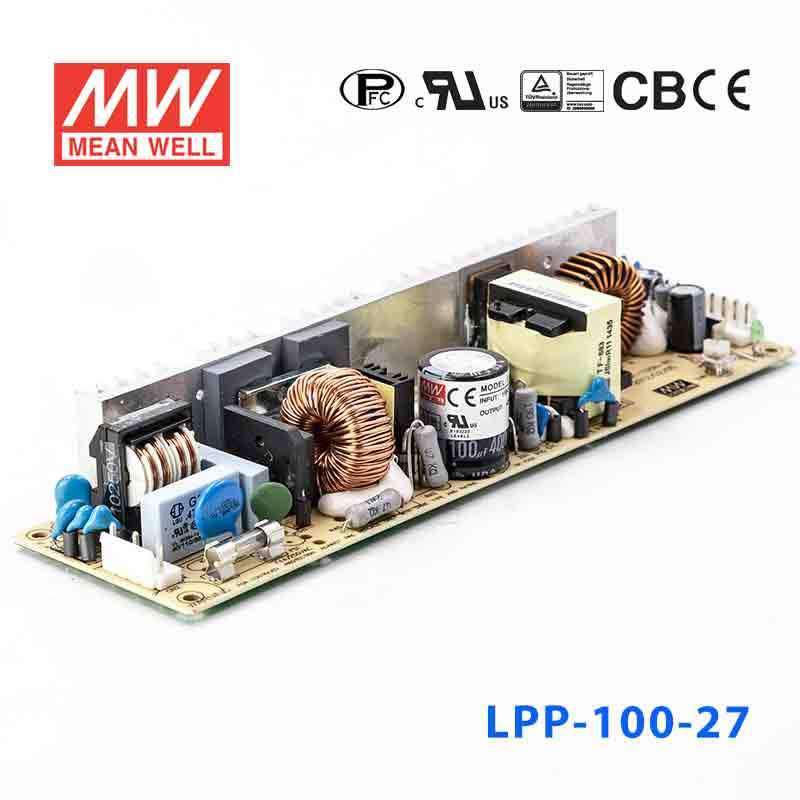

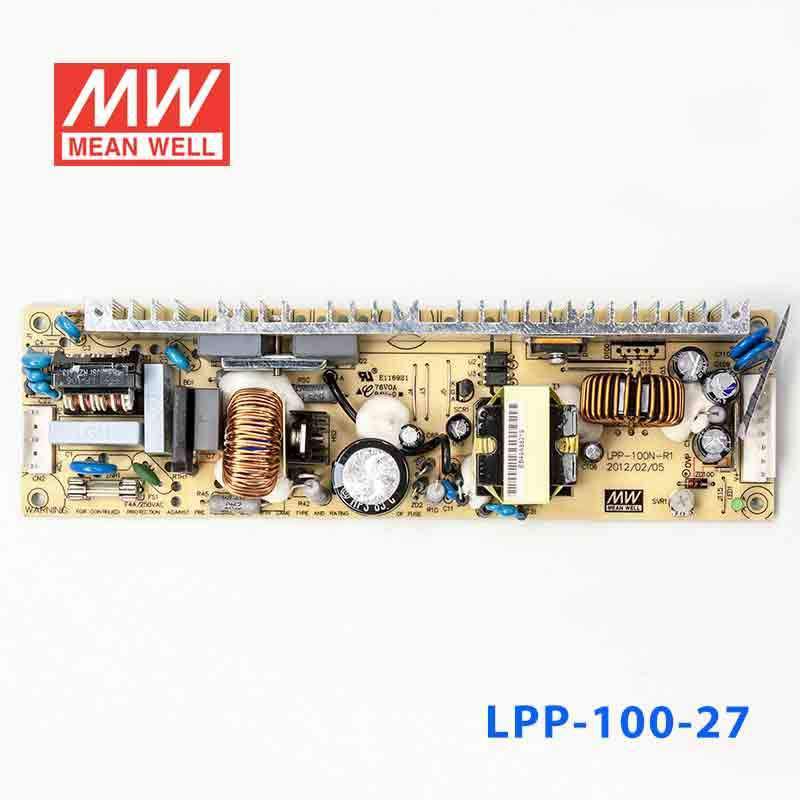

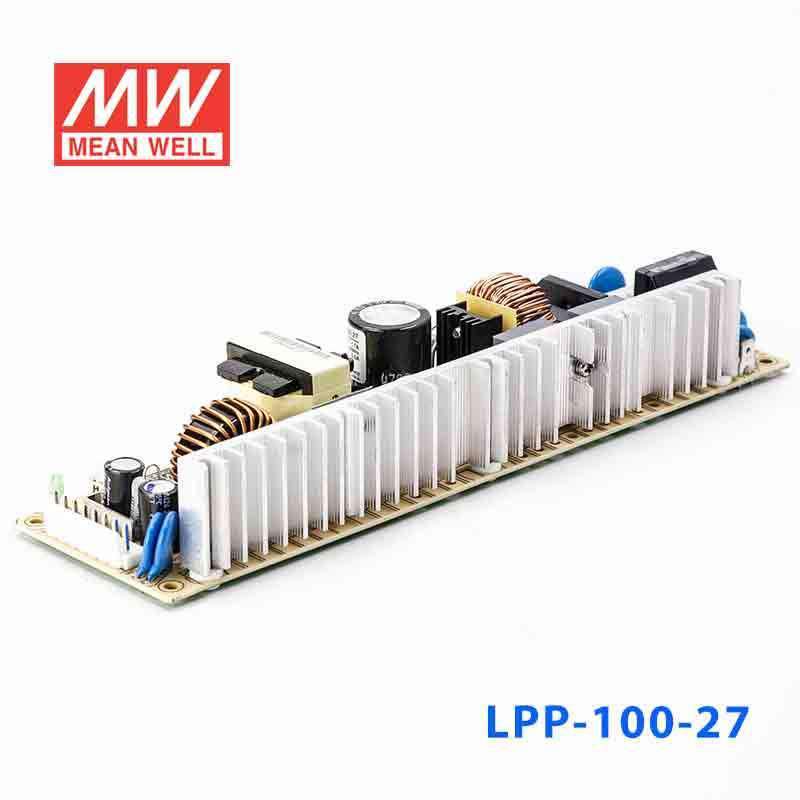

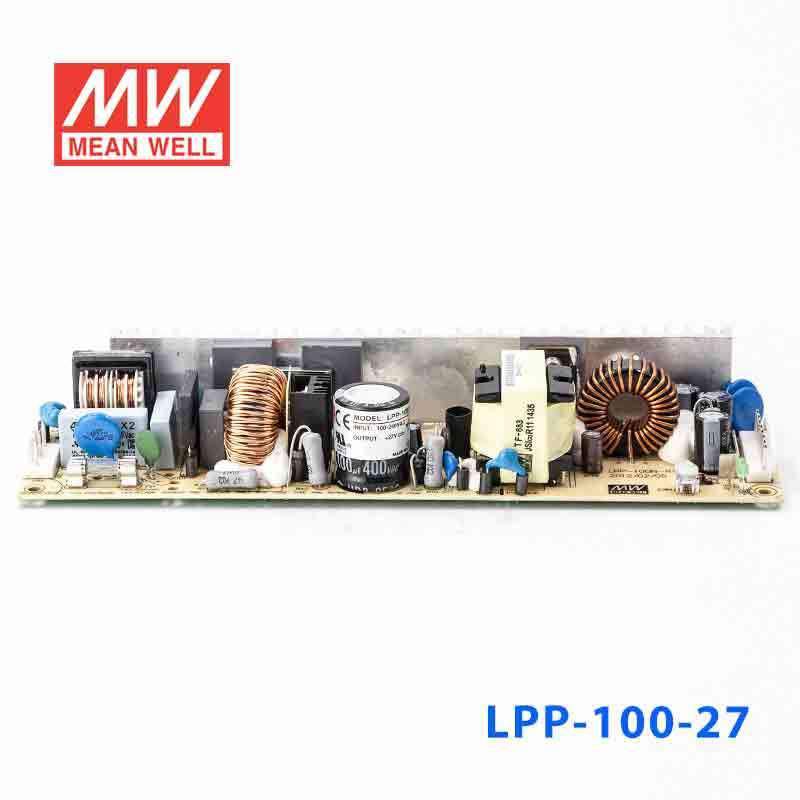

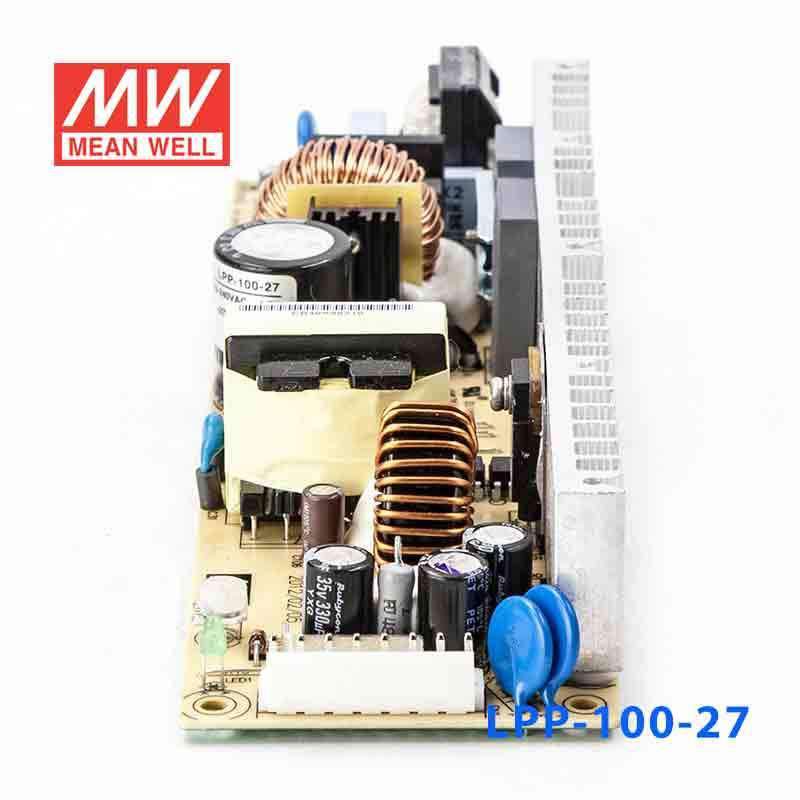

Mean Well LPP-100-27 Power Supply 102W 27V
The LPP-100 is a 100W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating102.6 Watt
-
Output Voltage27 Volt
-
Rated Current3.8 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.44 in
-
Height1.32 in
-
Weight1.12 lb
::specification::
Frequently Asked Questions
Can I use the LPP-100-27 for a 27V industrial control application?
Yes, this model provides constant 27V output up to 3.8A, with a total output rating of 102.6W. That makes it suitable for 27V DC equipment that needs a fixed-voltage supply within those limits.
Is the LPP-100-27 a good fit for 27V automation equipment in a compact enclosure?
It can be a fit for compact automation assemblies because it combines a 27V constant voltage output with a 222.0 × 62.0 × 33.6 mm housing. The available output capacity is 3.8A and 102.6W.
Can this power supply support a 27V embedded or control electronics load?
It is suitable for electronics designed around a 27V constant voltage input, provided the total load does not exceed 3.8A or 102.6W. The input range of 85-264VAC also supports use across common AC mains sources.
Would the LPP-100-27 work for a 27V subsystem in industrial equipment?
Yes, for subsystems that require a stable 27V DC source rather than constant current output. This unit is rated at 27V, 3.8A, and 102.6W, so the connected load needs to stay within those values.
Can the LPP-100-27 be used in outdoor or damp environments?
The listed specs include IP67 and an operating temperature range of -10°C to +60°C. Based on those two specifications, it is better suited to environments where dust and water protection matter than models without an IP rating.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPP-100 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPP-100-7.5 Power Supply 101W 7.5V | 101.25W | 7.5V | 13.5A | Indoor | $37.12 | View |
| Mean Well LPP-100-5 Power Supply 100W 5V | 100W | 5V | 20A | Indoor | $37.12 | View |
| Mean Well LPP-100-48 Power Supply 100W 48V | 100.8W | 48V | 2.1A | Indoor | $37.12 | View |
| Mean Well LPP-100-3.3 Power Supply 66W 3.3V | 66W | 3.3V | 20A | Indoor | $37.12 | View |
| Mean Well LPP-100-24 Power Supply 100W 24V | 100.8W | 24V | 4.2A | Indoor | $37.22 | View |
| Mean Well LPP-100-15 Power Supply 100W 15V | 100.5W | 15V | 6.7A | Indoor | $37.12 | View |
| Mean Well LPP-100-13.5 Power Supply 101W 13.5V | 101.25W | 13.5V | 7.5A | Indoor | $37.12 | View |
| Mean Well LPP-100-12 Power Supply 102W 12V | 102W | 12V | 8.5A | Indoor | $37.22 | View |
