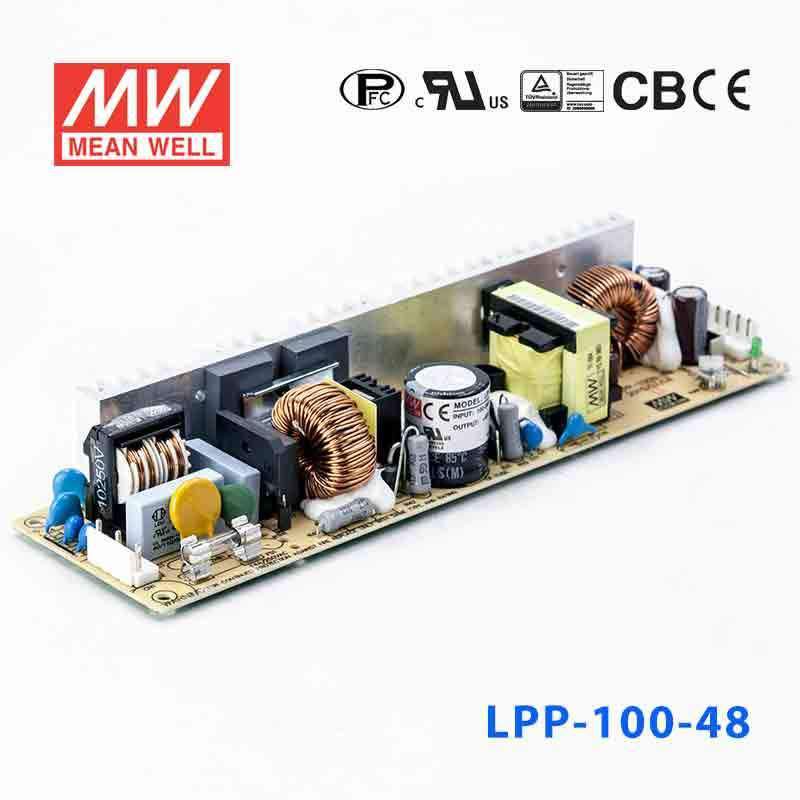

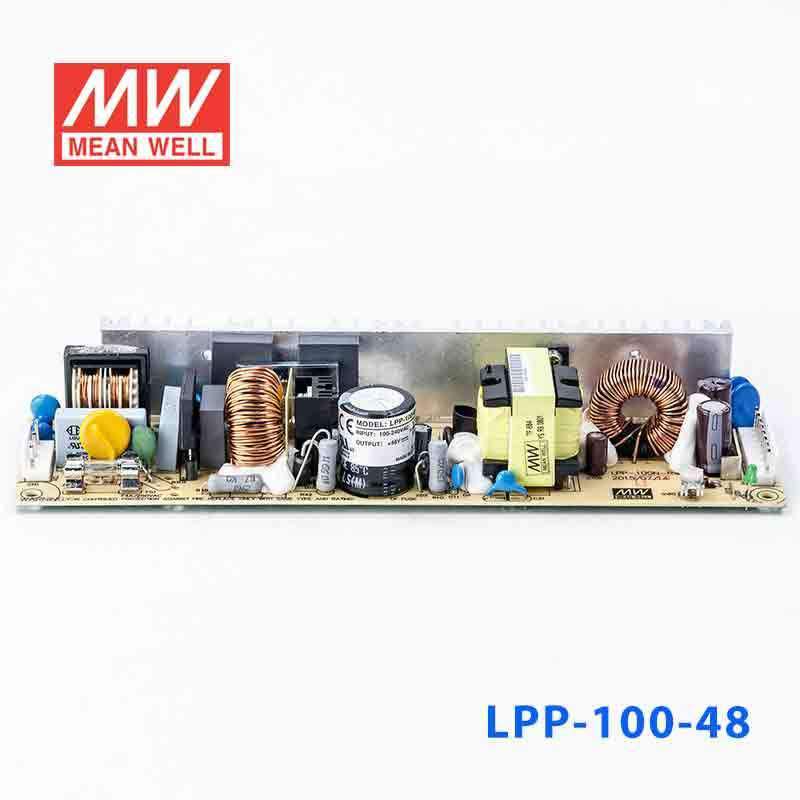

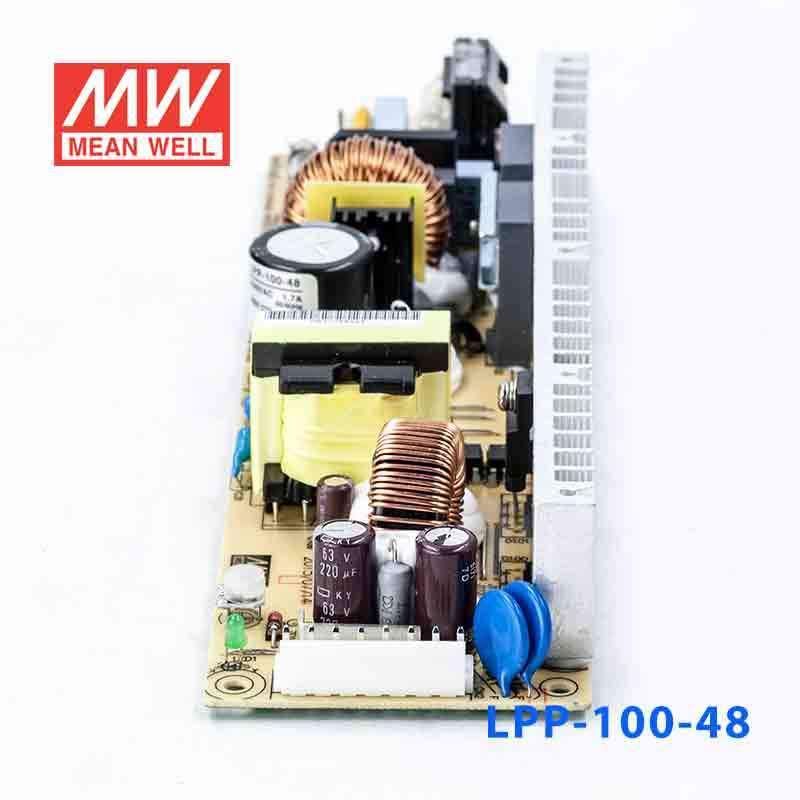

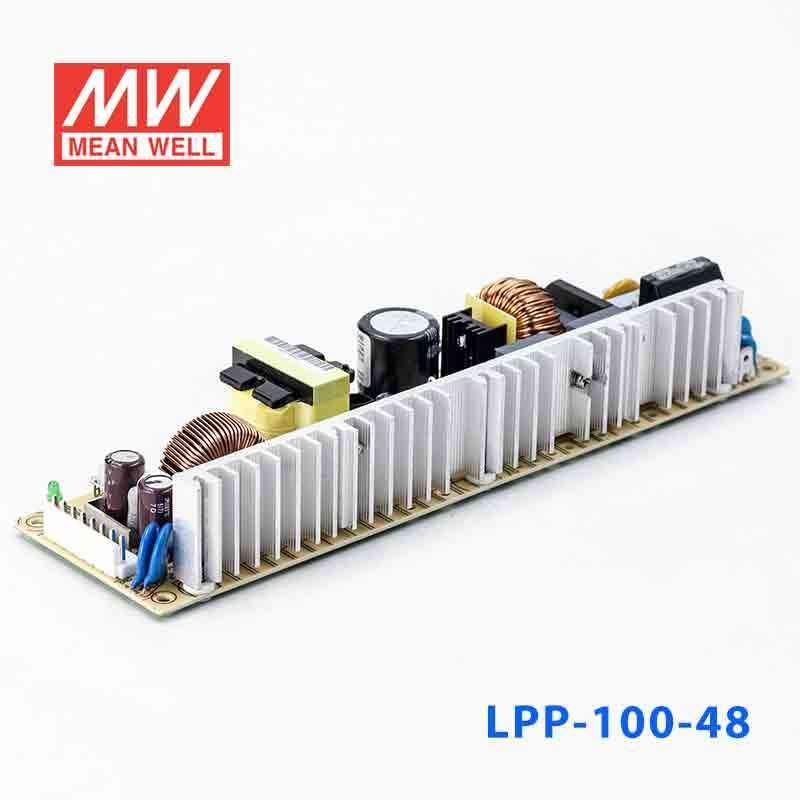

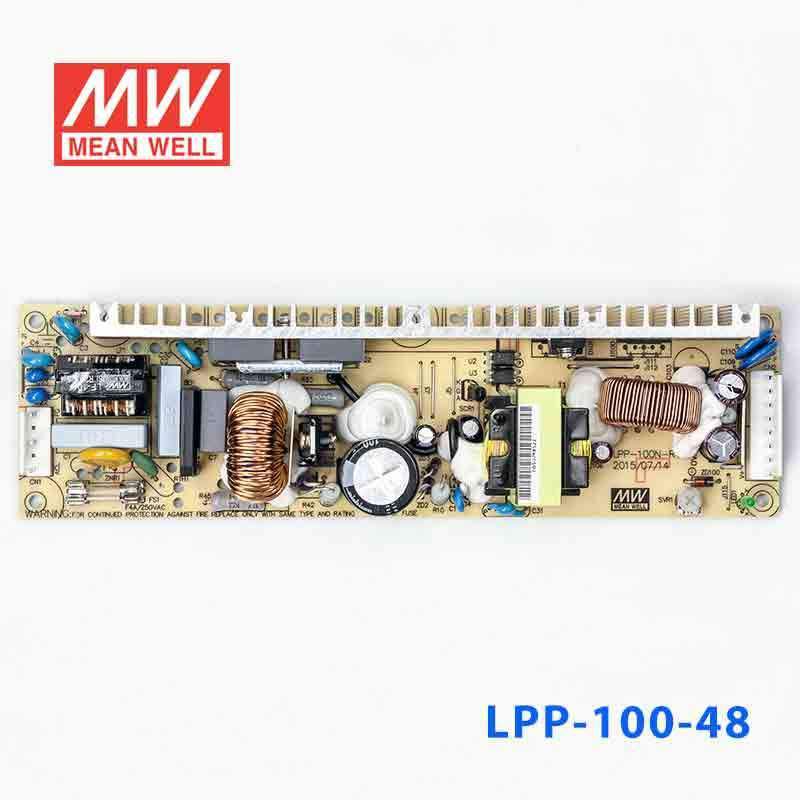

Mean Well LPP-100-48 Power Supply 100W 48V
The LPP-100 is a 100W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating100.8 Watt
-
Output Voltage48 Volt
-
Rated Current2.1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.44 in
-
Height1.32 in
-
Weight1.12 lb
::specification::
Frequently Asked Questions
Can I use the LPP-100-48 for a 48V industrial control or automation load?
Yes, this unit provides a constant 48V output rated for 2.1A and 100.8W. It fits 48V DC equipment that needs a fixed-voltage source within that current and power envelope.
Is the LPP-100-48 suitable for 48V telecom or network equipment?
It can be suitable for 48V electronics that are designed for constant voltage input and draw no more than 2.1A. The power limit is 100.8W, and the AC input range is 85-264VAC.
Would this power supply work for a 48V embedded or industrial communications subsystem?
Yes, when the subsystem is specified for 48V DC and stays within 100.8W total output. The available output current is 2.1A, so that is the main sizing limit for the connected load.
Can the LPP-100-48 be used in a compact 48V equipment design?
It is a practical fit for compact equipment layouts because the housing measures 222.0 × 62.0 × 33.6 mm. Electrically, it supplies 48V constant voltage at up to 2.1A.
Is the LPP-100-48 rated for outdoor use?
The listed operating temperature range is -10°C to +60°C, but the provided specs do not include an IP rating. That means temperature capability is defined, while outdoor exposure protection is not specified here.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPP-100 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPP-100-7.5 Power Supply 101W 7.5V | 101.25W | 7.5V | 13.5A | Indoor | $37.12 | View |
| Mean Well LPP-100-5 Power Supply 100W 5V | 100W | 5V | 20A | Indoor | $37.12 | View |
| Mean Well LPP-100-3.3 Power Supply 66W 3.3V | 66W | 3.3V | 20A | Indoor | $37.12 | View |
| Mean Well LPP-100-27 Power Supply 102W 27V | 102.6W | 27V | 3.8A | Indoor | $37.12 | View |
| Mean Well LPP-100-24 Power Supply 100W 24V | 100.8W | 24V | 4.2A | Indoor | $37.22 | View |
| Mean Well LPP-100-15 Power Supply 100W 15V | 100.5W | 15V | 6.7A | Indoor | $37.12 | View |
| Mean Well LPP-100-13.5 Power Supply 101W 13.5V | 101.25W | 13.5V | 7.5A | Indoor | $37.12 | View |
| Mean Well LPP-100-12 Power Supply 102W 12V | 102W | 12V | 8.5A | Indoor | $37.22 | View |
