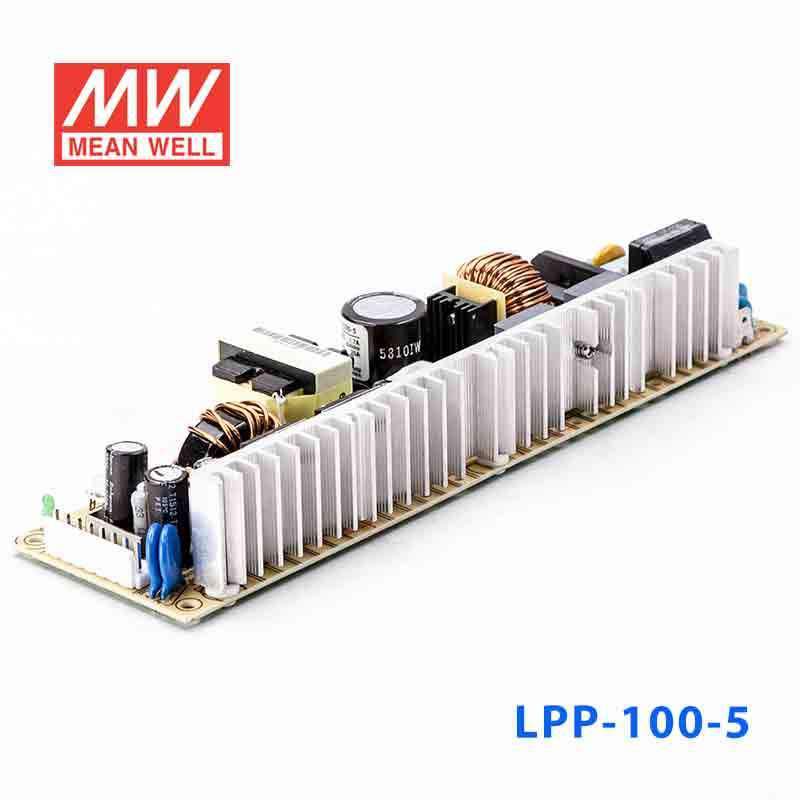

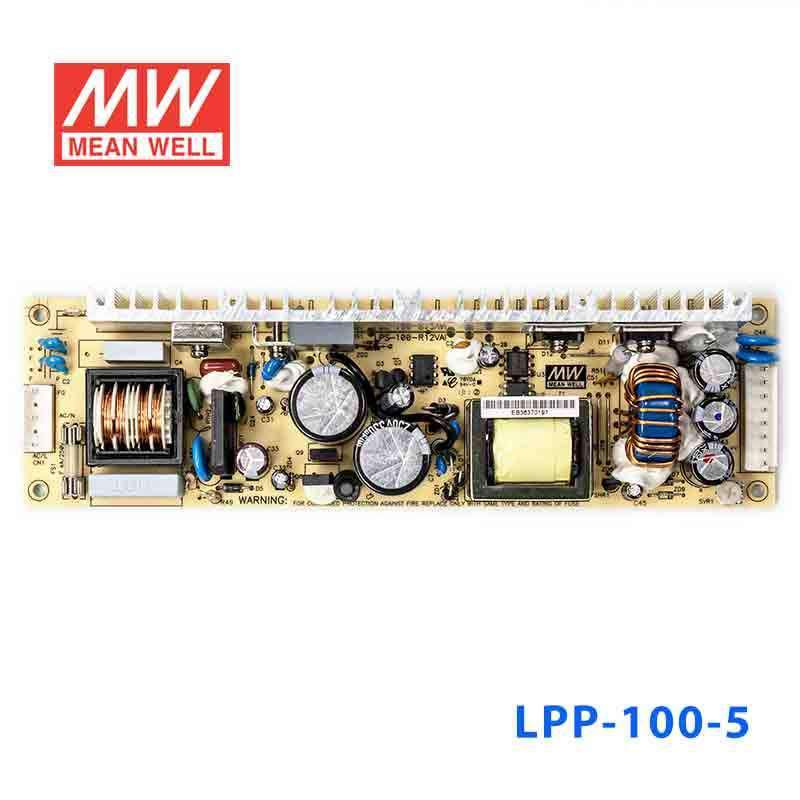

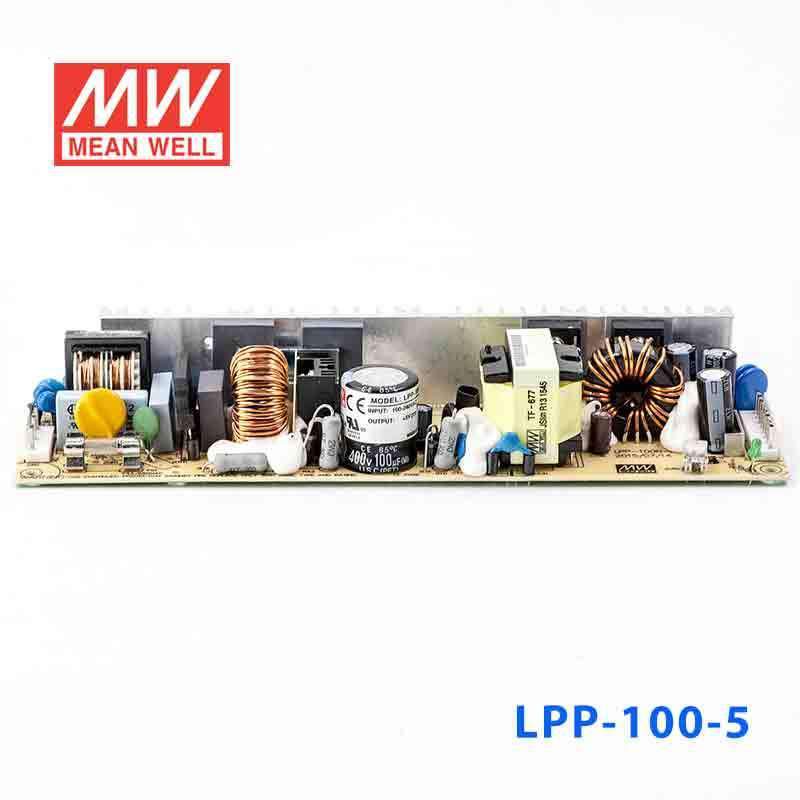

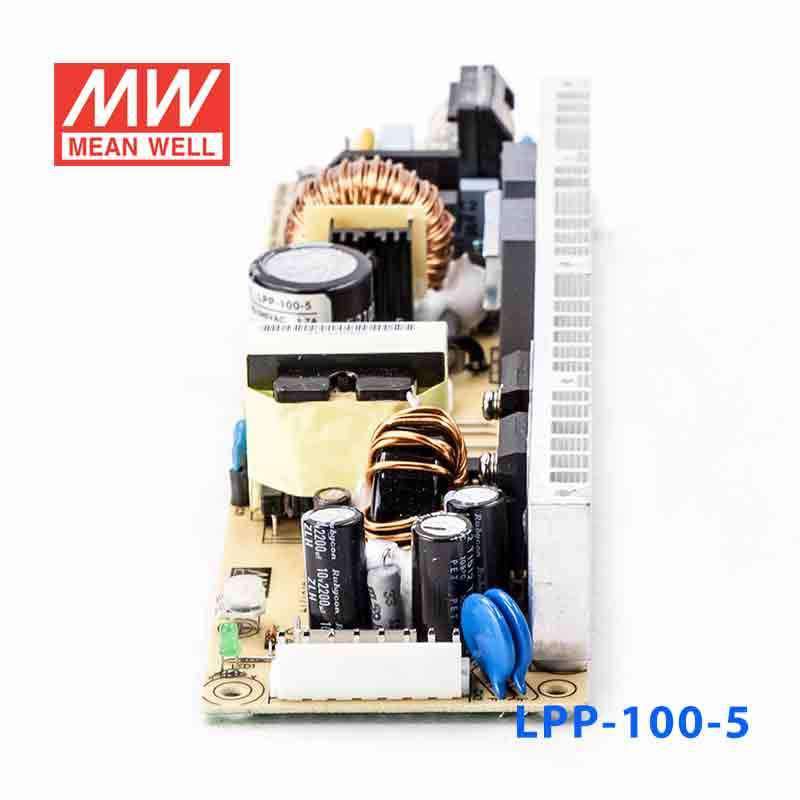

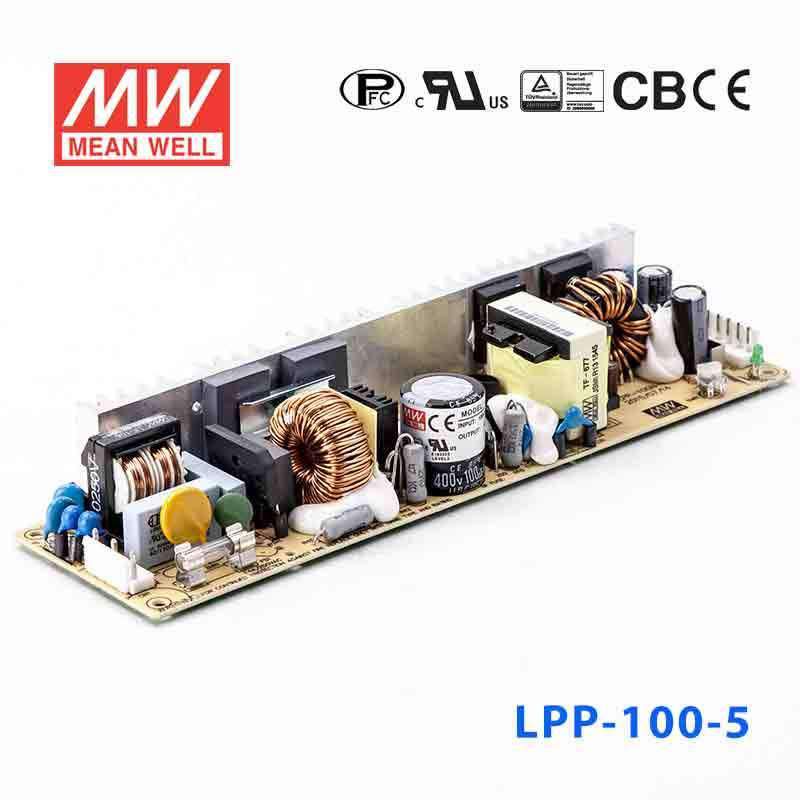

Mean Well LPP-100-5 Power Supply 100W 5V
The LPP-100 is a 100W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating100 Watt
-
Output Voltage5 Volt
-
Rated Current20 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.44 in
-
Height1.32 in
-
Weight1.12 lb
::specification::
Frequently Asked Questions
Can I use the LPP-100-5 for 5V industrial electronics or controller hardware?
Yes, this model provides a constant 5V DC output with up to 20A available and a total output rating of 100W. That suits 5V equipment that needs a regulated fixed-voltage supply within those limits.
Is the LPP-100-5 suitable for powering 5V logic, processors, or communication boards?
It can be a fit for 5V electronic loads that need high current, because the output is rated at 20A. The total connected load still needs to stay within the 100W rating.
Would the LPP-100-5 work for a 5V automation or embedded subsystem?
Yes, if the subsystem is designed for constant 5V DC input and does not exceed 20A or 100W. The 85-264VAC input range also makes it usable across a wide range of AC supply conditions.
Can this power supply support a 5V test fixture or industrial electronics bench assembly?
It is suitable for fixed 5V applications where a higher current output is required, up to 20A. Its dimensions of 222.0 × 62.0 × 33.6 mm can also help when bench hardware or enclosures have limited space.
Is the LPP-100-5 appropriate for outdoor or wet environments?
The provided specs define an operating temperature range of -10°C to +60°C, but they do not provide an IP rating. That means ambient temperature limits are stated, while water and dust ingress protection is not confirmed in the provided data.
