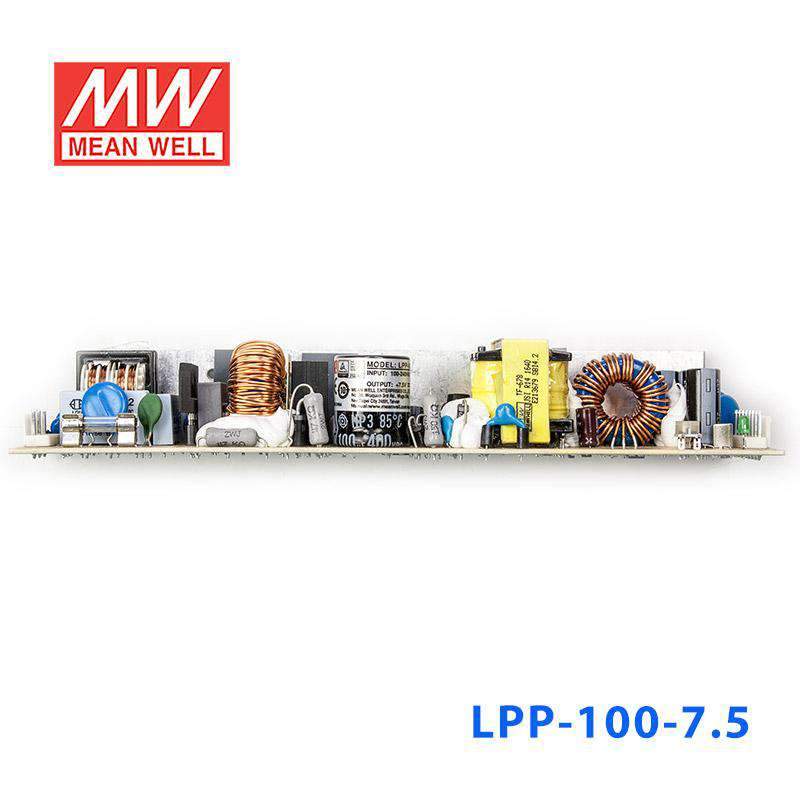

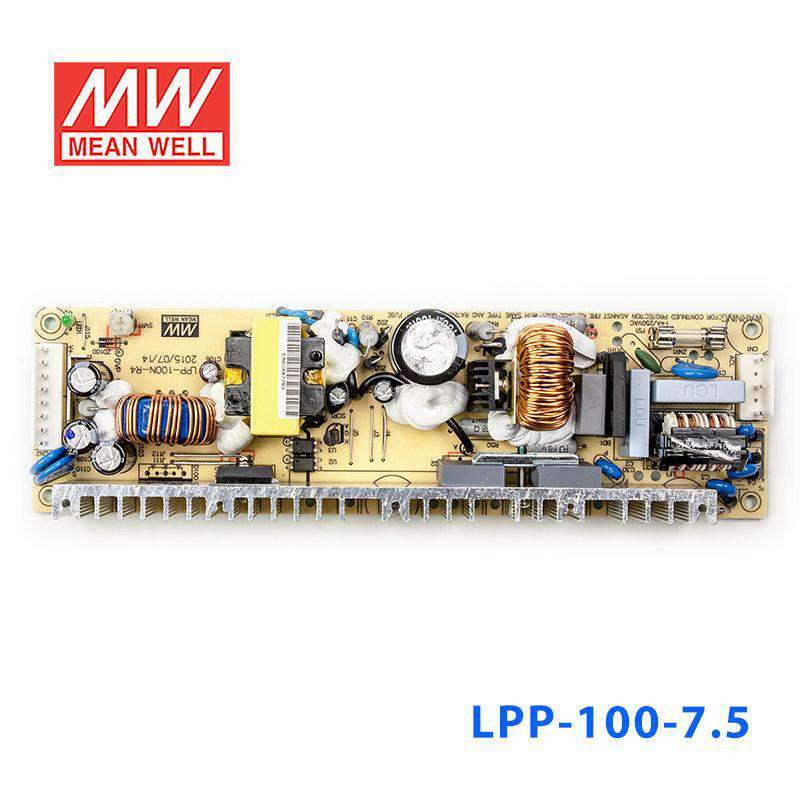

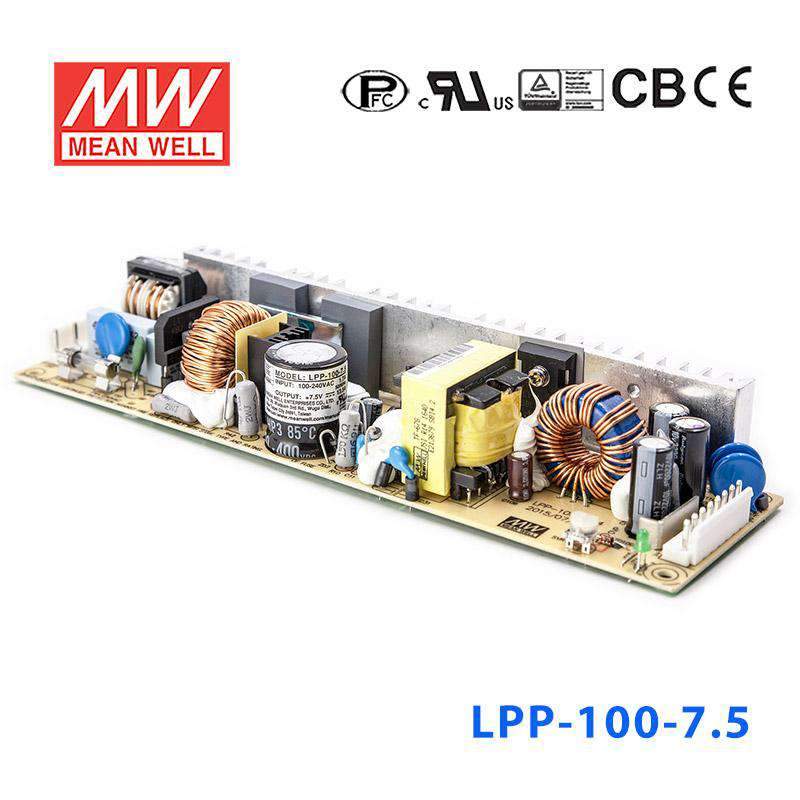

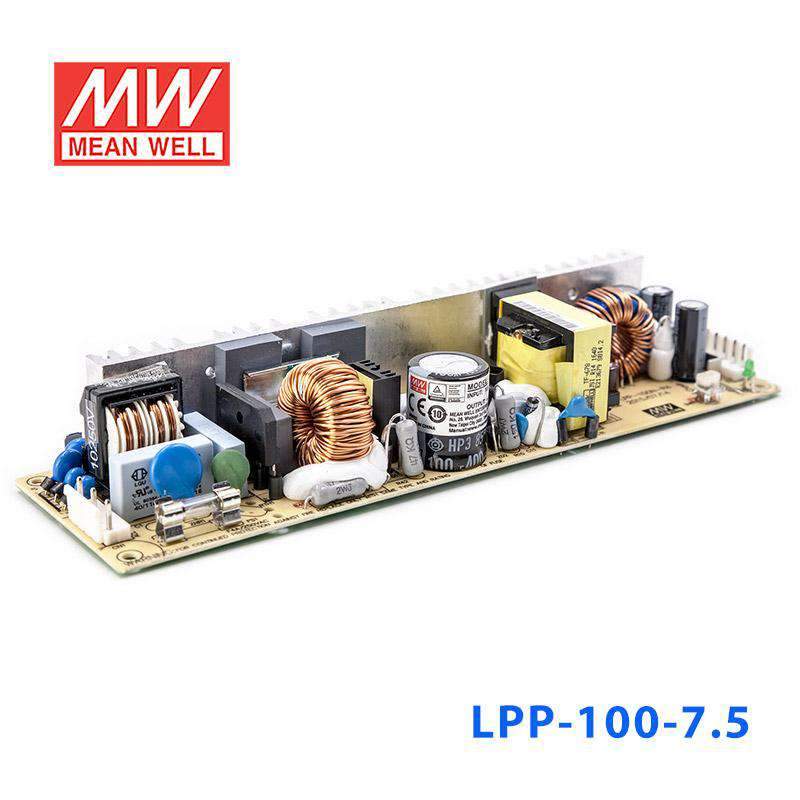

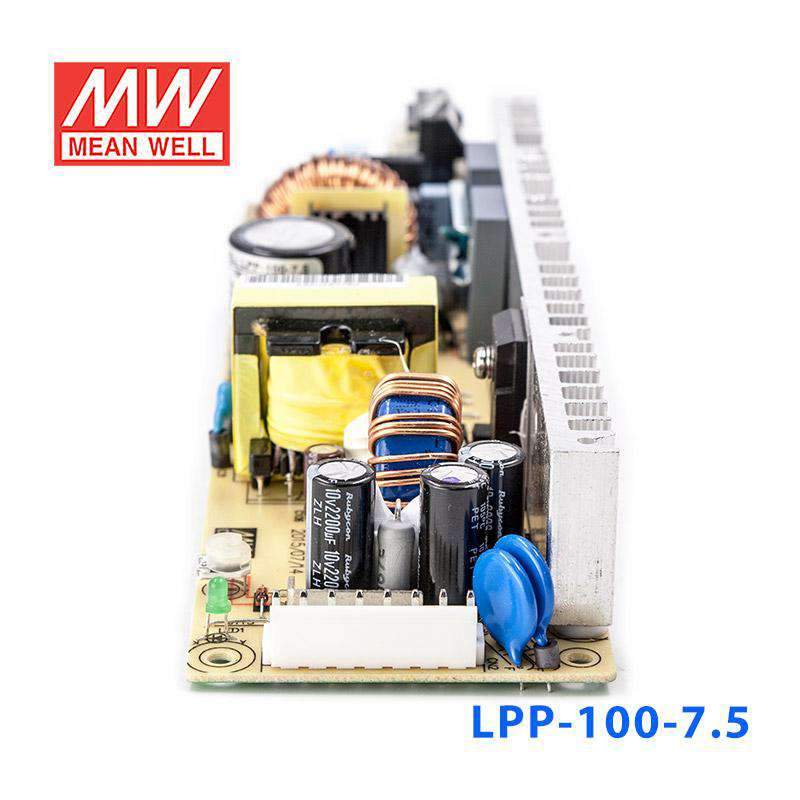

Mean Well LPP-100-7.5 Power Supply 101W 7.5V
The LPP-100 is a 100W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating101.25 Watt
-
Output Voltage7.5 Volt
-
Rated Current13.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.44 in
-
Height1.32 in
-
Weight1.12 lb
::specification::
Frequently Asked Questions
Can I use the LPP-100-7.5 for 7.5V embedded control hardware?
Yes, this model is a constant voltage power supply with a 7.5V output and up to 13.5A output current. It fits embedded or industrial electronics that specifically require a regulated 7.5V DC supply and stay within the unit's 101.25W power rating.
Is the LPP-100-7.5 suitable for 7.5V automation panels or low-voltage industrial devices?
It can be suitable for automation or industrial devices that are designed for 7.5V constant voltage input. The key match points are the 7.5V output, 13.5A maximum current, and 101.25W capacity.
Can this power supply run 7.5V IT or communications equipment?
It can power IT or communications equipment only if that equipment is rated for 7.5V constant voltage DC. This unit provides 7.5V at up to 13.5A, so the load has to stay within those output limits.
What is the difference between the LPP-100-7.5 and other LPP series models?
Within the sibling list, the LPP-100-7.5 is rated at 101.25W, 7.5V, and 13.5A. Other listed siblings are LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; and lpp-150-48 at 153.6W, 48V, 3.2A.
Can the LPP-100-7.5 be used outdoors or in washdown areas?
This product is listed as IP67, so it is intended for environments where that enclosure rating is required. Its operating temperature range is -10°C to +60°C, so the application also needs to stay within that temperature window.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPP-100 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPP-100-5 Power Supply 100W 5V | 100W | 5V | 20A | Indoor | $37.12 | View |
| Mean Well LPP-100-48 Power Supply 100W 48V | 100.8W | 48V | 2.1A | Indoor | $37.12 | View |
| Mean Well LPP-100-3.3 Power Supply 66W 3.3V | 66W | 3.3V | 20A | Indoor | $37.12 | View |
| Mean Well LPP-100-27 Power Supply 102W 27V | 102.6W | 27V | 3.8A | Indoor | $37.12 | View |
| Mean Well LPP-100-24 Power Supply 100W 24V | 100.8W | 24V | 4.2A | Indoor | $37.22 | View |
| Mean Well LPP-100-15 Power Supply 100W 15V | 100.5W | 15V | 6.7A | Indoor | $37.12 | View |
| Mean Well LPP-100-13.5 Power Supply 101W 13.5V | 101.25W | 13.5V | 7.5A | Indoor | $37.12 | View |
| Mean Well LPP-100-12 Power Supply 102W 12V | 102W | 12V | 8.5A | Indoor | $37.22 | View |
