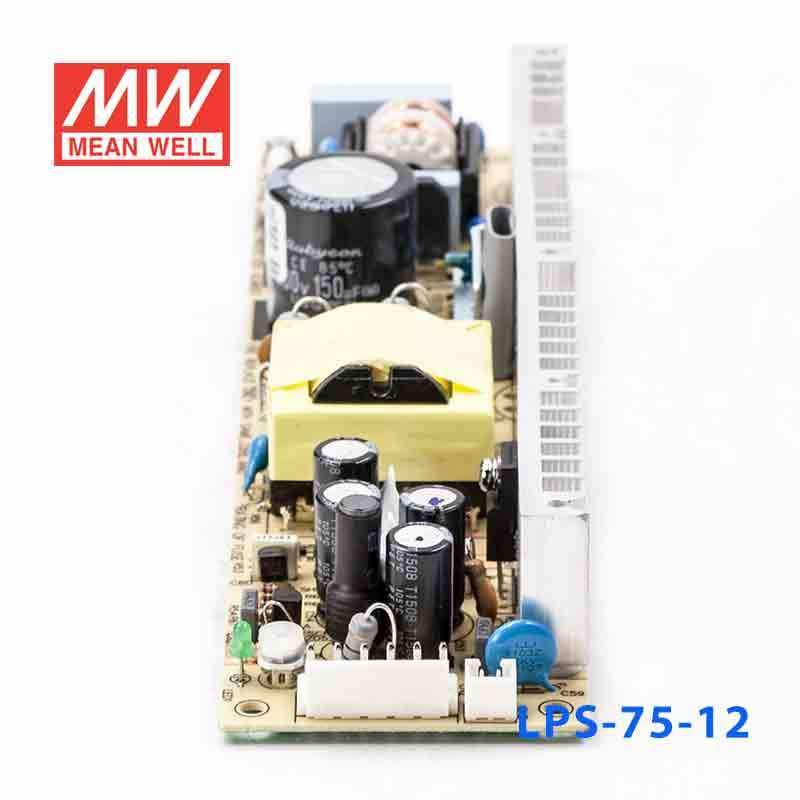

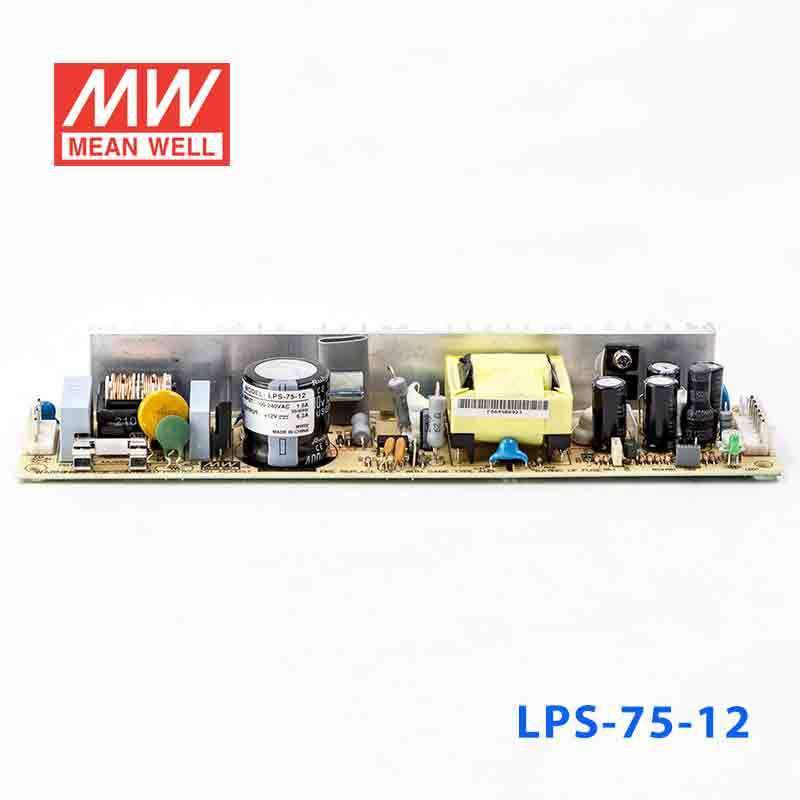

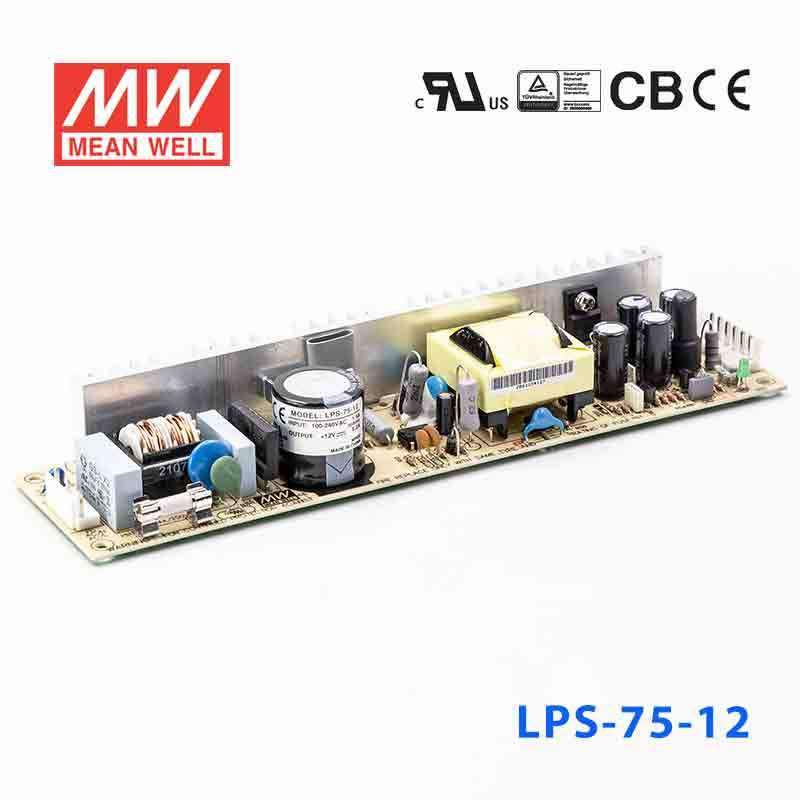

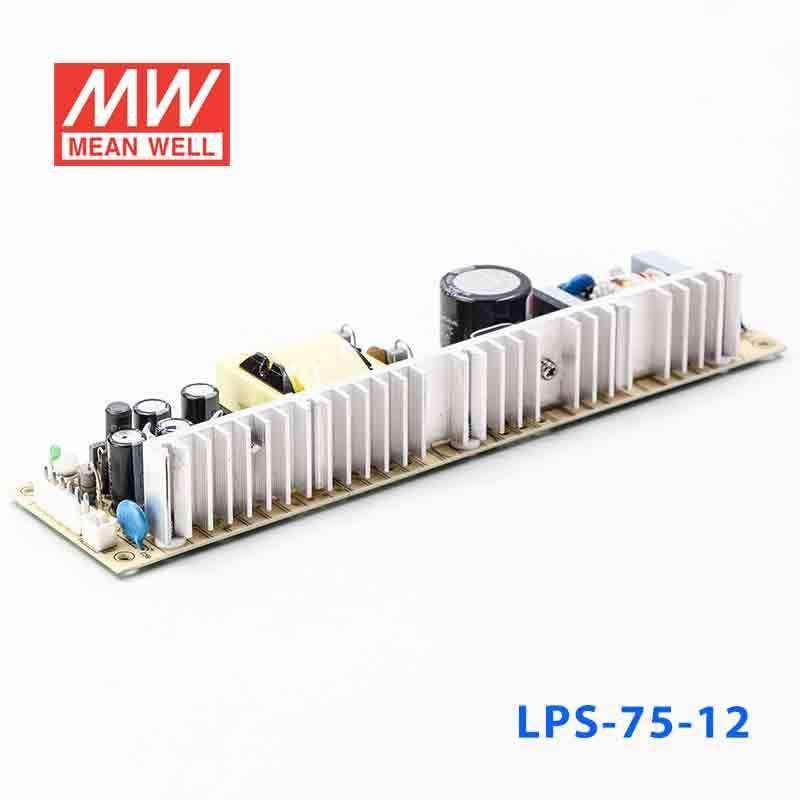

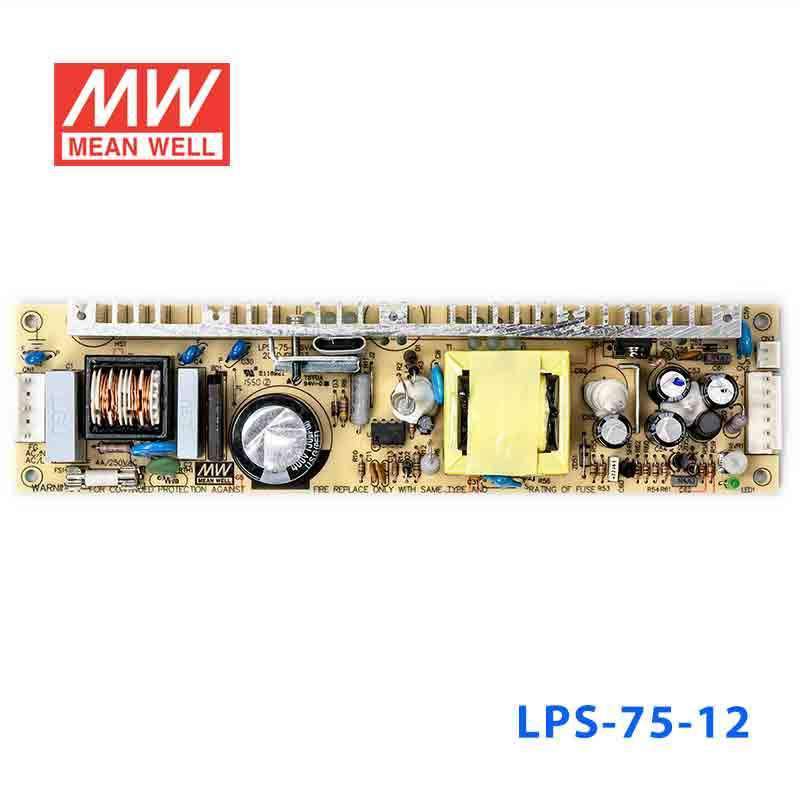

Mean Well LPS-75-12 Power Supply 74W 12V
The LPS-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating74.4 Watt
-
Output Voltage12 Volt
-
Rated Current6.2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length8.74 in
-
Width2.17 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
Can I use the LPS-75-12 for 12V PLC accessories, relays, or industrial control devices?
Yes, if the system needs constant voltage 12V DC and the total load stays within 74.4W and 6.2A. It is suited to medium-power 12V control applications rather than very low-current 12V electronics.
Is the LPS-75-12 a good fit for 12V CCTV, access control, or security hardware?
It can support 12V security and control equipment that operates from a constant voltage source and remains within 6.2A total output current. The 74.4W rating gives more headroom than a 50.4W 12V model.
Can this 12V power supply run embedded systems, HMIs, or small automation panels?
It can be used for 12V embedded or automation equipment where the combined draw does not exceed 74.4W. The input range of 90-264VAC also supports use across common AC supply ranges.
Is the LPS-75-12 suitable where enclosure space is limited but more 12V current is needed?
This version measures 222.0 x 55.0 x 30.0 mm and weighs 0.3 kg. It is still compact, but it is larger than the 195.0 x 55.0 x 23.0 mm LPS-50 models.
Can the LPS-75-12 be used in outdoor or unsealed environments?
The specs list an operating temperature range of -20°C to +70°C, but they do not list an IP rating. That means temperature capability is stated, while outdoor ingress protection is not specified in the provided data.
How does the LPS-75-12 compare with the other 12V models in the series?
The listed 12V models are LPS-50-12 at 50.4W and 4.2A, LPS-75-12 at 74.4W and 6.2A, and LPS-100-12 at 100.8W and 8.4A. The main distinction is how much output power and current each 12V version can provide.
