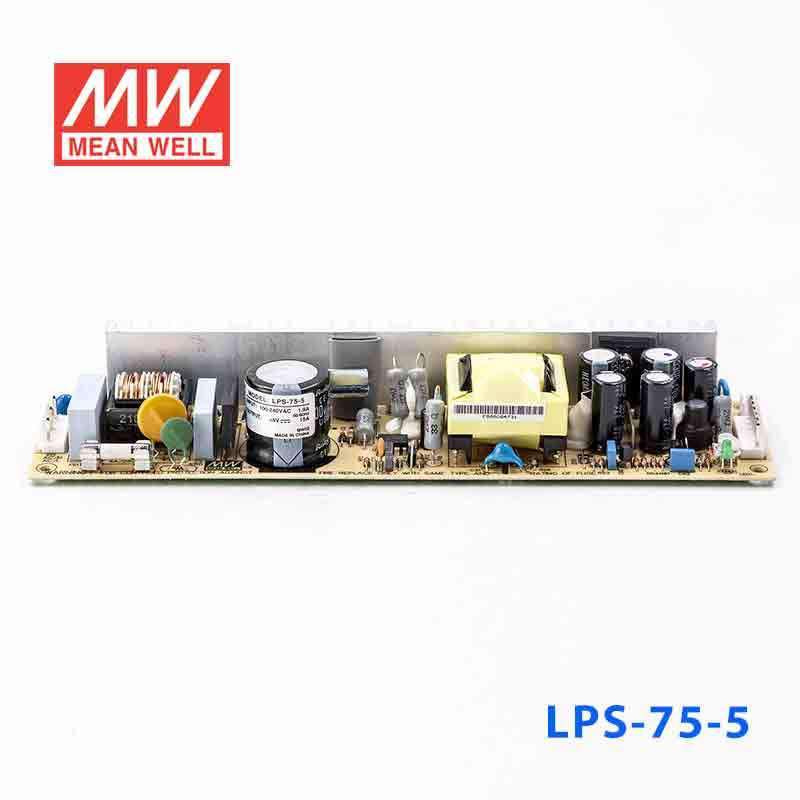

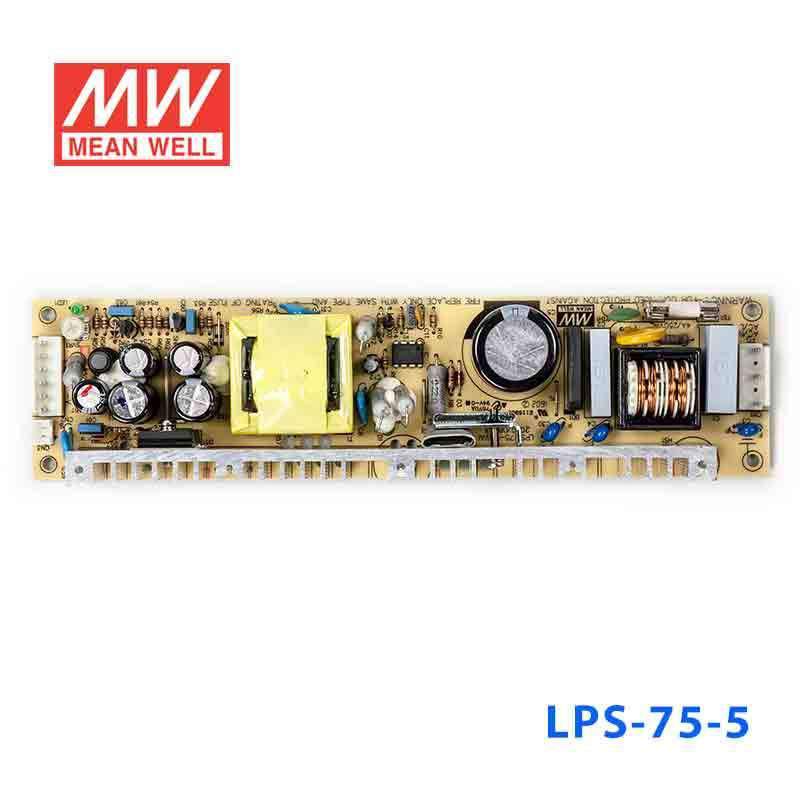

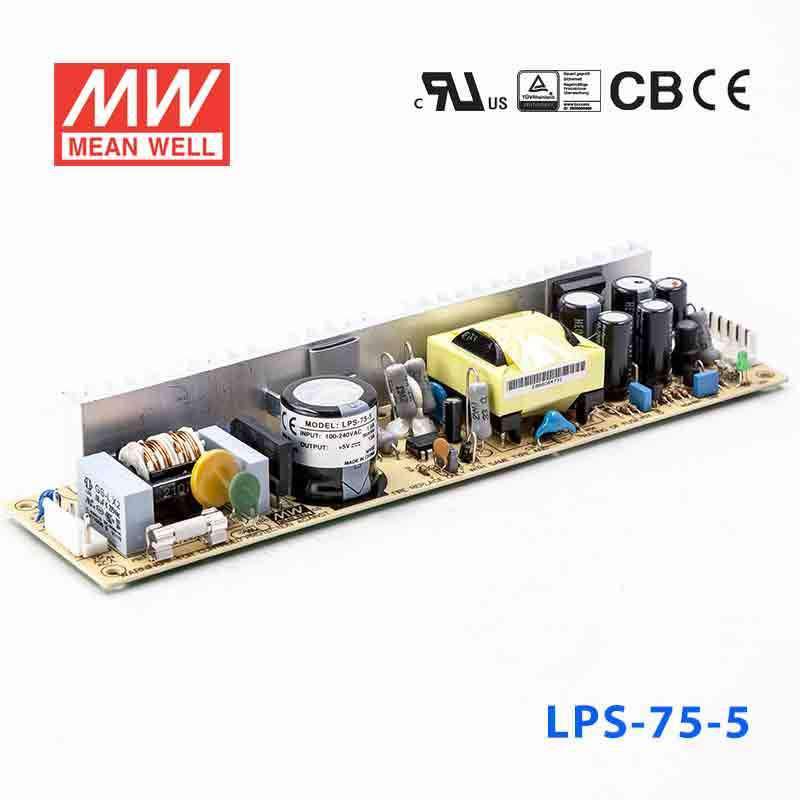

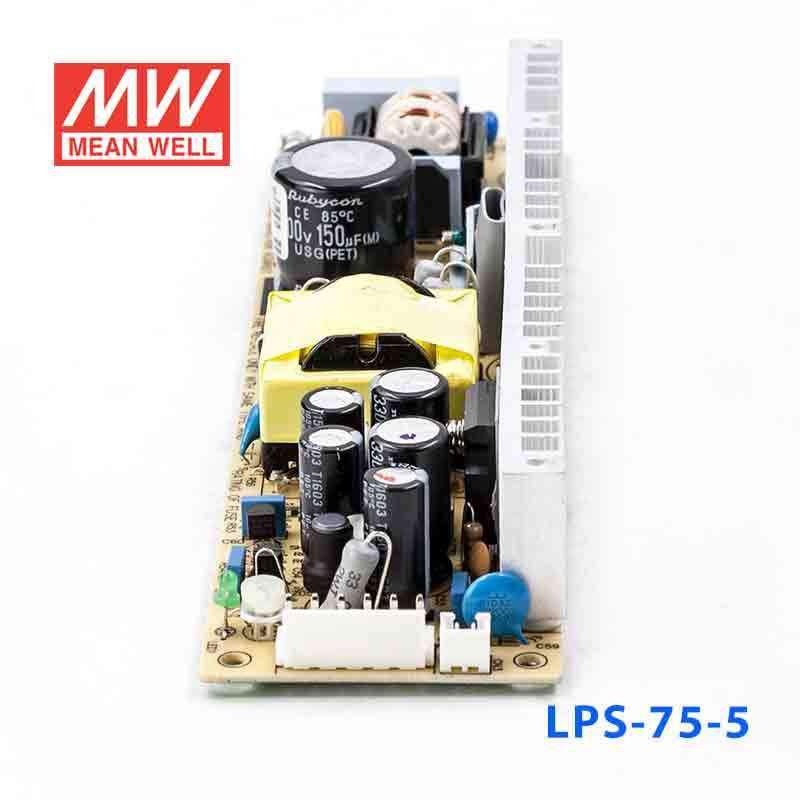

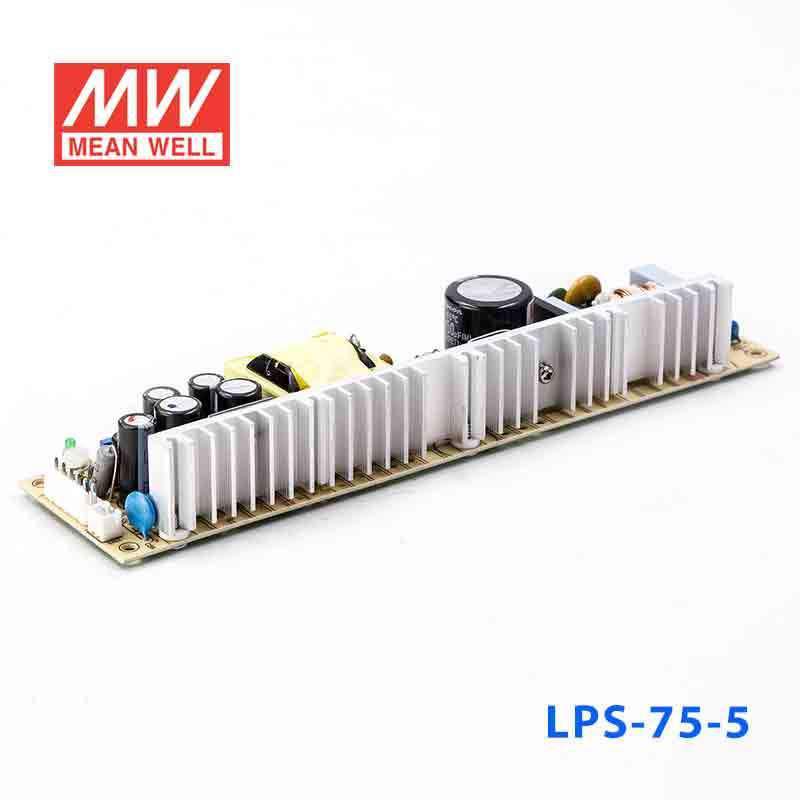

Mean Well LPS-75-5 Power Supply 75W 5V 15A
Overview
LPS-75-5 is the 5V output model of this series: rated current 15A, rated power 75W, typical efficiency 77%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- PWM control and regulated
- Small and compact size
- Built-in remote ON-OFF control
- LED indicator for power on
- 100% full load burn-in test
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 15A
- CURRENT RANGE
- 0 ~ 16.5A
- RATED POWER
- 75W
- PEAK LOAD(10sec.)Note.4
- 82.5W
- RIPPLE & NOISE (max.)Note.2
- 80mVp-p
- VOLTAGE ADJ. RANGE
- 4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±3.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±3.0%
- SETUP, RISE TIME
- 200ms, 35ms/230VAC 200ms, 35ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 60ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 77%
- AC CURRENT (Typ.)
- 1.9A/115VAC 1.1A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 18A/115VAC 36A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed
FUNCTION
- REMOTE ON/OFF
- RC+/RC- : 0 ~ 0.8V power on ; 4 ~ 10V power off
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 3180.0K hrs min. Telcordia SR-332 (Bellcore) ; 608.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 222*55*30mm (L*W*H)
- PACKING
- 0.3Kg; 48pcs/15.6Kg/1.23CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. 33.3% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the LPS-75-5 for a 5V industrial controller or SBC-based system?
Yes, if the equipment requires a constant 5V DC supply and the total current stays within 15A. With 75W available, this model is suitable for higher-current 5V control and computing loads within that limit.
Is this a good choice for powering multiple 5V embedded devices from one supply?
It can be, as long as the combined load does not exceed 15A or 75W at 5V. That makes it relevant for grouped 5V electronics in embedded or industrial assemblies.
Can the LPS-75-5 be used for 5V logic, display, or interface hardware in an equipment cabinet?
Yes, it is designed for constant 5V output and can support loads up to 15A. Its compact 222.0 x 55.0 x 30.0 mm body and 0.3 kg weight also help in space-constrained cabinets.
Is this 5V power supply useful when the host system needs to switch the supply on and off remotely?
Yes, this model includes built-in remote ON-OFF control. That can be useful in embedded or automation equipment that needs the 5V supply controlled by another subsystem.
Is the LPS-75-5 intended for indoor or outdoor use?
The stated operating range is -20 degrees C to +70 degrees C, but no IP rating appears in the provided specs. Without an IP rating, it is better considered for indoor use or protected enclosure mounting instead of exposed outdoor environments.
