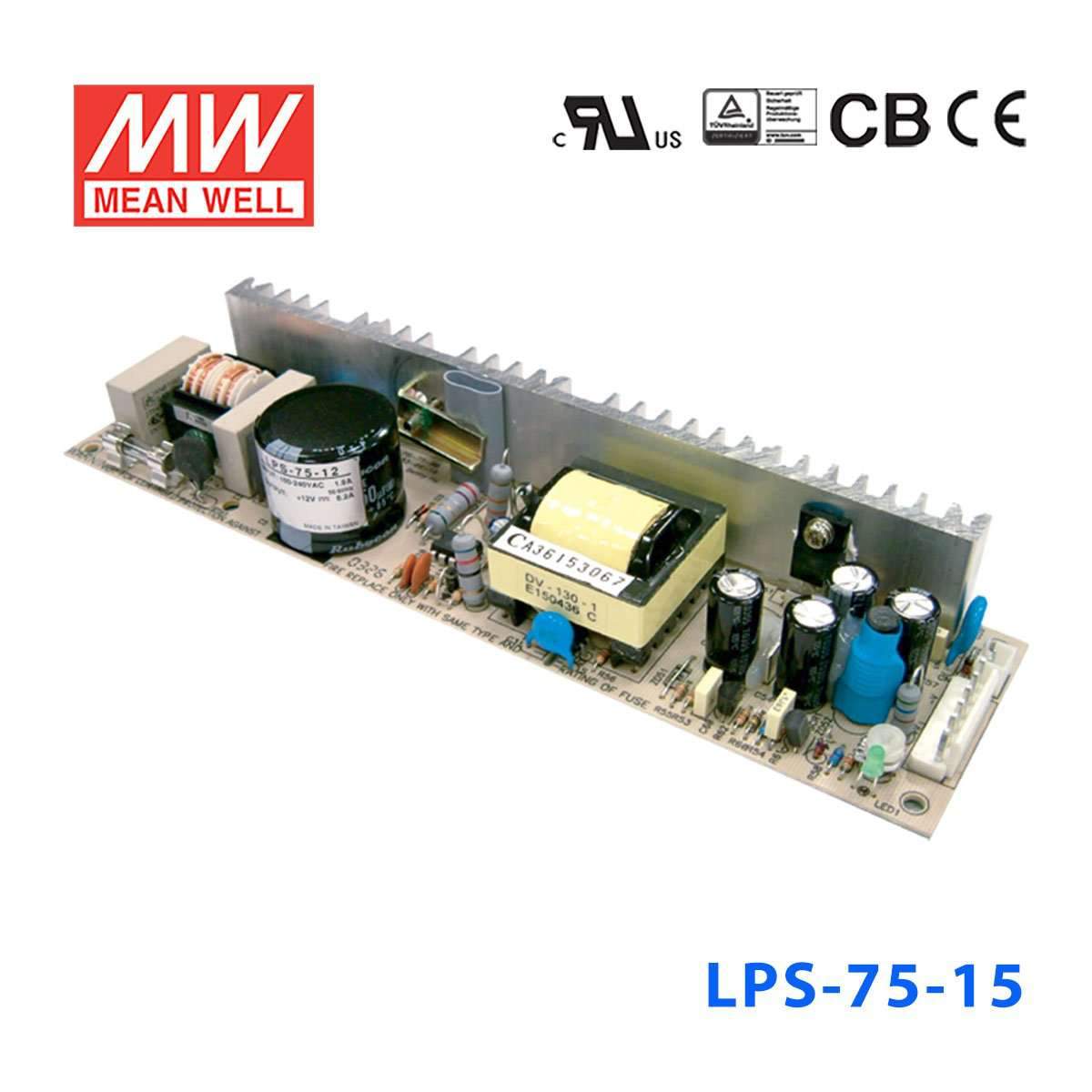

Mean Well LPS-75-15 Power Supply 75W 15V 5A
Overview
LPS-75-15 is the 15V output model of this series: rated current 5A, rated power 75W, typical efficiency 81%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- PWM control and regulated
- Small and compact size
- Built-in remote ON-OFF control
- LED indicator for power on
- 100% full load burn-in test
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- RATED CURRENT
- 5A
- CURRENT RANGE
- 0 ~ 5.5A
- RATED POWER
- 75W
- PEAK LOAD(10sec.)Note.4
- 82.5W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ADJ. RANGE
- 13.5 ~ 16.5V
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIME
- 200ms, 35ms/230VAC 200ms, 35ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 60ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 81%
- AC CURRENT (Typ.)
- 1.9A/115VAC 1.1A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 18A/115VAC 36A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 17.25 ~ 20.25V Protection type : Hiccup mode, recovers automatically after fault condition is removed
FUNCTION
- REMOTE ON/OFF
- RC+/RC- : 0 ~ 0.8V power on ; 4 ~ 10V power off
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 3180.0K hrs min. Telcordia SR-332 (Bellcore) ; 608.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 222*55*30mm (L*W*H)
- PACKING
- 0.3Kg; 48pcs/15.6Kg/1.23CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. 33.3% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the LPS-75-15 to power a 15V industrial control device?
Yes, if the device requires a constant 15V DC supply and draws no more than 5A. This model is rated for 75W total output, so it fits 15V control loads that stay within those limits.
Is this 15V power supply suitable for embedded test benches or lab fixtures?
It can be a fit for embedded fixtures that need a constant 15V output with up to 5A available. Its 222.0 x 55.0 x 30.0 mm size and 0.3 kg weight also make it practical where a compact internal supply is needed.
Can the LPS-75-15 be used in automation equipment with remote power control?
Yes, this model includes built-in remote ON-OFF control, which is useful in automation systems that need controlled power switching. The output remains a constant 15V with up to 75W and 5A available.
Is the LPS-75-15 appropriate for indoor or outdoor use?
The provided specs list an operating temperature range of -20 degrees C to +70 degrees C, but no IP rating is stated. Based on that, it is better matched to indoor or protected enclosure use rather than exposed outdoor conditions.
How does the LPS-75-15 compare with other LPS series models?
Within the LPS-75 series, the other options are LPS-75-3.3 at 49.5W, 3.3V, 15A; LPS-75-5 at 75W, 5V, 15A; LPS-75-12 at 74.4W, 12V, 6.2A; LPS-75-24 at 76.8W, 24V, 3.2A; and LPS-75-48 at 75W, 48V, 1.56A. All share the same 222 x 55 x 30 mm size and 90-264VAC input. The LPS-75-15 itself is 75W, 15V, and 5A.
