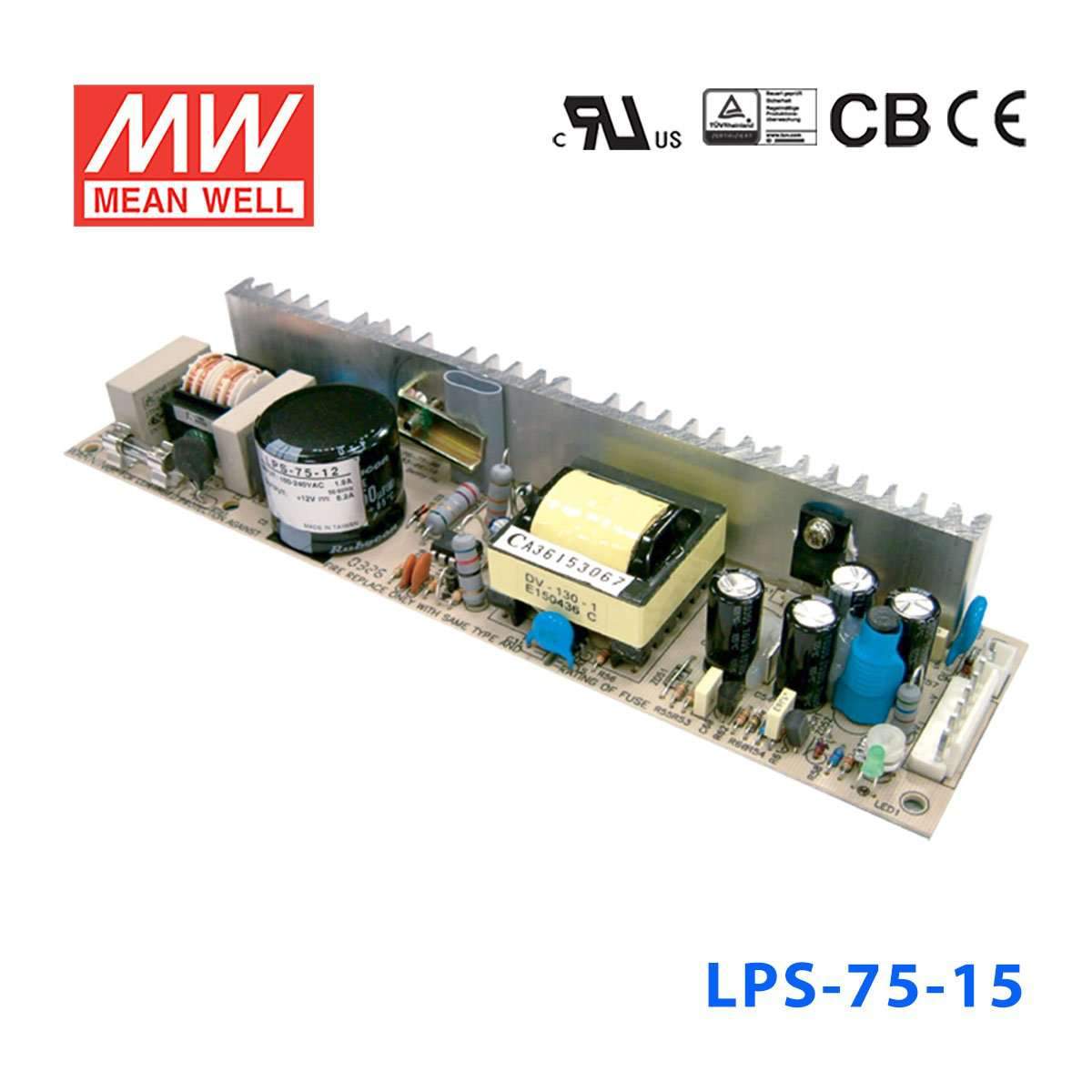

Mean Well LPS-75-15 Power Supply 75W 15V
The LPS-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length8.74 in
-
Width2.17 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
Can I use the LPS-75-15 to power a 15V industrial control device?
Yes, if the device requires a constant 15V DC supply and draws no more than 5A. This model is rated for 75W total output, so it fits 15V control loads that stay within those limits.
Is this 15V power supply suitable for embedded test benches or lab fixtures?
It can be a fit for embedded fixtures that need a constant 15V output with up to 5A available. Its 222.0 x 55.0 x 30.0 mm size and 0.3 kg weight also make it practical where a compact internal supply is needed.
Can the LPS-75-15 be used in automation equipment with remote power control?
Yes, this model includes built-in remote ON-OFF control, which is useful in automation systems that need controlled power switching. The output remains a constant 15V with up to 75W and 5A available.
Is the LPS-75-15 appropriate for indoor or outdoor use?
The provided specs list an operating temperature range of -20 degrees C to +70 degrees C, but no IP rating is stated. Based on that, it is better matched to indoor or protected enclosure use rather than exposed outdoor conditions.
How does the LPS-75-15 compare with other LPS series models?
Within the listed siblings, the options are LPS-100-12 at 100.8W, 12V, 8.4A; LPS-100-13.5 at 101.25W, 13.5V, 7.5A; LPS-100-15 at 100.5W, 15V, 6.7A; LPS-100-24 at 100.8W, 24V, 4.2A; LPS-100-27 at 102.6W, 27V, 3.8A; LPS-100-3.3 at 66W, 3.3V, 20A; LPS-100-48 at 100.8W, 48V, 2.1A; LPS-100-5 at 100W, 5V, 20A; LPS-100-7.5 at 99.75W, 7.5V, 13.3A; LPS-50-12 at 50.4W, 12V, 4.2A; LPS-50-15 at 51W, 15V, 3.4A; LPS-50-24 at 50.4W, 24V, 2.1A; LPS-50-3.3 at 33W, 3.3V, 10A; LPS-50-48 at 52.8W, 48V, 1.1A; LPS-50-5 at 50W, 5V, 10A; LPS-75-12 at 74.4W, 12V, 6.2A; LPS-75-24 at 76.8W, 24V, 3.2A; LPS-75-3.3 at 49.5W, 3.3V, 15A; LPS-75-48 at 75W, 48V, 1.56A; and LPS-75-5 at 75W, 5V, 15A. The LPS-75-15 itself is 75W, 15V, and 5A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPS-75 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPS-75-5 Power Supply 75W 5V | 75W | 5V | 15A | Indoor | $20.75 | View |
| Mean Well LPS-75-48 Power Supply 75W 48V | 75W | 48V | 1.56A | Indoor | $20.75 | View |
| Mean Well LPS-75-3.3 Power Supply 49W 3.3V | 49.5W | 3.3V | 15A | Indoor | $20.75 | View |
| Mean Well LPS-75-24 Power Supply 76W 24V | 76.8W | 24V | 3.2A | Indoor | $20.75 | View |
| Mean Well LPS-75-12 Power Supply 74W 12V | 74.4W | 12V | 6.2A | Indoor | $20.75 | View |
