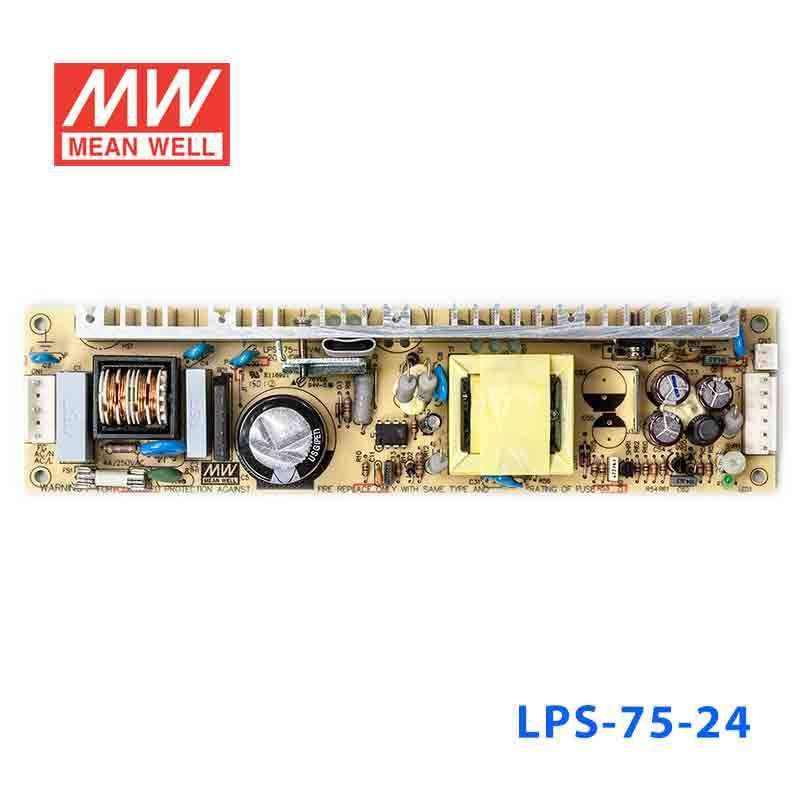

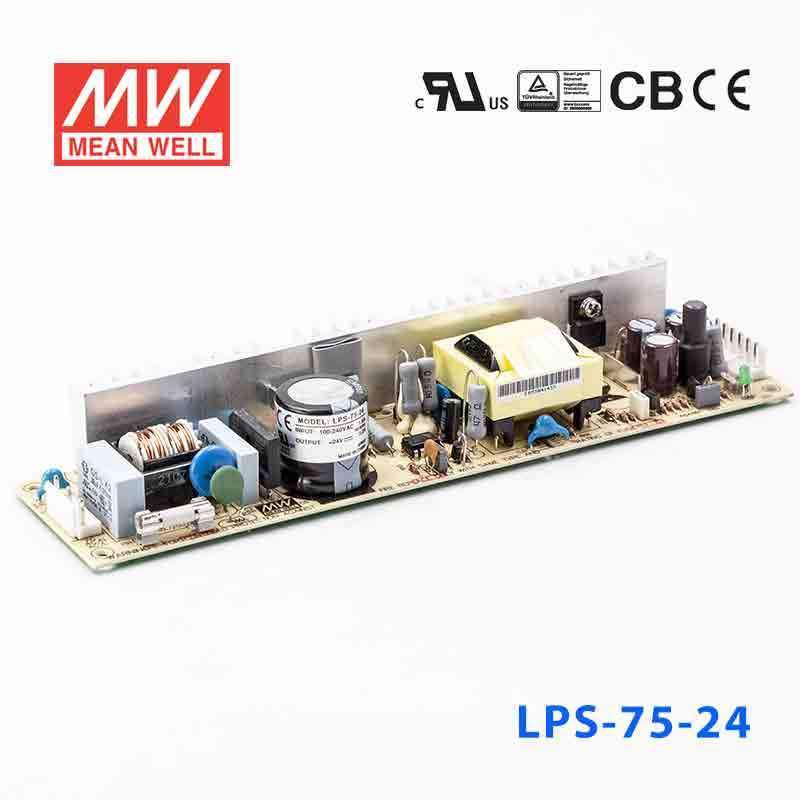

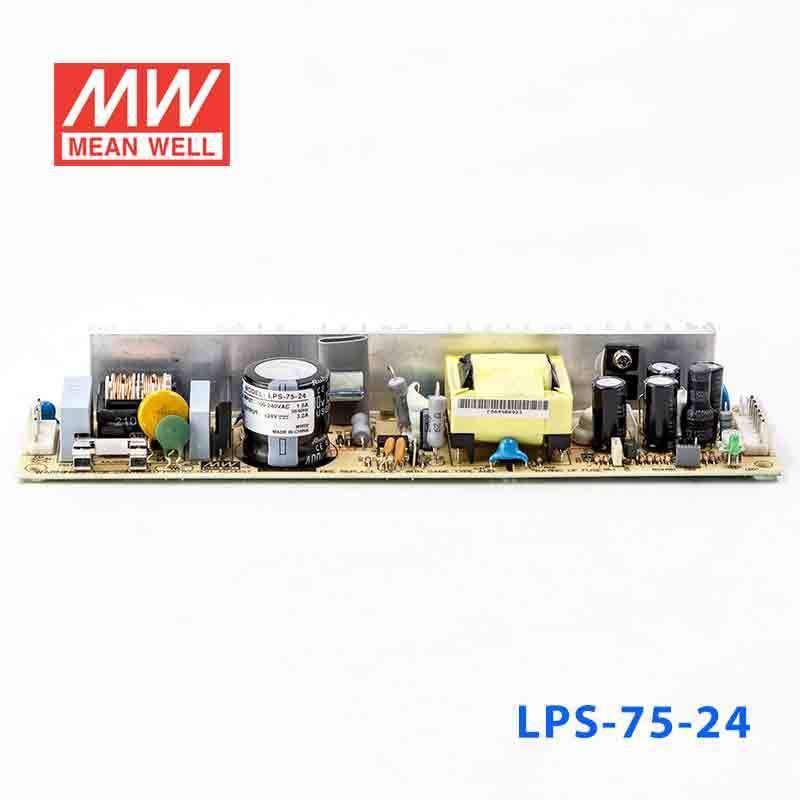

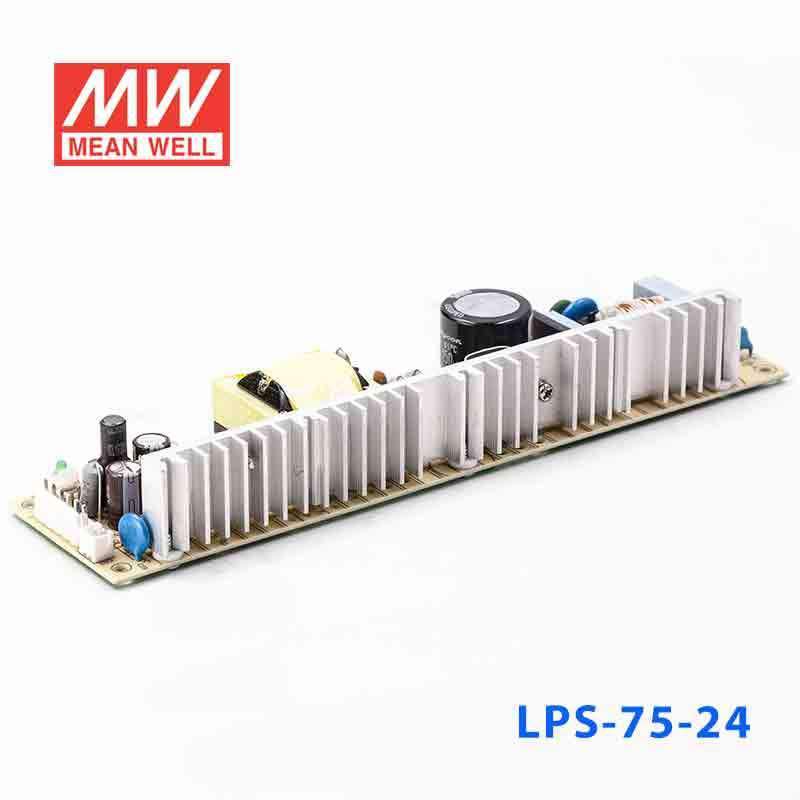

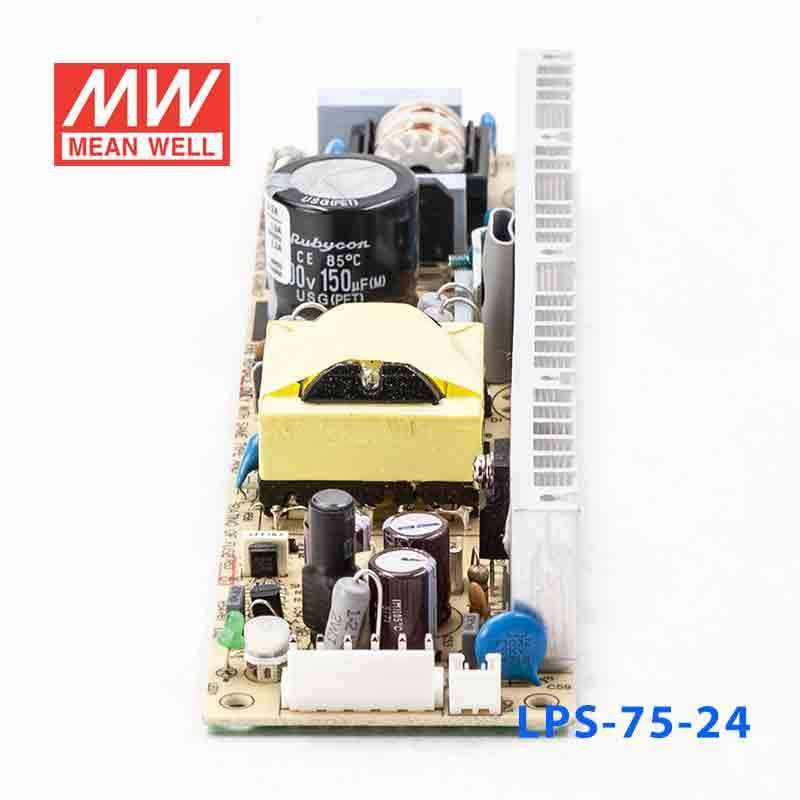

Mean Well LPS-75-24 Power Supply 76W 24V
The LPS-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating76.8 Watt
-
Output Voltage24 Volt
-
Rated Current3.2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length8.74 in
-
Width2.17 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
Can I use the LPS-75-24 for a 24V PLC, HMI, or automation controller?
Yes, if the equipment needs a constant 24V DC supply and the total load stays within 3.2A. This unit is rated for 76.8W, which suits many 24V control and automation devices within that range.
Is this a good fit for 24V sensors, relays, and control accessories in one enclosure?
It can be used where multiple 24V DC loads share a supply, as long as their combined draw does not exceed 3.2A or 76.8W. The wide 90-264VAC input also supports use across common AC power environments.
Can the LPS-75-24 power a compact industrial panel that needs low-profile hardware?
Yes, this model is intended for compact internal power applications with a 222.0 x 55.0 x 30.0 mm form factor and 0.3 kg weight. It provides constant 24V output up to 3.2A for panel-based equipment that fits within 76.8W.
Can I use this 24V supply in equipment that needs remote power enable control?
Yes, the LPS-75-24 includes built-in remote ON-OFF control. That can be useful in automation or embedded systems where the 24V supply needs to be switched under system control.
Is the LPS-75-24 suitable for outdoor installations?
The temperature rating is -20 degrees C to +70 degrees C, but no IP rating is provided in the listed specs. That means it is better treated as a supply for indoor or protected enclosure environments rather than direct outdoor exposure.
