Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

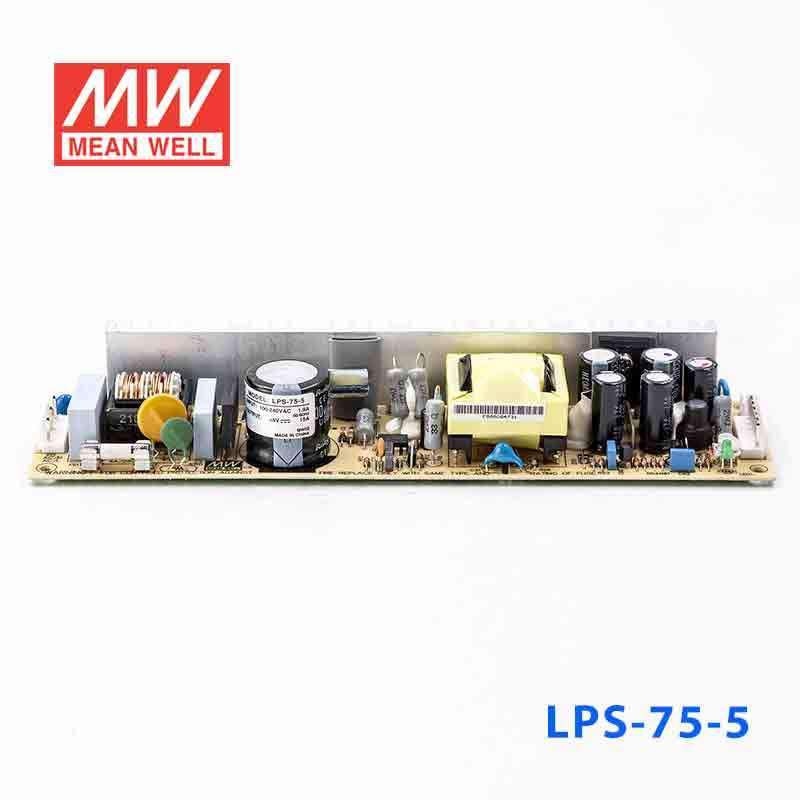

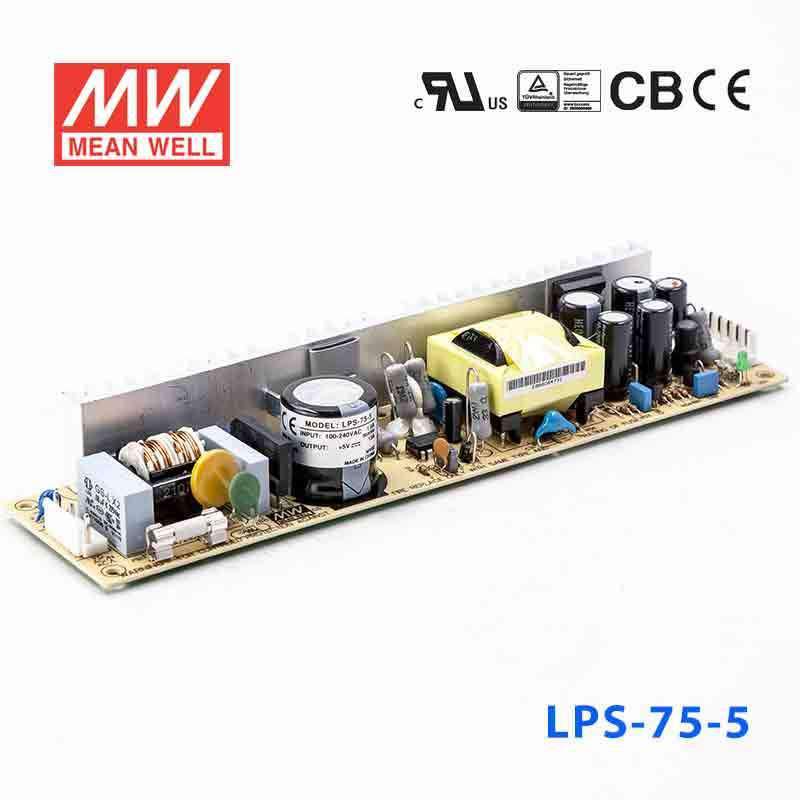

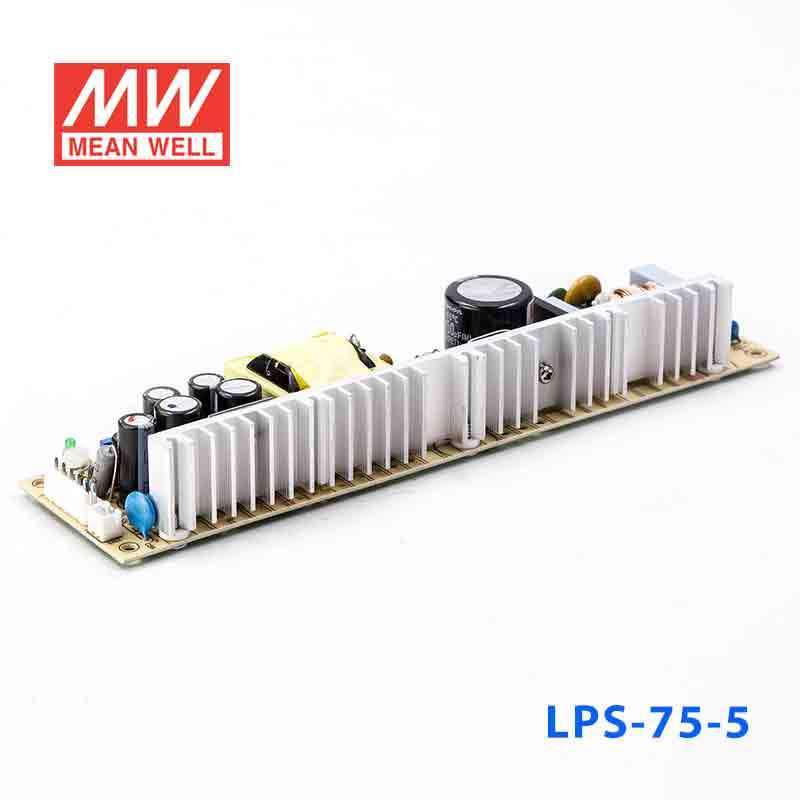

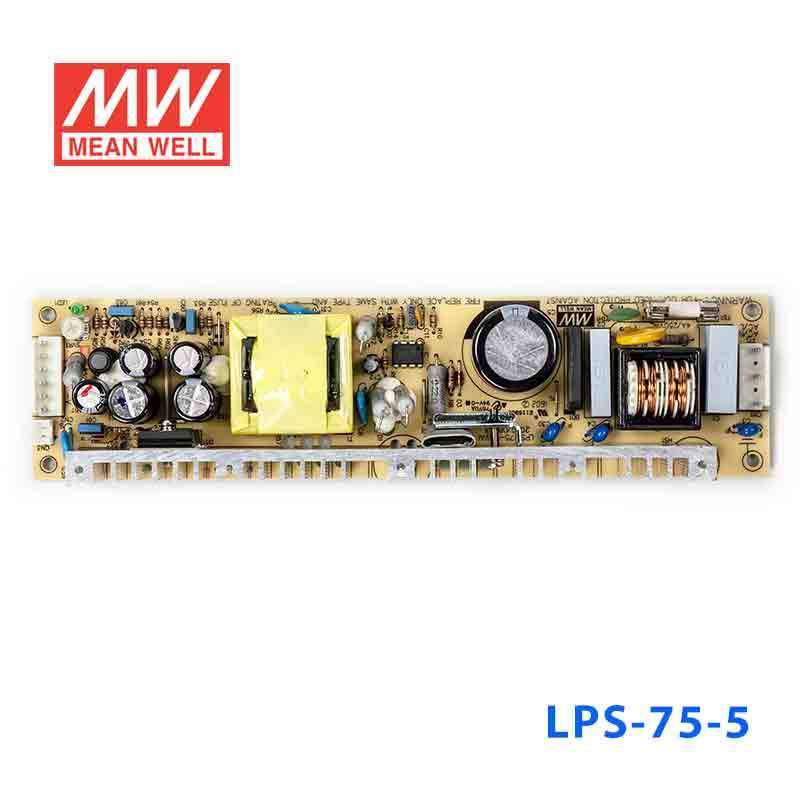

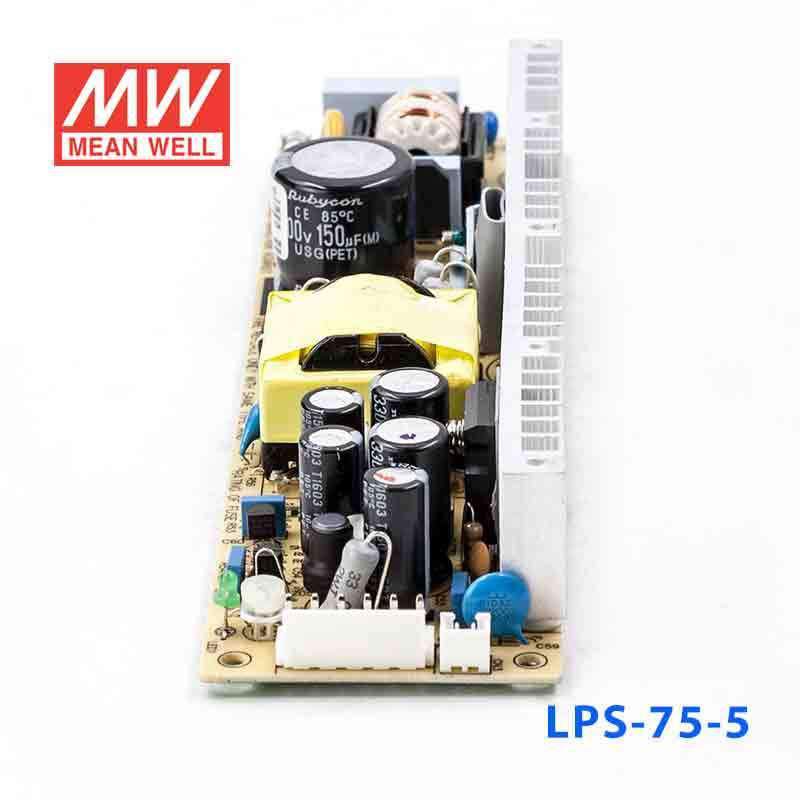

Mean Well LPS-75-5 Power Supply 75W 5V
The LPS-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating75 Watt
-
Output Voltage5 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length8.74 in
-
Width2.17 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
Can I use the LPS-75-5 for a 5V industrial controller or SBC-based system?
Yes, if the equipment requires a constant 5V DC supply and the total current stays within 15A. With 75W available, this model is suitable for higher-current 5V control and computing loads within that limit.
Is this a good choice for powering multiple 5V embedded devices from one supply?
It can be, as long as the combined load does not exceed 15A or 75W at 5V. That makes it relevant for grouped 5V electronics in embedded or industrial assemblies.
Can the LPS-75-5 be used for 5V logic, display, or interface hardware in an equipment cabinet?
Yes, it is designed for constant 5V output and can support loads up to 15A. Its compact 222.0 x 55.0 x 30.0 mm body and 0.3 kg weight also help in space-constrained cabinets.
Is this 5V power supply useful when the host system needs to switch the supply on and off remotely?
Yes, this model includes built-in remote ON-OFF control. That can be useful in embedded or automation equipment that needs the 5V supply controlled by another subsystem.
Is the LPS-75-5 intended for indoor or outdoor use?
The stated operating range is -20 degrees C to +70 degrees C, but no IP rating appears in the provided specs. Without an IP rating, it is better considered for indoor use or protected enclosure mounting instead of exposed outdoor environments.
